10.2.9 Installing the Battery Temperature Sensor
This topic describes how to install the battery temperature sensor.
Context
l The battery temperature sensor is used to sample the ambient temperature of the battery
set.
l Install the temperature probe at a position that best represents the temperature in the battery
compartment, and do not connect the temperature probe to other heating devices.
Precaution
Install the temperature probe at a position that best represents the temperature in the battery
compartment, and do not connect the temperature probe to other heating devices.
Procedure
Step 1 Connect the connector of the cable to the BAT-WE port of the sensor transfer box, as shown in
Figure 10-31.
Step 2 The other end is the temperature probe with a ring terminal, which is bundled with the negative
lead of a single battery, as shown in Figure 10-31.

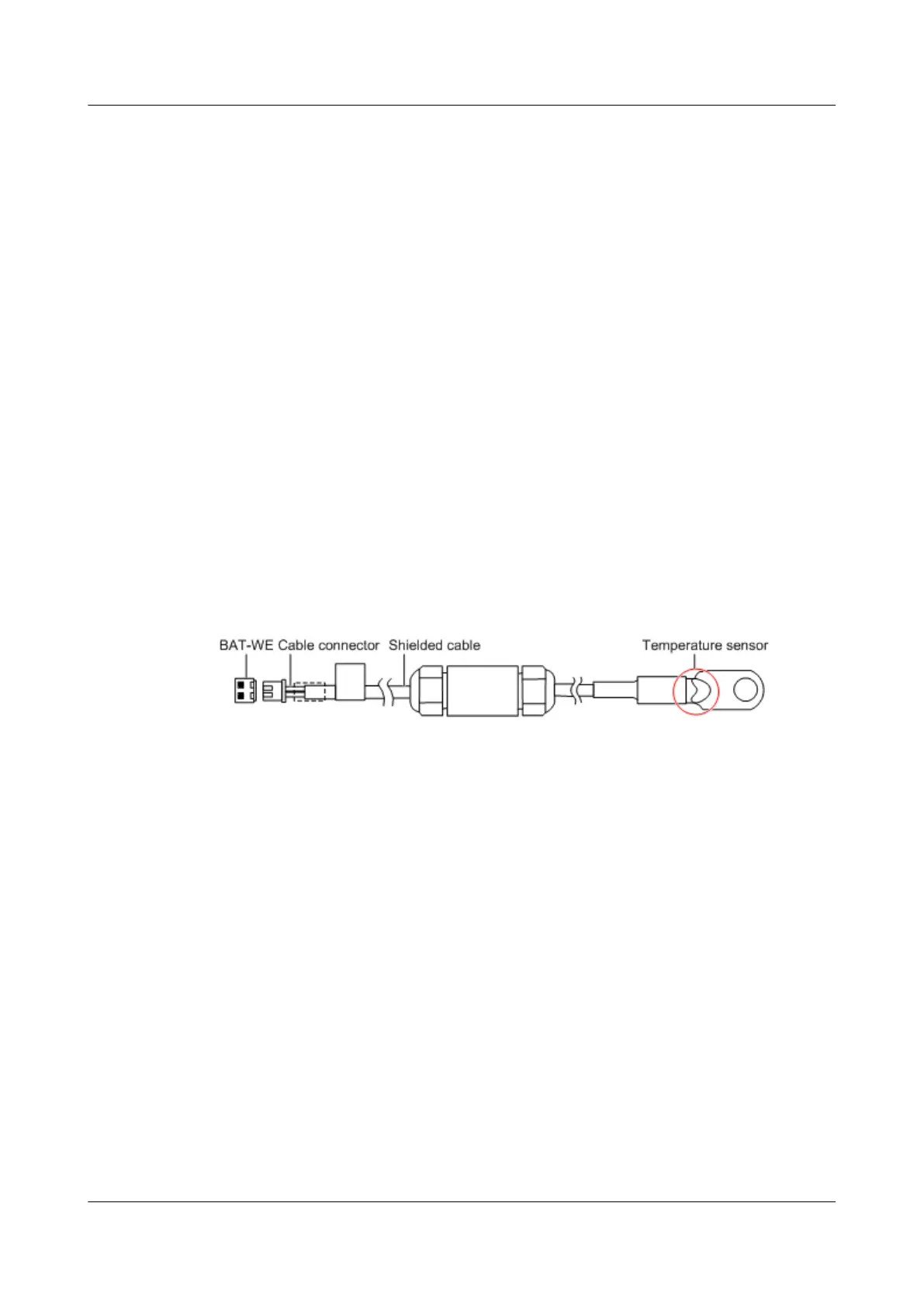

Figure 10-31 Connection of the battery temperature sensor
----End
