Huawei UA5000 - Connections of the Smoke Sensor

Dimension Specification
Fixing hole spacing 52mm-66mm
Procedure
Step 1 Use two M4 screws and fixing holes A and B to fasten the matched base to the cabinet component.

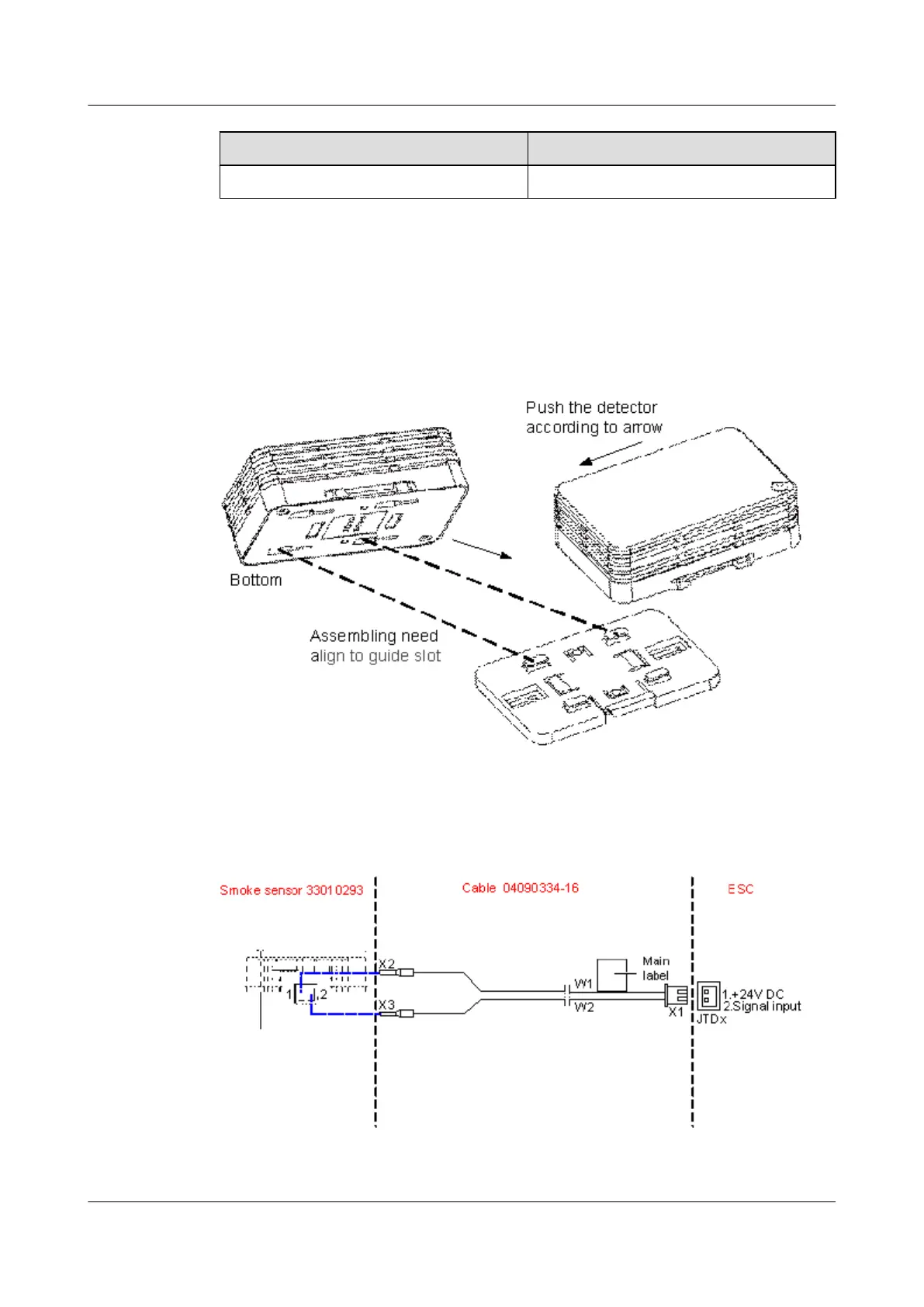

Step 2 2. Install the smoke sensor to the matched base, as shown in Figure 10-23
Figure 10-23 Installing the smoke sensor
Step 3 Connect the sensor cable. Figure 10-24 shows the connections of the smoke sensor.
Figure 10-24 Connections of the smoke sensor
UA5000 Universal Access Unit
Environment Monitoring 10 Sensors
Issue 01 (2012-08-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
198
