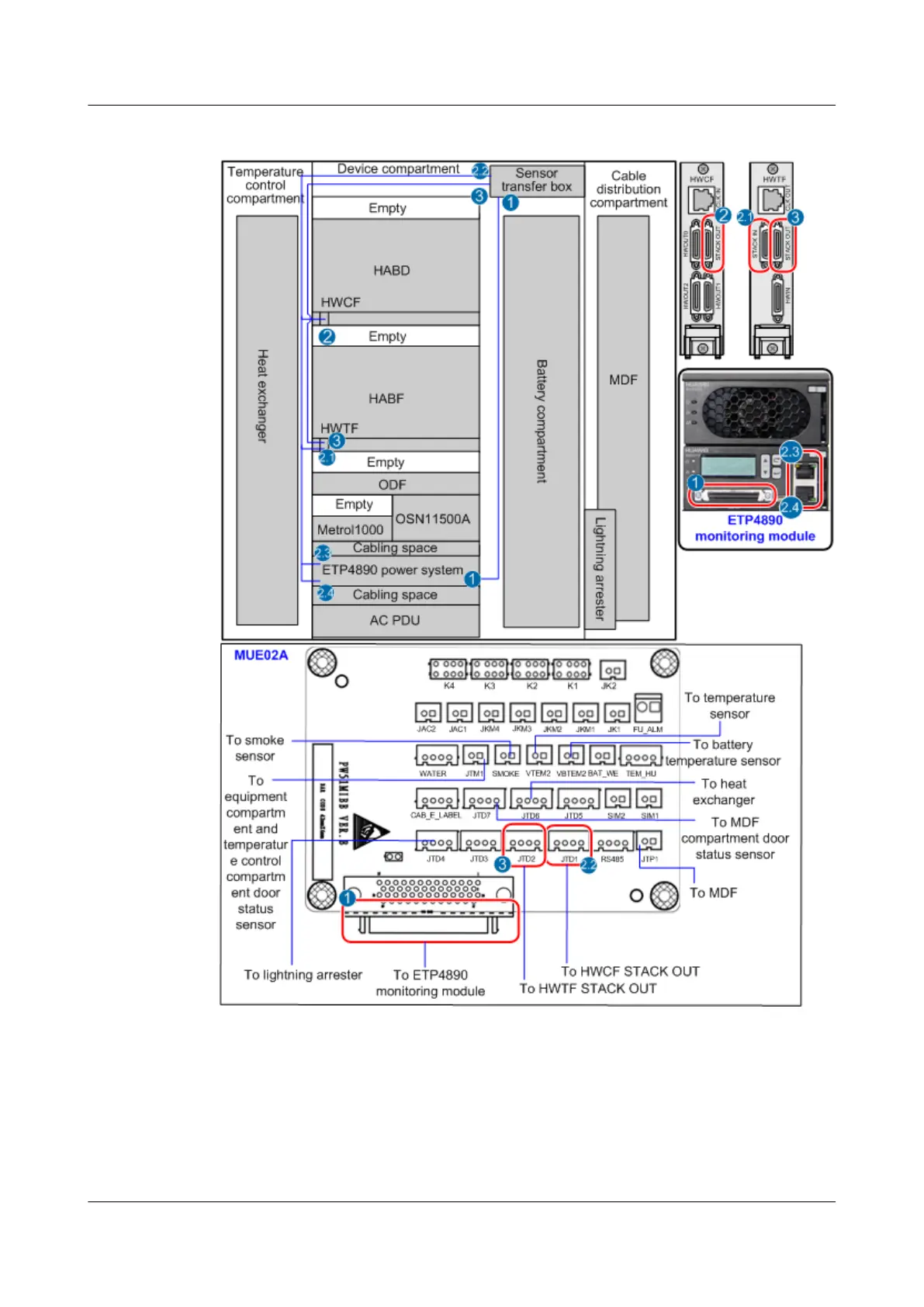

Figure 8-8 Connections of environment monitoring cables in the F01D500 cabinet
UA5000 Universal Access Unit
Environment Monitoring 8 ETP4890 Monitoring Solution
Issue 01 (2012-08-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
134
