whether the connections from the sensors to the sensor transfer box, from the sensor transfer
box to the SMU01B, and from the SMU01B to the control system are correct.

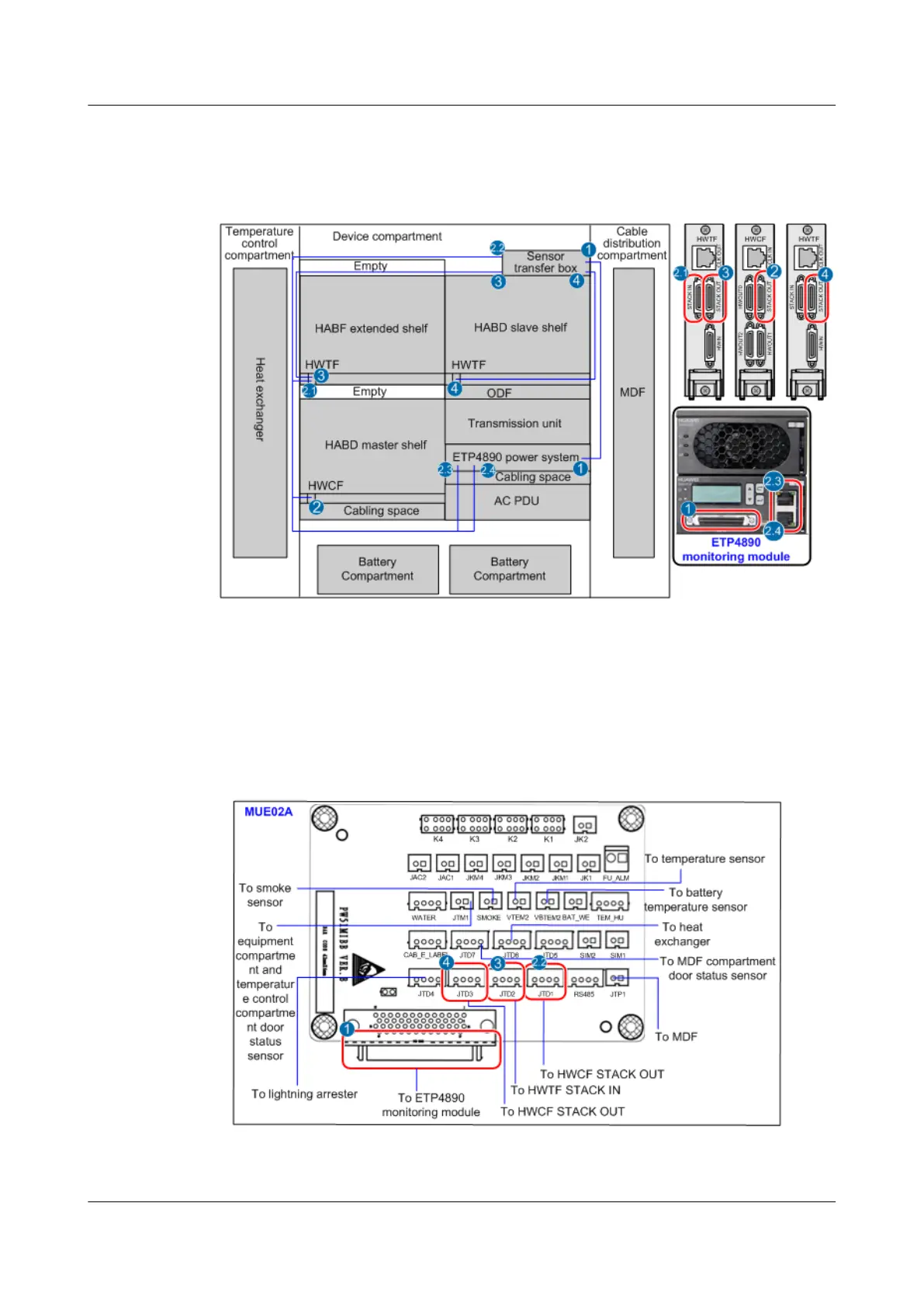

Figure 8-9 Connections of environment monitoring cables in the F01D1000 cabinet
UA5000 Universal Access Unit
Environment Monitoring 8 ETP4890 Monitoring Solution
