Step 6 Combine the top air-ow cabinet with the UPS cabinet.
● Top air-ow cabinet without a PC panel

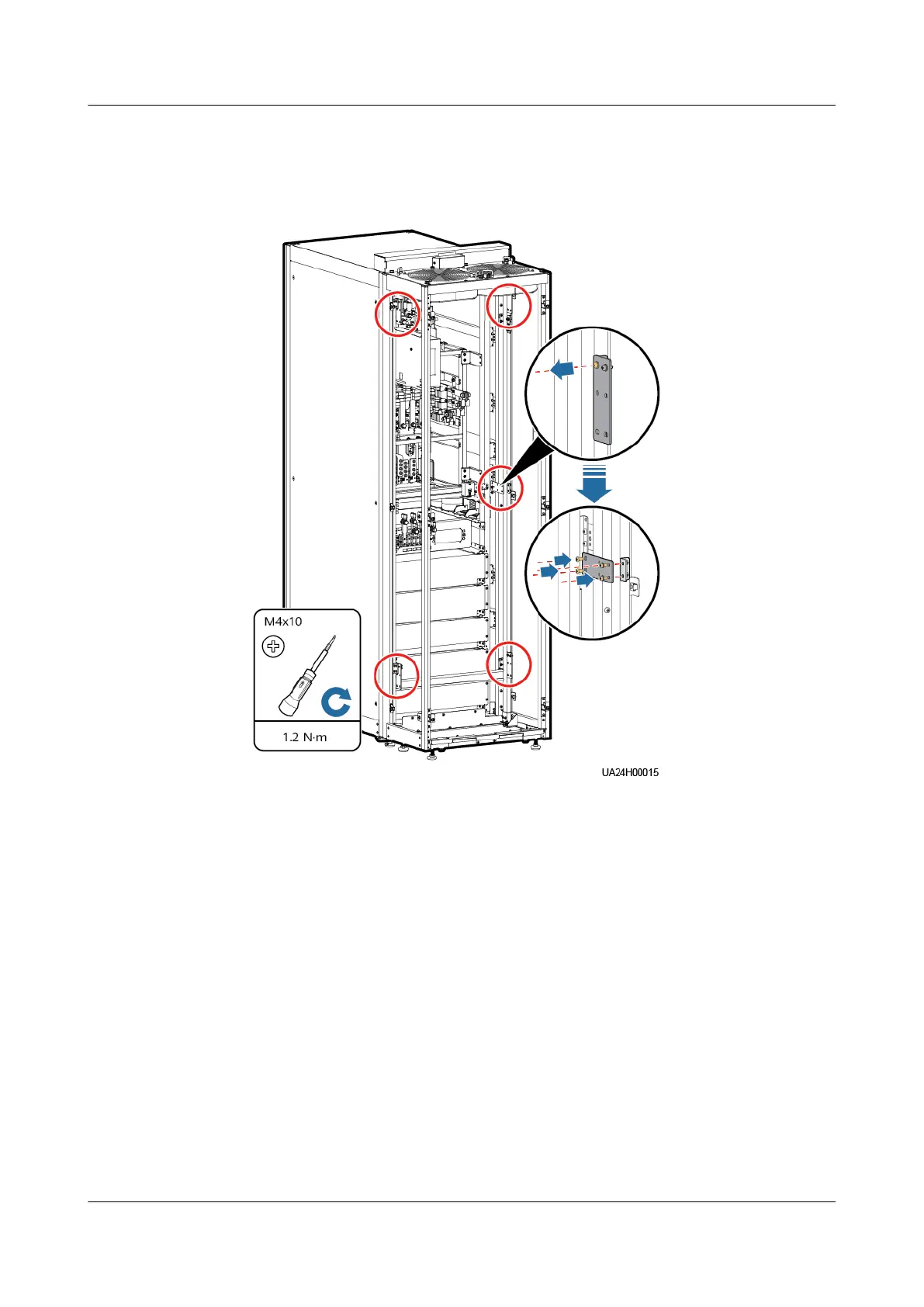

Figure 3-4 Connecting connection plates
● Top air-ow cabinet with a PC panel
If the top air-ow cabinet with a PC panel needs to be combined with the
UPS cabinet, remove the highest connection plate from the top
air-ow
cabinet.
UPS5000 Top Air-ow Cabinet
User Manual 3 Product Installation
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 12
