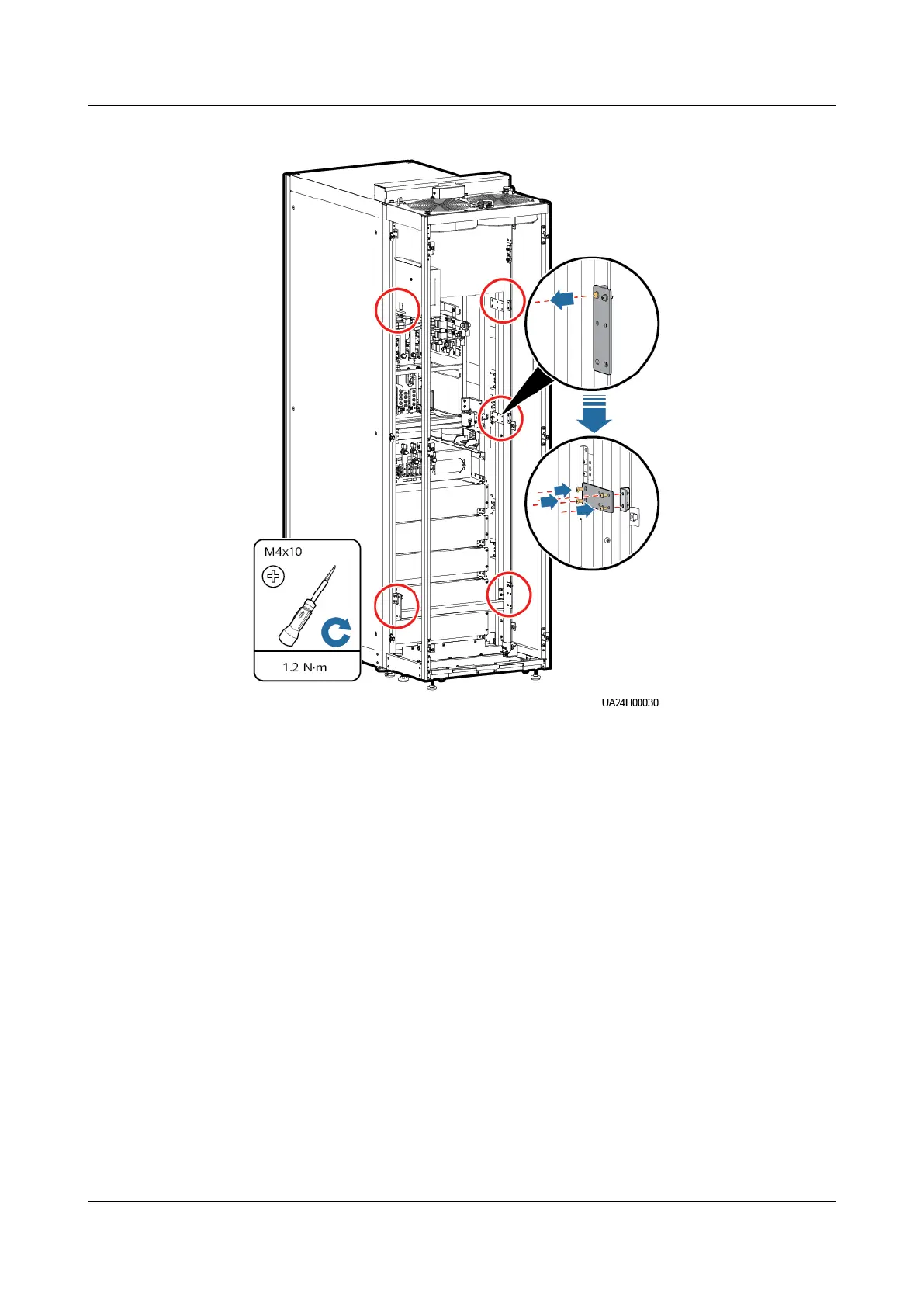

Figure 3-5 Connecting connection plates
Step 7 (Optional) If the UPS is installed against a wall, reinstall the rear cover for the top
air-ow cabinet, remove the left and right side panels from the top air-ow
cabinet, and put the side panels away.
UPS5000 Top Air-ow Cabinet
User Manual 3 Product Installation
Issue 02 (2022-01-19) Copyright © Huawei Technologies Co., Ltd. 13
