Pub. 42004-522D
E3 IP Access Panel Page 12 of 13
03/24

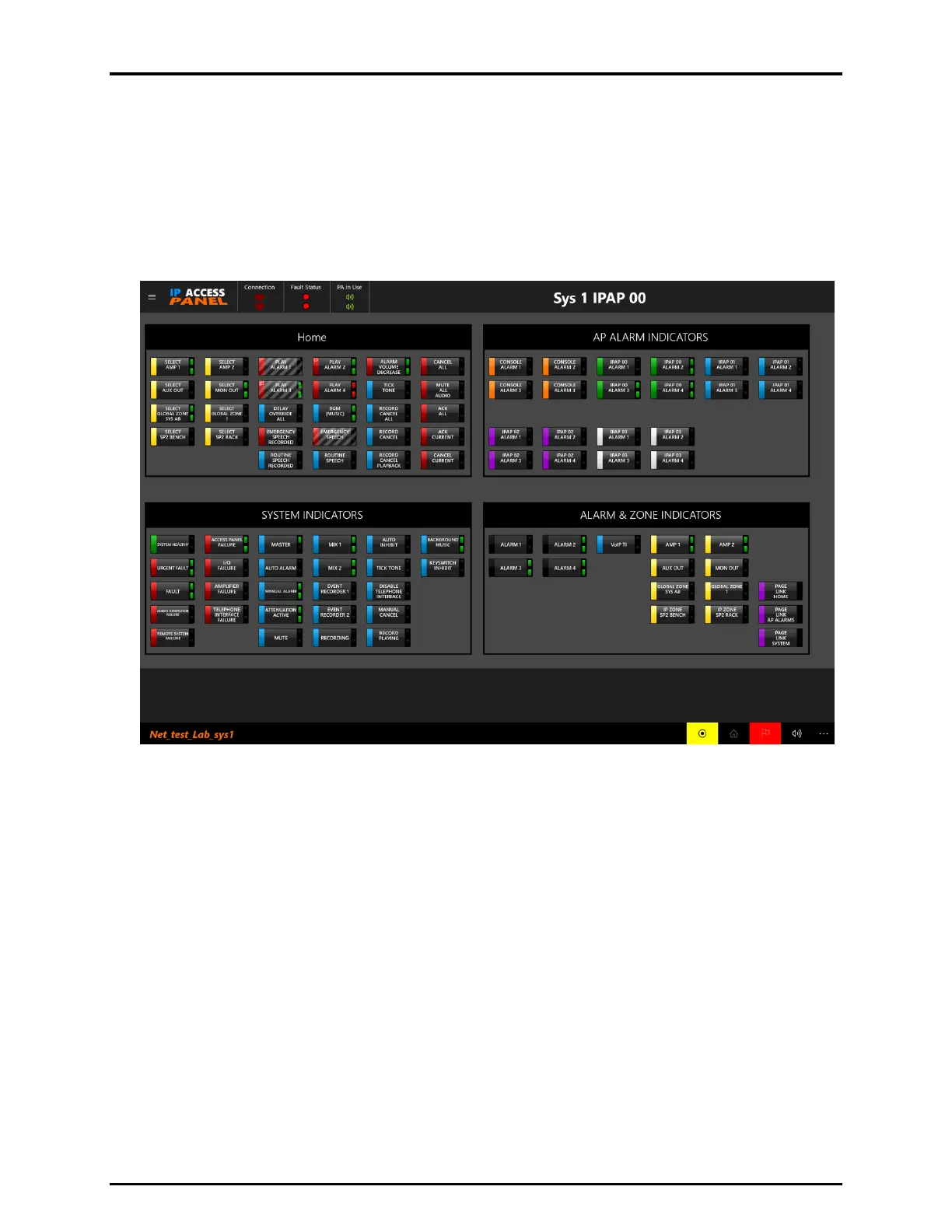

Screen Zoom
E3 IP access panels have a screen zoom feature activated by pinching or spreading fingers on touch
screens. Use Ctrl+MouseWheelDown to zoom out or Ctrl+MouseWheelUp to zoom back in on non-touch
screen displays. Zoom out to display up to four button panels on the screen simultaneously. Use the scroll
bar to view the remaining screens if more than four button panels are defined for the IPAP. All buttons
are functional in the zoomed-out mode. The button panel that the mouse is over becomes the active button
panel when zooming in to an individual button screen. Expand any button panel by selecting the title bar
of that button panel.
