22

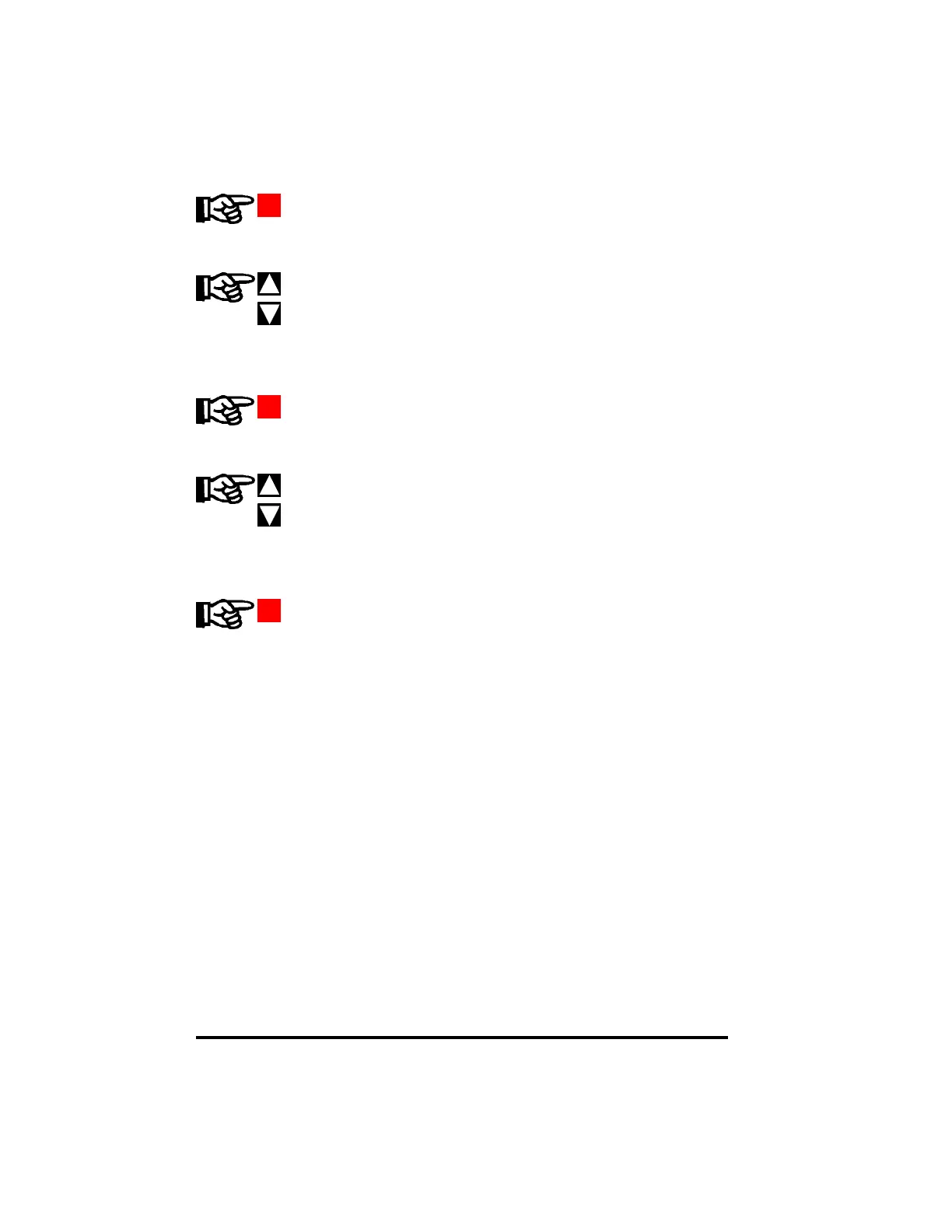

Press
ENTER/SAVE
Press
INCREASE
DECREASE
The display will show the current AL3 setpoint value. The bar shows the color
displayed while the bar is in the region
AL3 to AL4.
Pressing the INCREASE or DECREASE pushbutton will cycle through the
colors Yellow, Green and Red. The bar display color will change to show the
current choice.
Typically, this is set to Yellow (caution).
Press
ENTER/SAVE
Press
INCREASE
DECREASE
The display will show the current AL4 setpoint value. The bar shows the color
displayed while the bar is in the region <
AL4.
Pressing the INCREASE or DECREASE pushbutton will cycle through the
colors Yellow, Green and Red. The bar display color will change to show the
current choice.
Typically, this is set to Red (danger).
Press
ENTER/SAVE
The new settings will be saved.
Example: If
B.FILL is set to TRI (TriColor mode) and the typical colors de-
scribed above are chosen, the bar display will be Green as long as the
display value is between the
AL2 and AL3 setpoints. The entire bar
will illuminate Yellow in the regions
AL1 to AL2 or AL3 to AL4. The
entire bar will illuminate Red in the regions >
AL1 or < AL4.
Example: If
B.FILL is set to BAMD (Banding mode) and the typical colors de-
scribed above are chosen, when the
AL1 alarm setpoint is exceeded,
the bar will be three colors: Yellow between the
AL1 and AL2 setpoints,
Green between the
AL2 and AL3 setpoints, Red < AL4 and Red > AL1.
Notes: When in Variation or Deviation mode (see Barform), 6 regions may be
present due to the Zero point.
If new alarm setpoints were just entered, you must go to run mode before
they will show up here.
