A - Humanscale Universal Worksurface

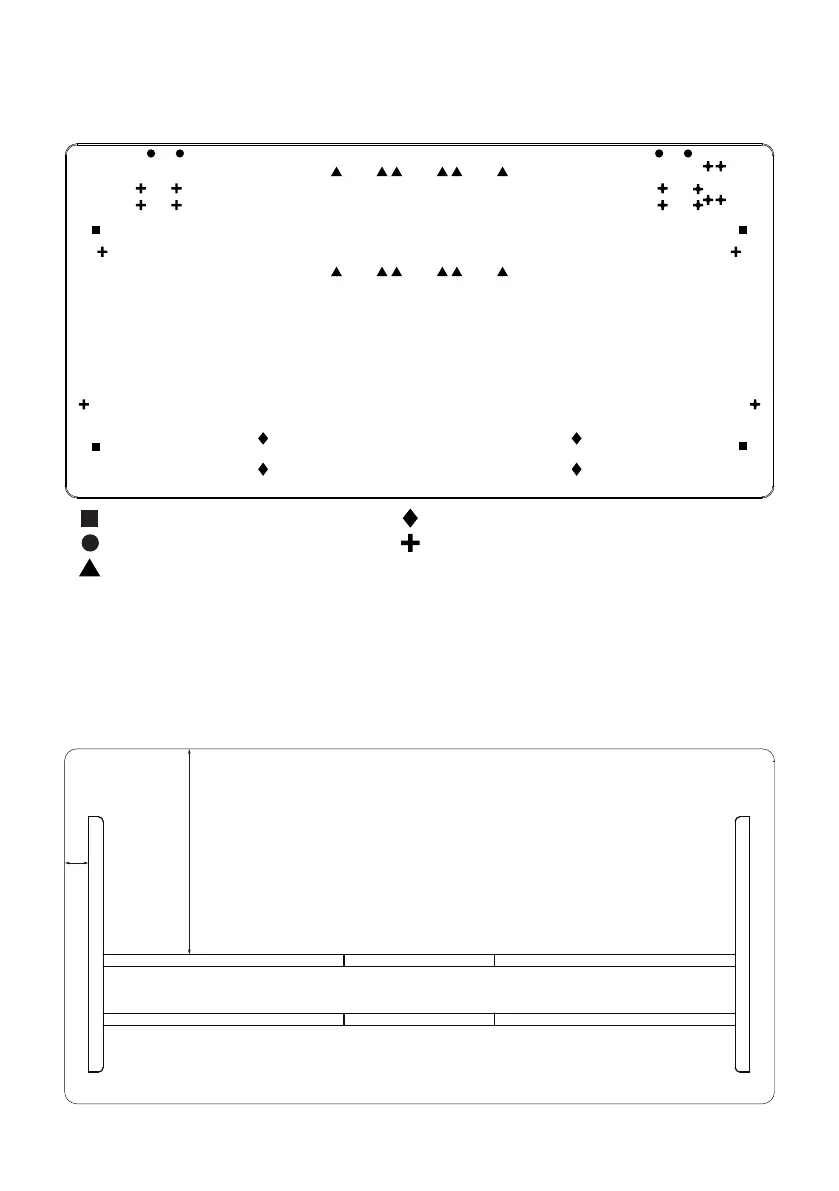

If using one of our Universal Worksurfaces, align the frame to the following pilot holes highlighted
below� Note: Only the four outer corner pilot holes are included for alignment�
Please note different size tops come with different pilot hole options� More or less pilot holes may be present depending on size ordered�
FRONT
EFLOAT GO FRAME HOLES
HAND SWITCH PILOT HOLES L&R
HS KEYBOARD TRAY (ACCESSORY)
HS NEAT TECH (ACCESSORY)
NOT APPLICABLE WITH THIS TABLE
B - Your Own Worksurface
If using your own top, locate the Table Frame using the measurements listed below� Do not use tops
larger than the size noted in the Important Safety Instructions section�
B
A
FRONT
To Next Page
