12

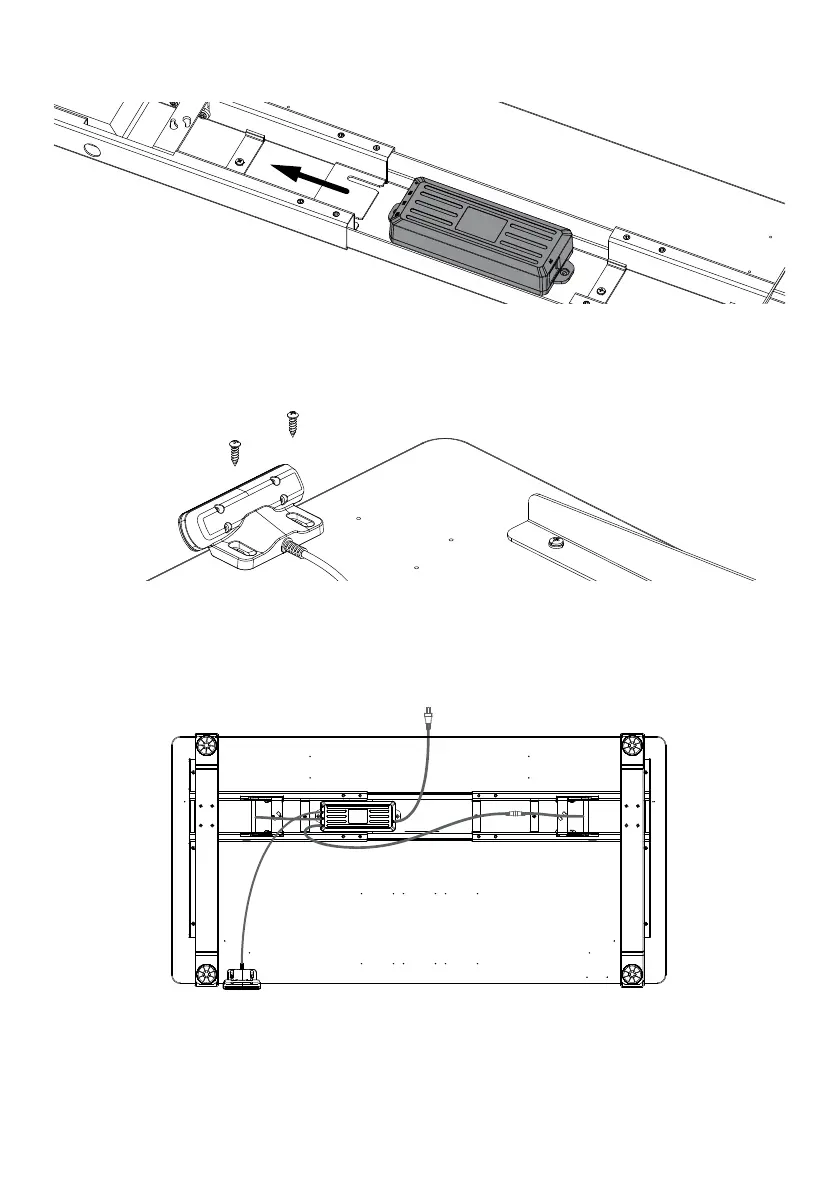

Slide the Control Box onto the frame, orientated with the (AC) Port for the power cord facing the
center of the table�
Secure the hand switch to the worksurface in your desired location using the (2) ST4 X 16, screw
along the front edge of worksurface� If using a Humanscale Universal Worksurface, Pilot holes are
positioned on the left/right hand side of the worksurface in our recommended location(s)�
Plug the hand switch into the control box� Connect the two legs to the control box, using the
connecting cable for the leg furthest away from the control box� Plug the power cord into the
control box� Use the provided (10) Cable Ties to secure cables to underside of worksurface (not
pictured), with either double sided tape or the (10) ST5 X 16 Screws�
Flip your Table right side up and plug into outlet� Reset the desk per instructions in following
section�
YOU MUST RESET THE DESK BEFORE USE. FOLLOW INSTRUCTIONS ON INITIAL SETUP/RESET
UNDER HAND SWITCH ON PG. 16
8
9
10
11
