Using the M6x14 Machine screws secure the feet to the legs�
Using the (12) ST5 X 20 Wood screws secure the frame to the work surface� If using a power drill
ensure it is set to low torque�
5
4

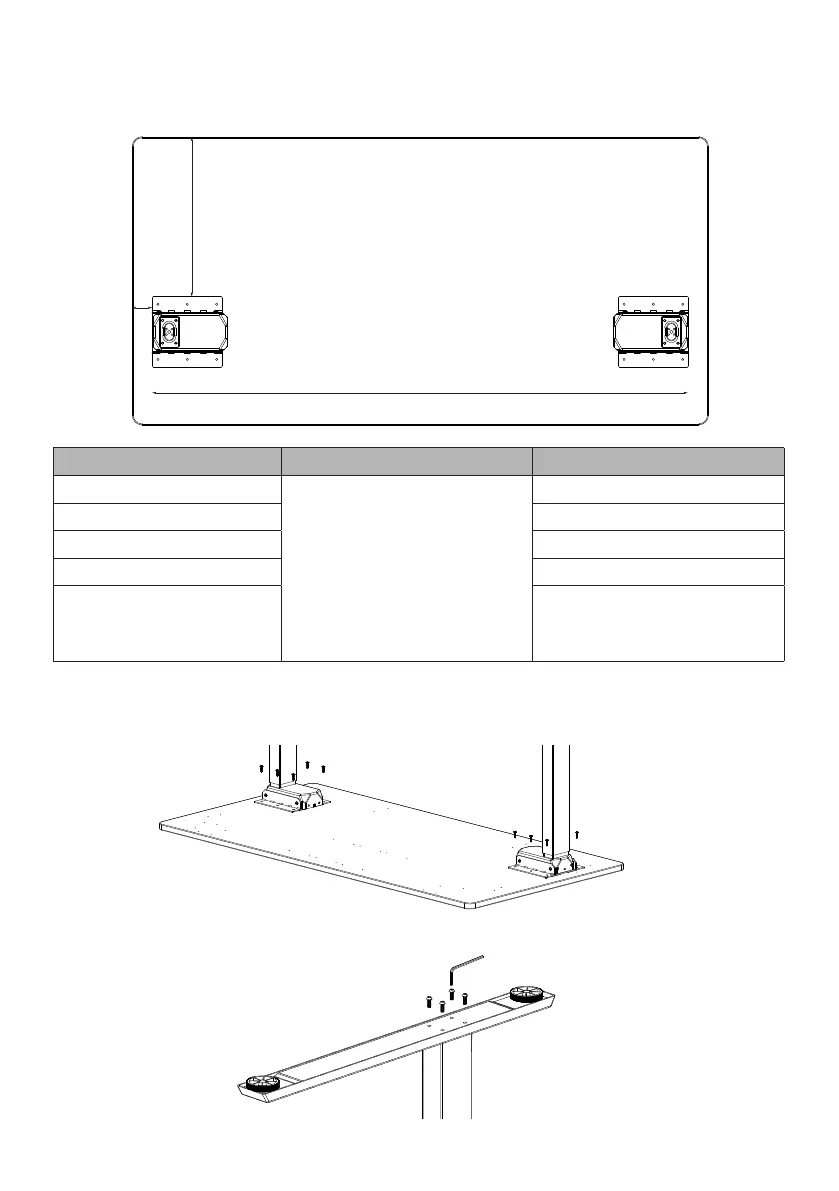

B - Your Own Worksurface
If using your own top, locate the legs using the measurements listed below� Do not use tops larger
than the size noted in the Important Safety Instructions section�
B
A
FRONT
MAX DISTANCE 54”
WORKSURFACE DEPTH A B
23”
2”
12” (305mm)
24” 12�5” (315mm)
29” 16” (405mm)
30” 16�5” (420mm)
OTHER DEPTHS
Position frame by ensuring the
foot is centered with depth of
worksurface�
