10. STARBAORD FWD WATER TANK FITTING
11. STARBOARD WATER TANK
12. STARBOARD AFT WATER TANK FITTING
13. STARBAORD FWD TANK FILL FITTING ON DECK
14. CENTER WATER TANK FILL FITTING ON DECK
15. STARBOARD AFT TANK FILL FITTING ON DECK
16. STARBOARD FWD TANK VENT THRU HULL FITTING
17. CENTER WATER TANK VENT THRU HULL FITTING
18. STARBOARD AFT WATER TANK VENT THRU HULL
FITTING
19. STARBOARD AFT WATER TANK
1. CENTER WATER TANK FILL FITTING
2. CENTER WATER TANK VENT FITTING
3. CENTER WATER TANK FITTING
4. STARBORD FWD TANK SHUT OFF VALVE
5 STARBOARD AFT TANK SHUT OFF VALVE
6. CENTER WATER TANK SHUT OFF VALVE
7. COMBINED TANK WATER FEED ON
MANIFOLD
8. COLD WATER INLET ON GALLEY MANIFOLD
9. FRESH WATER WATER PUMP
GALLEY
MASTER
HEAD
MASTER
HEAD
WATER
INLET
WATER
INLET
GUEST
HEAD
GUEST
HEAD
GALLEY
1
2
3
4
5
6
7
8
9
1011
12
13
14
15
16
17
18
19

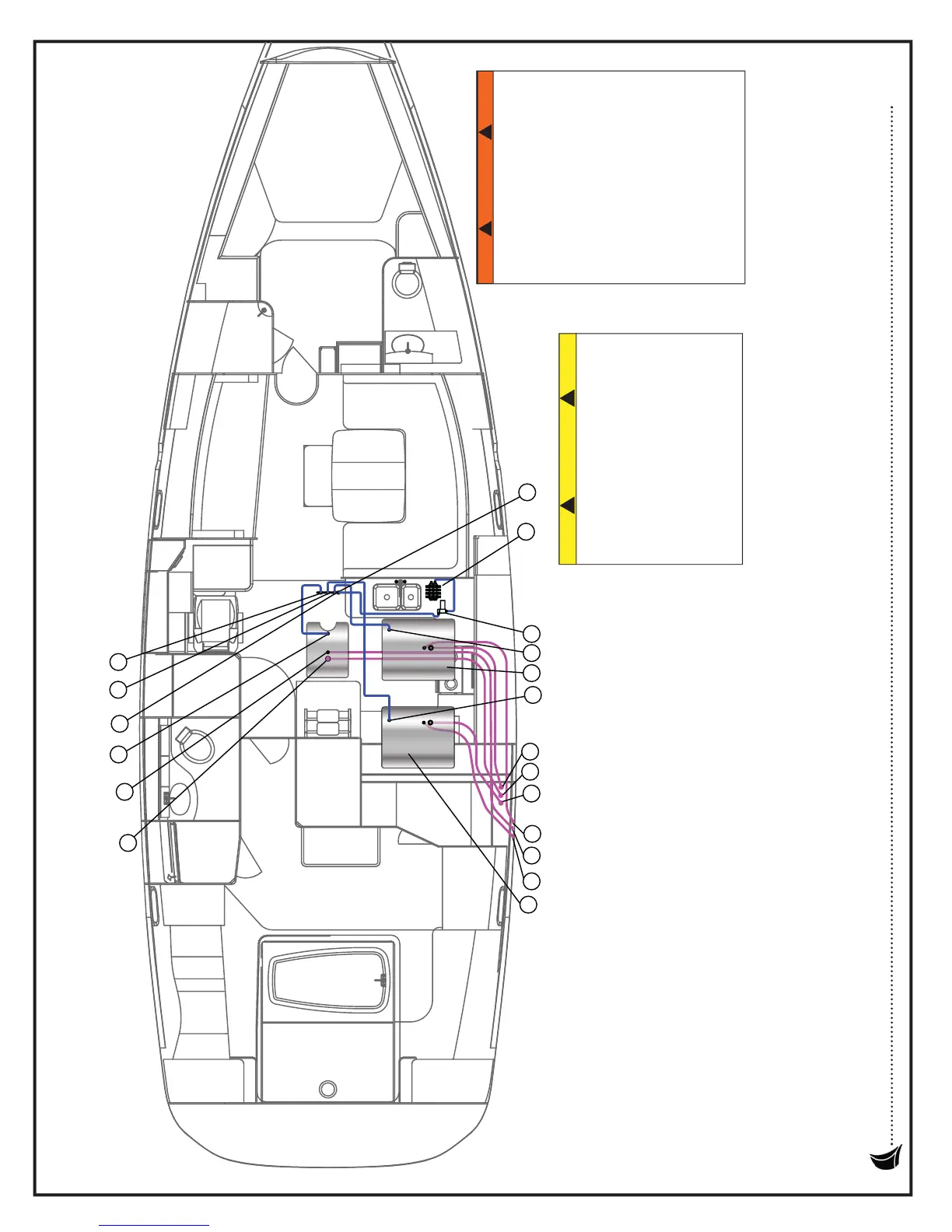

50cc FRESH WATER TANK ARRANGEMENT
Allowing your boat to stay connected to
dockside water supply while unattended,
could result in a sunken boat.
A major leak or break in the system
could flood the bilges, excess water in
the bilges could, flood the batteries and
result in your boat sinking.
Before connecting to a dockside water
source,make certain the water is suitable for
drinking. Water that may be of
questionable quality could
result in serious illness or death.
Hydrogen gas may form in a water heater if
not used. You should always open the
valves!
Do not smoke or use electrical appliances
for several minutes before use.
WARNING
! !
Make sure that the water heater
is full before energizing, bleed off
any air by opening the hot water
valve, close only when
there is a steady flow of water,
this will bleed the hot
water system of air. Failure to
follow these instructions could
result in damage to the
heating elements in your water
heater.
CAUTION
! !
