Hunter 50CC - Page 126

9
.1
2
1. AIR CONDITIONER FEED DISCHARGE HOSE (Ø5/8" HOSE) 2. FWD CABIN AIR CONDITIONER DISCHARGE THRU HULL FITTING (Ø1/2") 3. 10K BTU FWD CABIN AIR CONDITIONER UNIT 4. 16K BTU MAIN CABIN AIR CONDITIONER UNIT 5. MAIN CABIN AIR CONDITIONER DISCHARGE THRU HULL FITTING (Ø1/2") 6. 16K BTU AFT CABIN AIR CONDITIONER UNIT 7. AFT CABIN AIR CONDITIONER DISCHARGE THRU HULL FITTING (Ø1/2") 8. BALL VALVE (Ø1/2") 9. AIR CONDITIONER RAW WATER PUMP 10.AIR CONDITIONER RAW WATER PICK UP THRU HULL FITTING (Ø3/4") 11.RAW WATER STRAINER (Ø3/4") 12.AIR CONDITIONER RAW WATER PICK UP HOSE (Ø3/4")
2
1
3
4
5
6
11
10
9
8
7
12
1
1
1
1
8
8
1

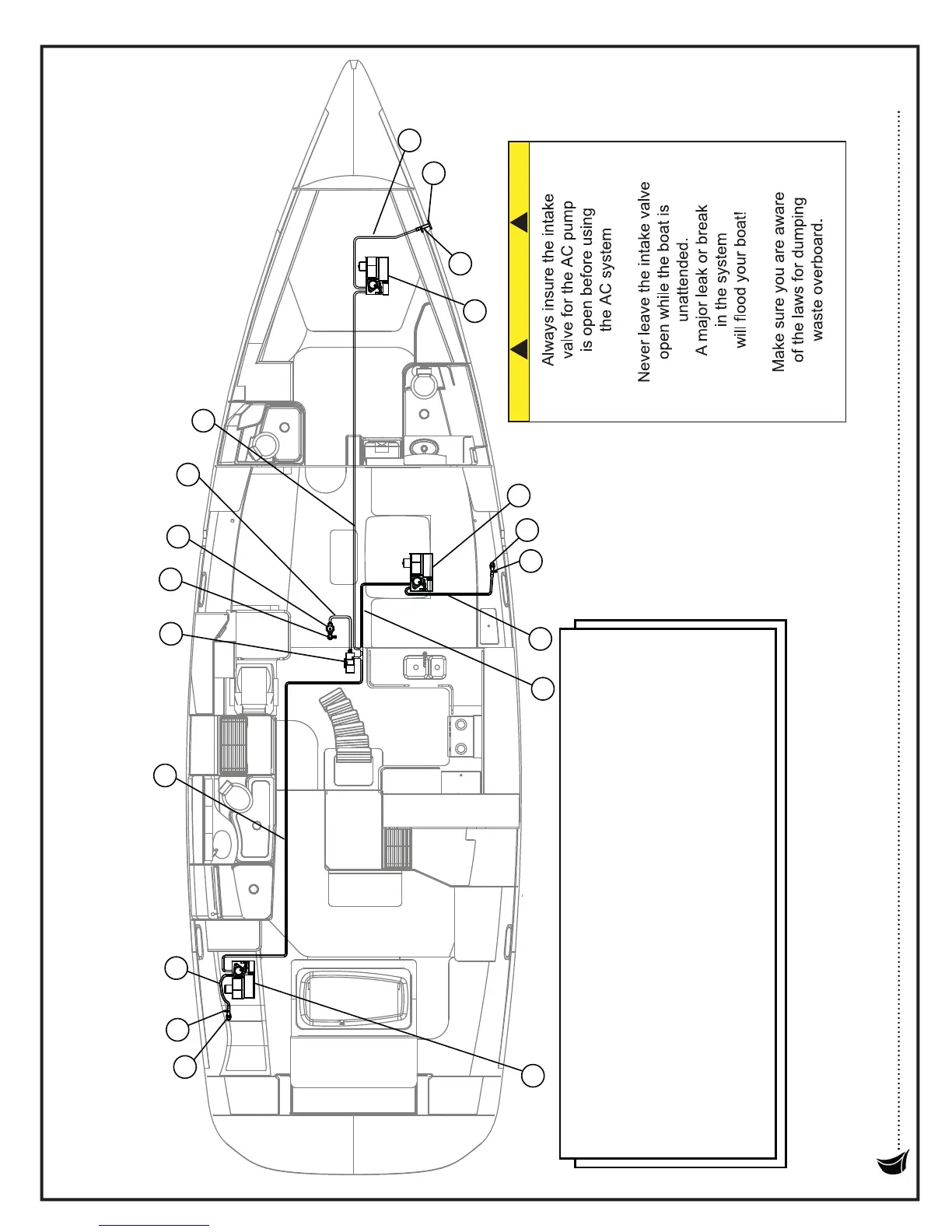

50cc AIR CONDITIONING PLUMBING ARRANGEMEN
T
CAUTION
! !
