5. Free the choke control (X) from the tank unit and unhook it.
6. Pull out the carburettor a little and unhook the throttle wire
(Y). Disconnect the fuel pipe (Z) from the carburettor using
a pair of thin-nosed pliers. Now pull out the carburettor fully.
Continue dismantling from point 7 on the next page.
3. Remove the air filter (S).
4. Undo the two screws (V) that hold the air filter holder (U)
and carburettor.
1. Dismantle the chain and bar. See the Operator Guide.
2. Dismantle the carburettor cover (R).

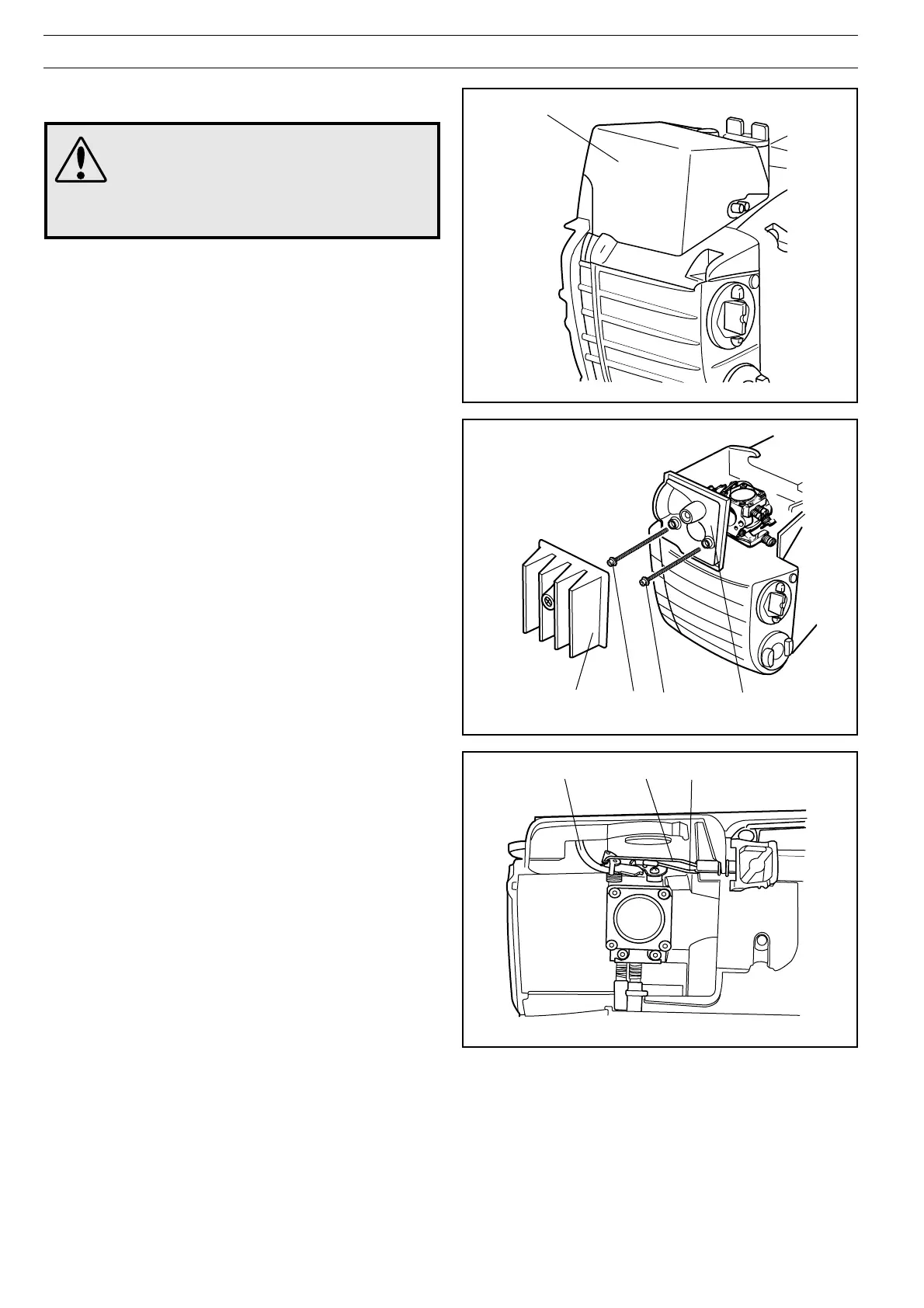

CARBURETTOR
Dismantling 336, 339XP
WARNING!
The fuel used in the chain saw has the follow-
ing hazardous properties:
• The fluid and its vapour are poisonous.
• Can cause skin irritation.
• Is highly inflammable.
Z
X
Y
R
S
V
VU
