16 – English
SAFETY EQUIPMENT
Cleaning and inspection
Clean and inspect all parts. The thickness of the brake band
must not be under 0.8 mm at any point.
2. Remove the circlips (B) and (C) then push/knock out the
pins.
3. Remove the handle.
4. Undo the four bolts (D) and remove the cover.

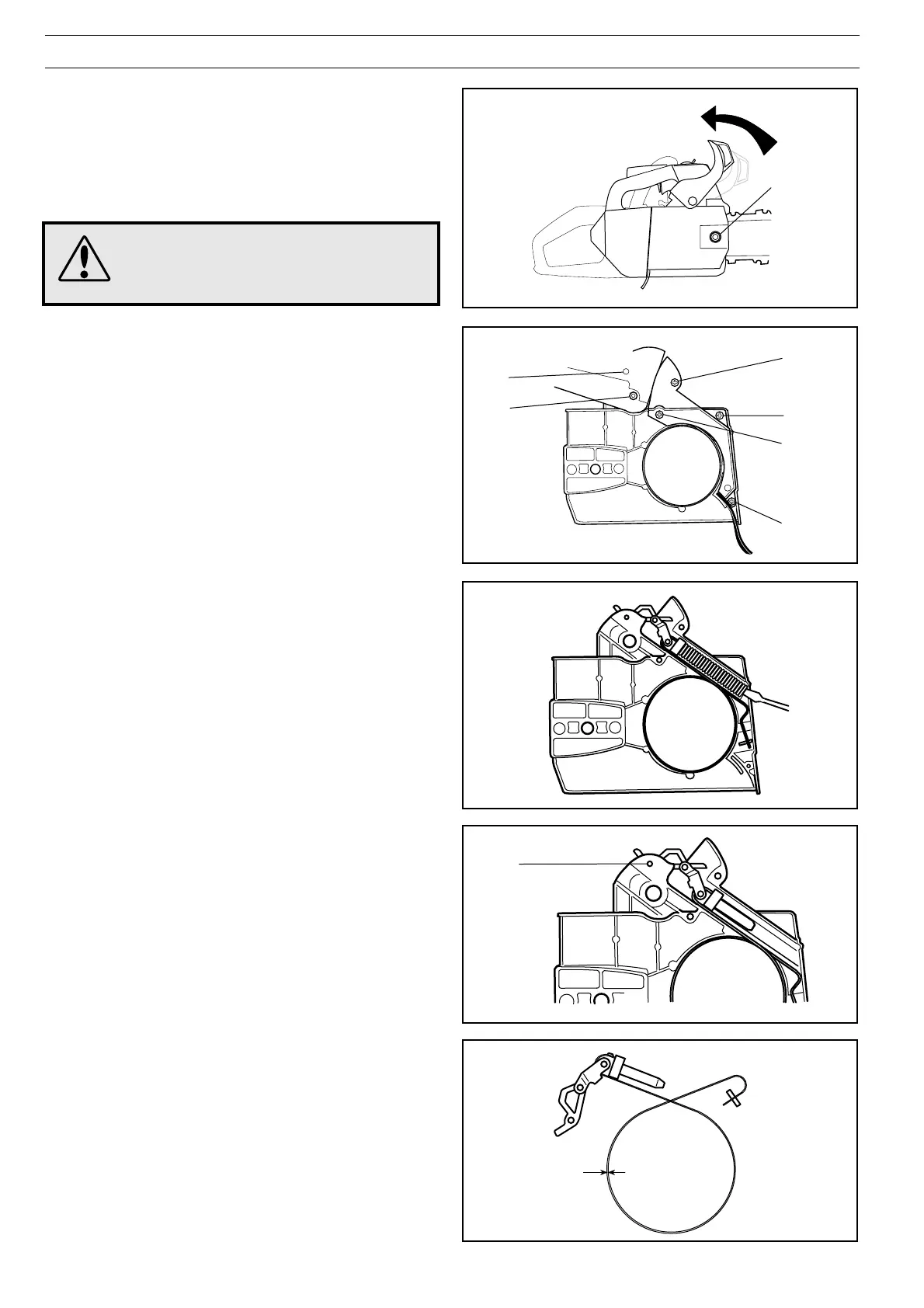

Chain brake
Dismantling
1. Check that the chain brake is off and dismantle the bolt (A)
and the clutch cover.
6. Knock out the pin (E) and remove the knee joint with the
attached brake band.
7. Unscrew the brake band from the knee joint.
WARNING!
Check that the brake is on. Otherwise the
pressure spring can fly out and cause per-
sonal injury.
5. Remove the pressure spring by loosening the rear edge
with a screwdriver.
D
D
D
D
B
C
E
A
