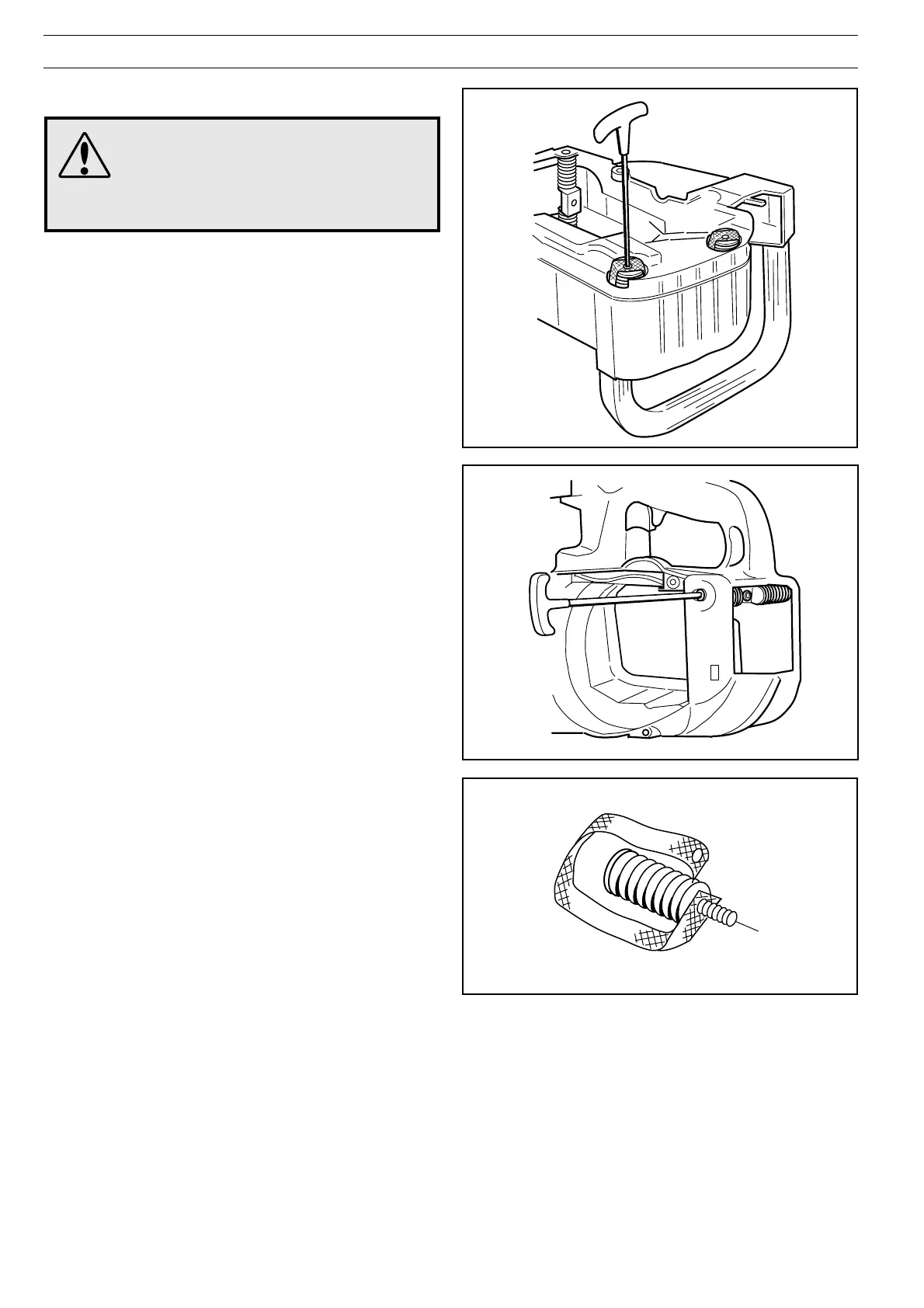

46 English
AV-SYSTEM
Assembly
1. Fit the movement limiters on the two front damper elements.
2. Fit the damper element on the tank unit by using a 4 mm
allen key.
Assemble the following parts:
1. Tank unit. See the chapter "Tank unit".
2. Ignition system and the spark plug. See the chapter
"Ignition system".
3. Starter. See the chapter "Starter".
4. Carburettor. See the chapter "Carburettor".
5. Muffler. See the chapter "Safety equipment".
6. Centrifugal clutch. See the chapter "Centrifugal clutch".
7. Bar and chain. See the Operator Guide.
Anti vibration system
WARNING!
The fuel used in the chain saw has the follow-
ing hazardous properties:
The fluid and its vapour are poisonous.
Can cause skin irritation.
Is highly inflammable.
Dismantling
Dismantle the following parts:
1. Bar and chain. See the Operator Guide.
2. Centrifugal clutch. See the chapter "Centrifugal clutch".
3. Muffler. See the chapter "Safety equipment".
4. Carburettor. See the chapter "Carburettor".
5. Starter. See the chapter "Starter".
6. Ignition system and the spark plug. See the chapter
"Ignition system".
7. Tank unit. See the chapter "Tank unit".
Now dismantle the following:
8. Dismantle the damper element using a 4 mm allen key.
Cleaning and inspection
Clean and inspect all parts.
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
