English – 23
STARTER
WARNING!
• The return spring is under tension when in its cassette
in the starter and can, with careless handing, fly out
and cause personal injury.
• Care must be exercised when replacing the recoil
spring or the starter cord. Wear protective glasses.

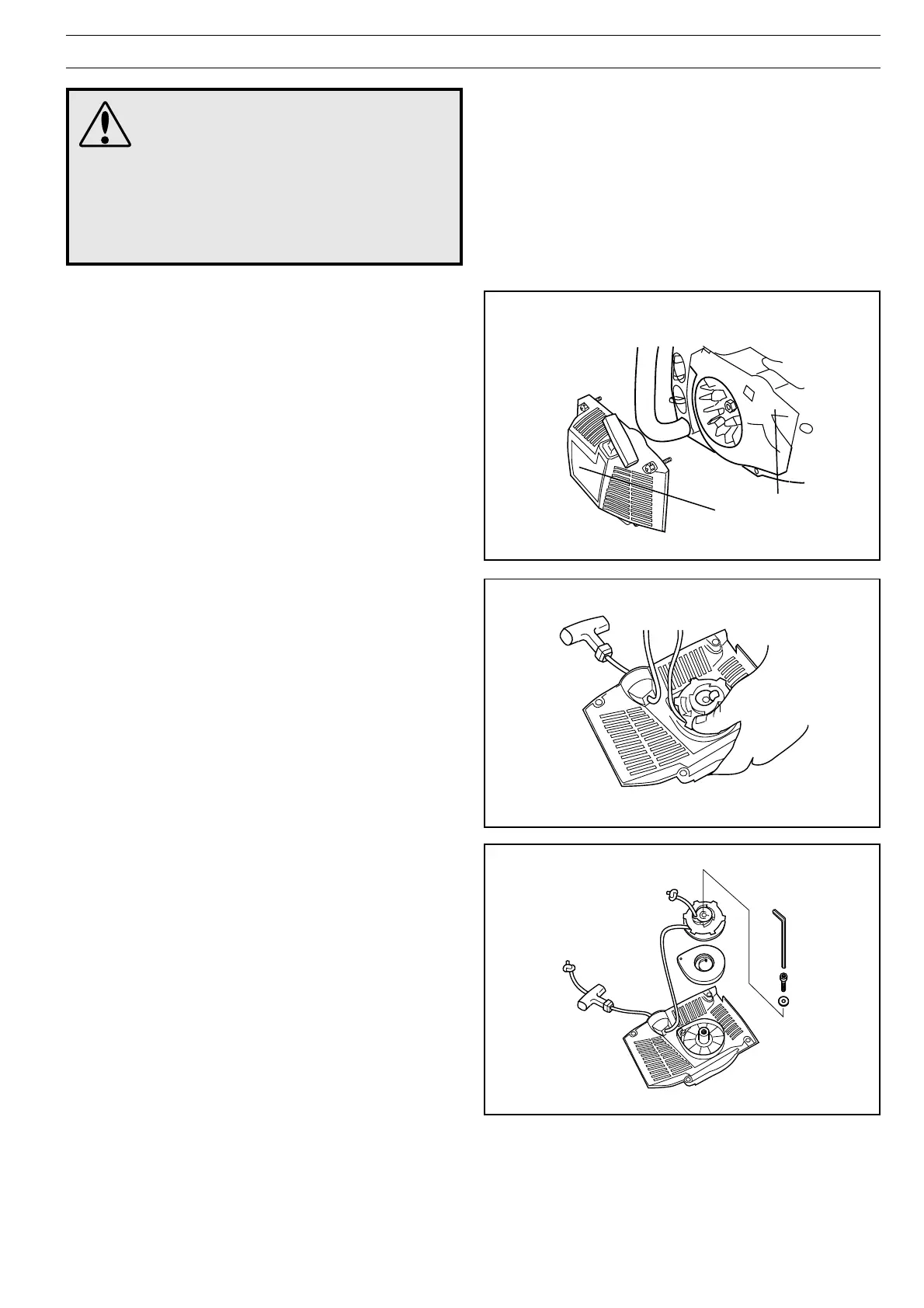

Dismantling
1. Undo the four bolts holding the starter (A) and air conductor
(B) in position.
4. Carefully lift up the spring cassette so that the spring does
not fly out and cause personal injury.
5. If the starter cord is to be replaced, cut it off and pull out the
pieces from the handle and starter pulley using a pair of
long nosed pliers.
2. Pull the cord out 20-30 cm and lift it into the cut-out on the
starter pulley’s outer edge. Release the tension on the
return spring by allowing the starter pulley to rotate slowly
backwards.
3. Undo the centre bolt and take out the washer and starter
pulley.
A
B
