SAFETY EQUIPMENT
Assembly 336, 339XP

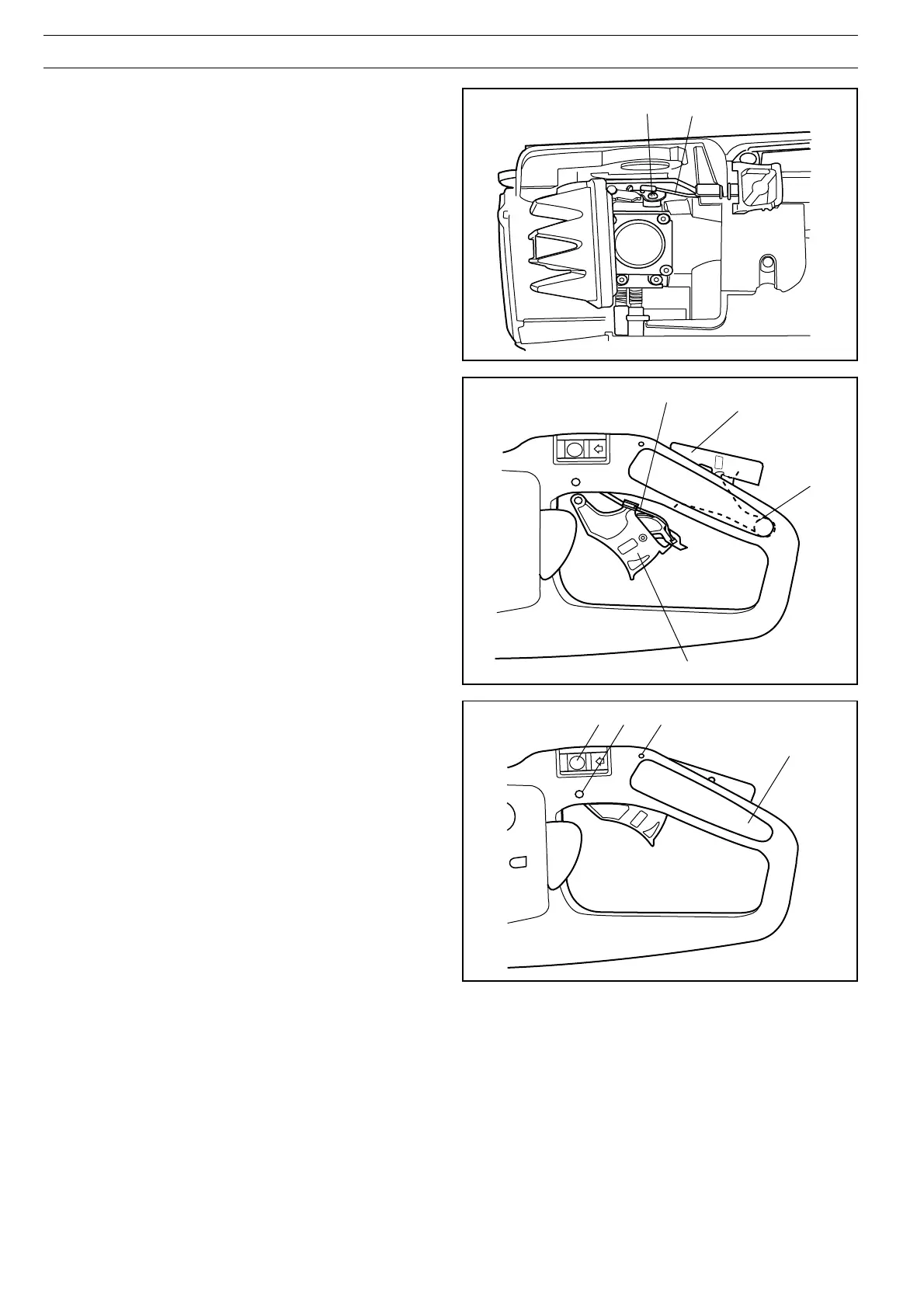

Assemble the parts as follows:
1. Attach the throttle wire (H) to the steel wire and pull back
the steel wire and throttle wire through the tank unit.
2. Connect the throttle wire (H) to the throttle valve (I) and
then fit the carburettor cover.
6. Fit the two pins (C and D).
7. Press both side covers into place (B).
8. Connect the leads to the stop button (A) and push it back
into the handle.
3. Connect the throttle wire (H) to the throttle trigger (G).
4. Fit the throttle trigger (G) by pushing it upwards and
forwards at an angle.
5. Fit the spring (F) and throttle lock (E). Engage the spring in
the slot in the throttle trigger (G).
I
H
H
E
F
G
AC
D
B
