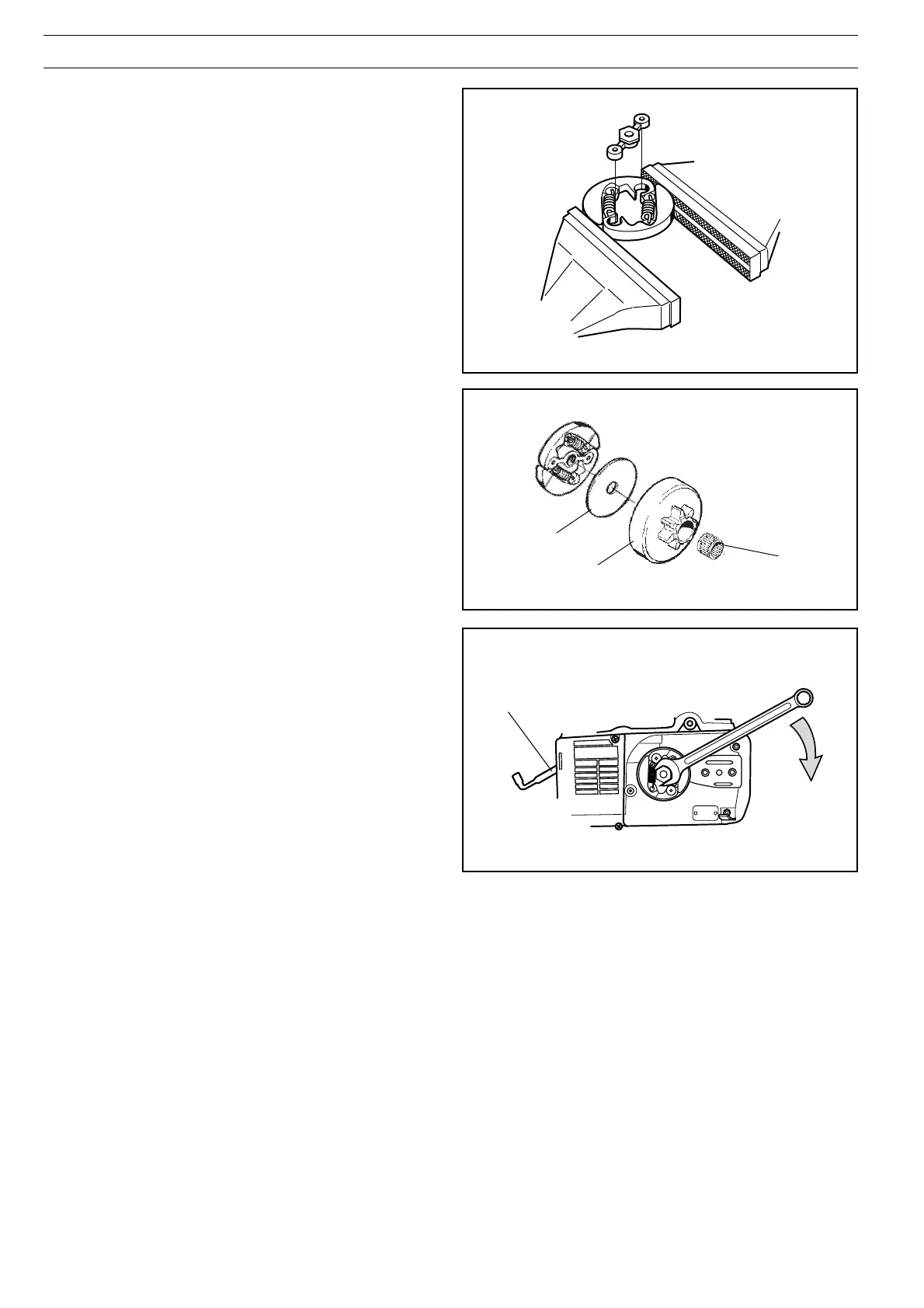

CENTRIFUGAL CLUTCH
Assembly
1. When changing the springs assemble as follows:
A. Fit the two clutch shoes and the two springs and set up
the unit in a vice.
B. Tighten the vice so that the shoe holder can be pressed
down between the clutch shoes.
3. Use a 19 mm spanner and fit the clutch hub.
NOTE! Left-hand thread.
4. Remove the piston stop (A) and fit the spark plug. Tighten-
ing torque: 15 Nm.
5. Fit the clutch cover. Adjust the chain tension, see the
Operator Guide. Tighten the nuts on the bar cover to 15 Nm.
2. Grease and fit the needle bearing (D), clutch drum (C) and
washer (B).
B
C
D
A
