18 – English

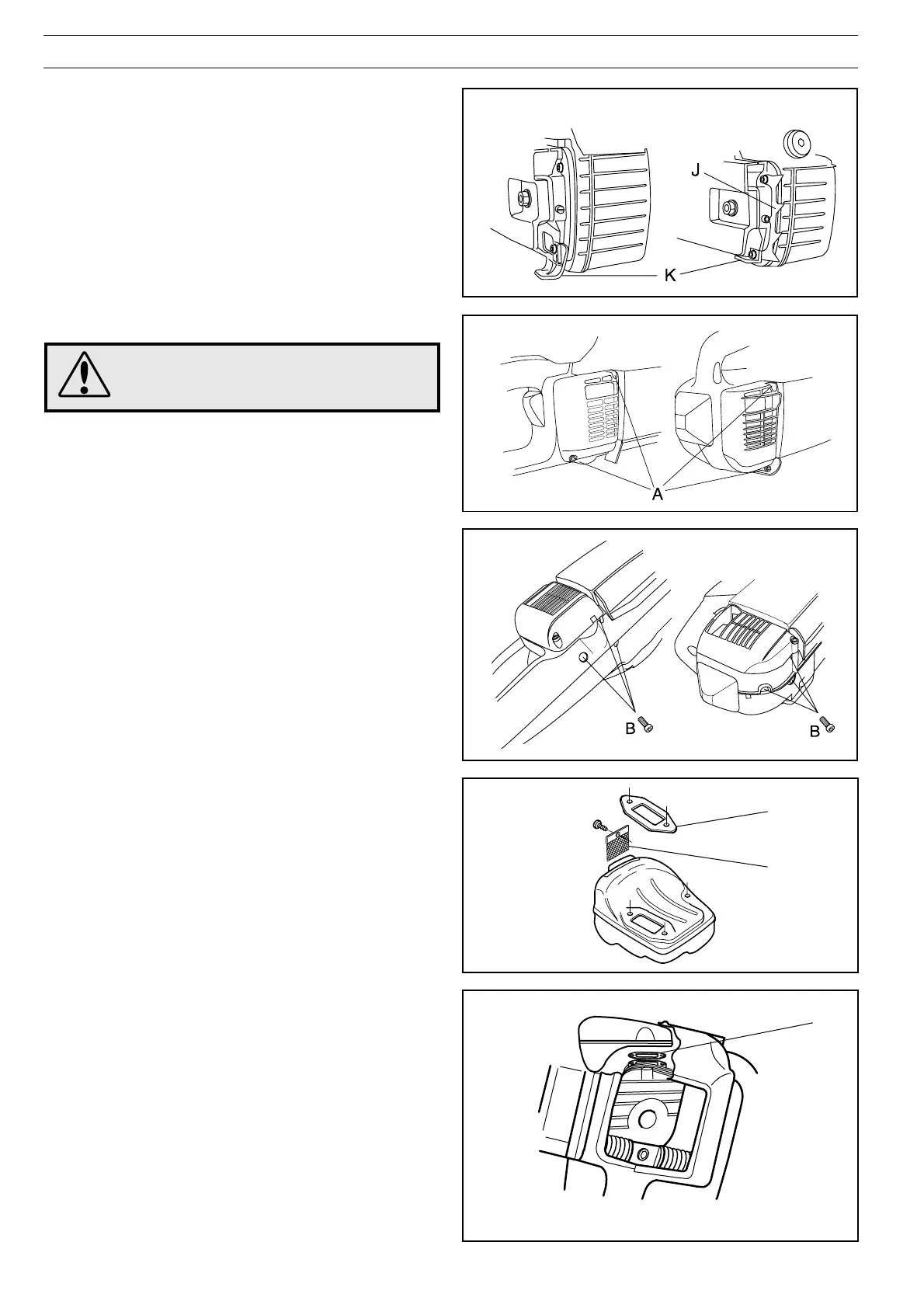

SAFETY EQUIPMENT
Chain catcher
Dismantle the chain and bar. See the Operator Guide. Check
the spike (J), does not apply to 333, and the chain catcher (K).
Replace any components if damaged. The bolts should be
tightened to 4 Nm.
Assemble the chain and bar. See the Operator Guide.
Cleaning and inspection
Clean all components and check the following:
1. That the spark-arrester (C) is intact.
2. That the muffler and its mountings are not cracked or
having any other defects.
3. That the gasket (D) is undamaged.
Assembly
1. Place the chain saw in the fixture (see service tools) or in a
vice so that the muffler’s seating on the cylinder is
horizontal.
2. Place the gasket (D) in position on the cylinder.
3. Carefully slide in the muffler without disturbing the gasket.
4. Press the muffler down on the cylinder once the bolt holes
in the muffler, gasket and cylinder are aligned. The gasket
can be adjusted using a small screwdriver.
5. Tighten the muffler bolts to 8-10 Nm.
6. Fit the muffler guard.
Dismantling
Dismantle the muffler as follows:
1. Dismantle the muffler guard by removing the two bolts (A).
Muffler
2. Turn the saw and undo the three bolts (B) holding the
muffler.
3. Lift out the muffler to the side.
4. Remove the gasket.
WARNING!
Do not touch the muffler until it has cooled.
Risk for burns.
