English – 17
SAFETY EQUIPMENT
Assembly

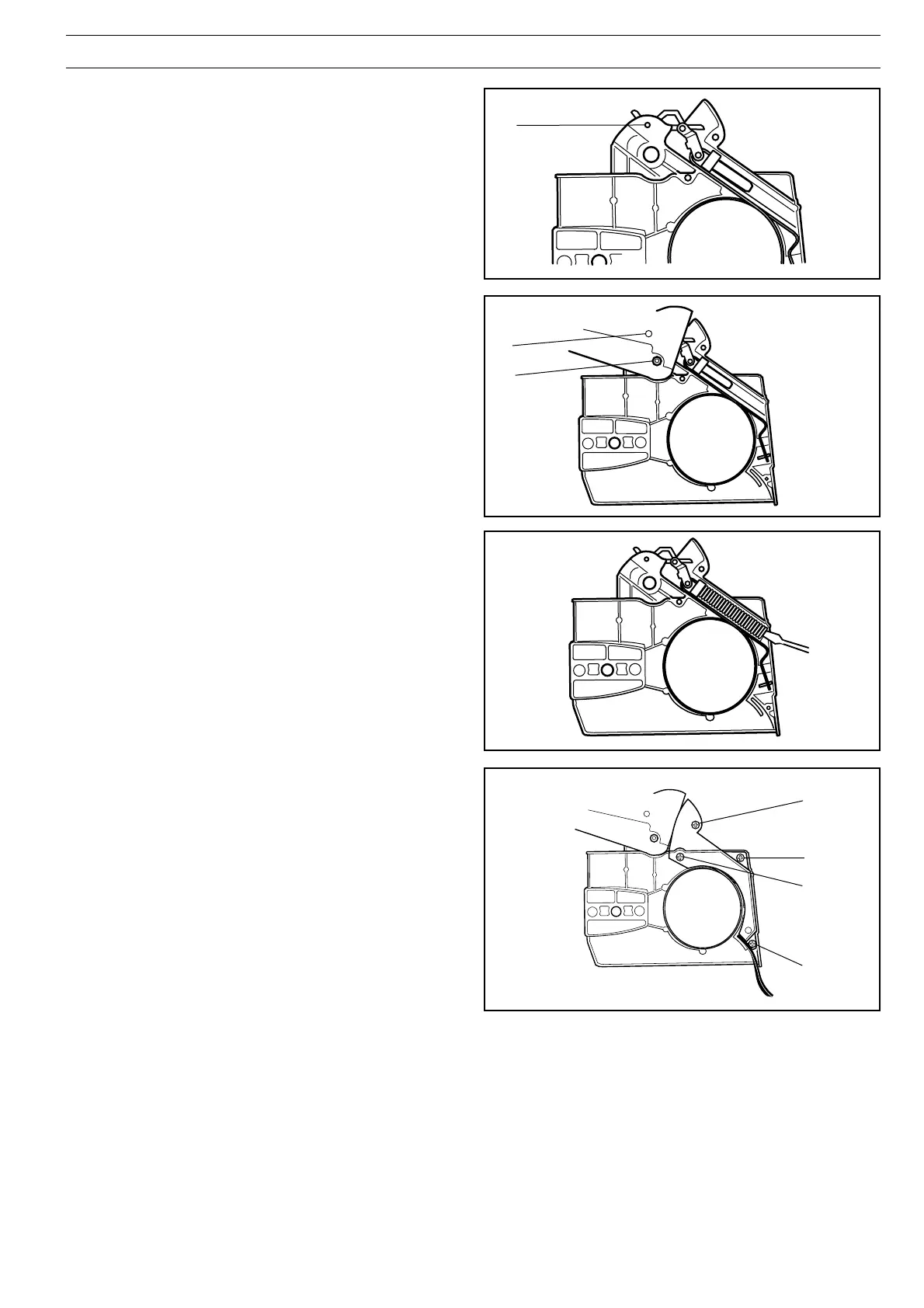

Assemble the chain brake as follows:
1. Bolt together the knee joint and brake band.
2. Grease the knee joint’s moving parts and assemble the unit
in the cover and knock in the pin (E).
B
C
E
D
D
D
D
5. Fit the cover and tighten the four bolts (D).
6. Release the brake and fit the clutch cover on the chain saw.
Adjust the chain tension, see the Operator Guide. Tighten
the nut to 15 Nm.
4. Apply the brake and fit the spring. Use a screwdriver to
press down the rear edge.
3. Fit the kickback guard, insert the two pins and fit the circlips
(B) and (C).
