24 – English
STARTER
Cleaning and inspection
Clean all components and check the following:
1. Starter cord.
2. The dogs on the starter pulley.
3. That the starter dogs on the flywheel are intact, spring back
towards the centre and run easily.

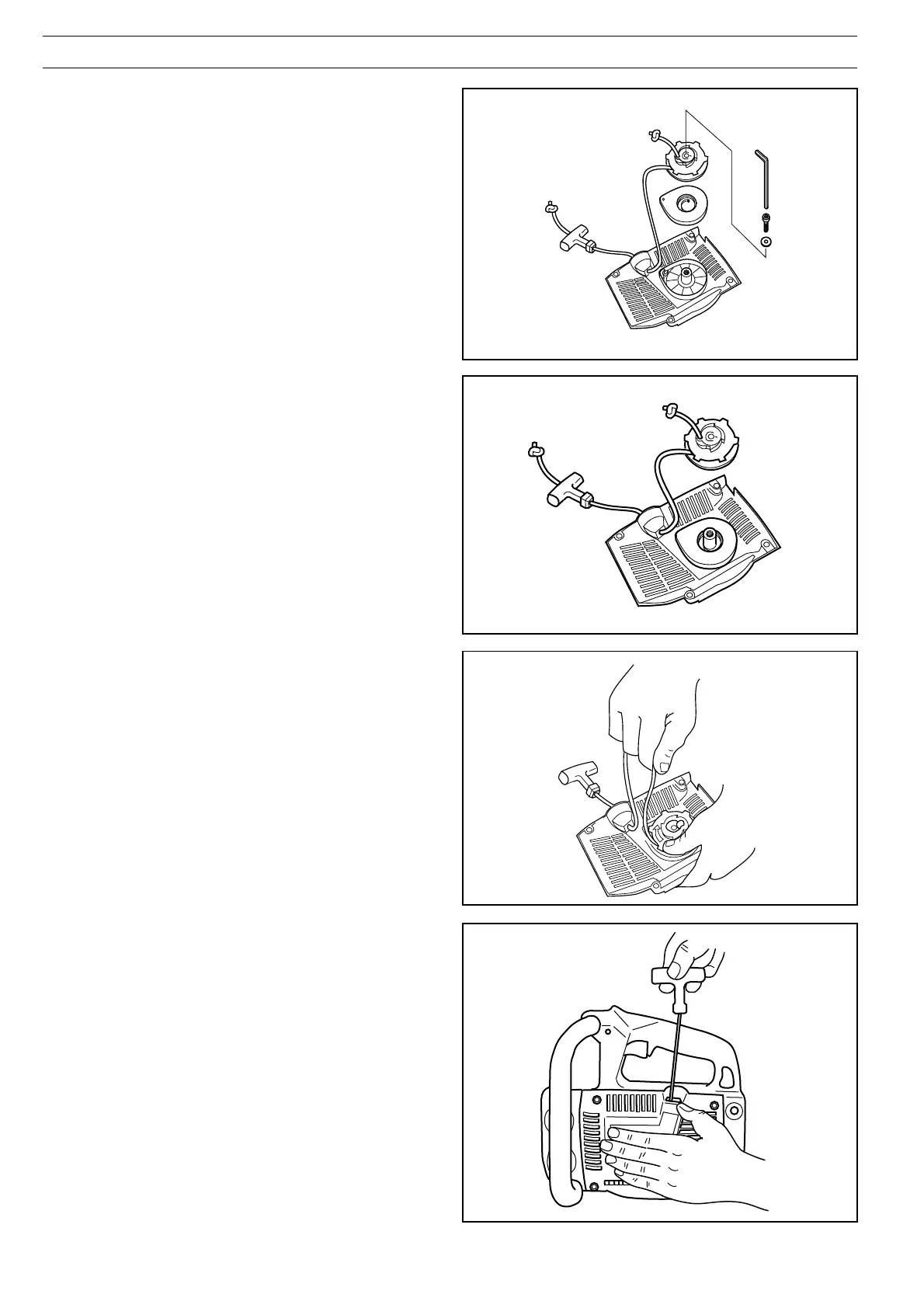

Assembly
1. Lubricate the new return spring using thin oil without
removing it from the cassette.
2. Carefully fit the spring cassette in the starter housing so
that the spring does not fly out and cause personal injury.
3. Insert and secure a new starter cord in the starter pulley.
Wind approx. 3 turns of the starter cord on the starter pulley.
4. Fit the starter pulley so that the end of the return spring
hooks into the starter pulley. Fit the bolt into the centre of
the starter pulley.
5. Pull out the cord through its hole in the cover and fit the
handle, secure with a double knot.
7. Fit the starter in the chain saw. Pull gently on the starter
handle so that the starter dogs engage. Now fit the four
bolts and tighten to 2.5-4 Nm.
6. Lift the starter cord up into one of the starter pulley’s cut-
outs and turn the pulley about two turns.
Checking the cord tension:
A. Pull out the cord completely.
B. In this position it should be possible to pull out the cord a
further 1/2-3/4 of a turn by hand.
