English – 39
Repair instructions
Fit the throttle pushrod and spring to the carburet-
tor.
5
Connect the fuel hose to the carburettor.
6
Fit the following:
cable guide
starter assembly (2.5–3 Nm)
chain and guide bar
clutch cover
air filter
cylinder cover (2–3 Nm)
7
Connect the HT lead.
Bolt on the spring assemblies and the stop plate,
tightening the bolts to a torque of 2–3 Nm.
4

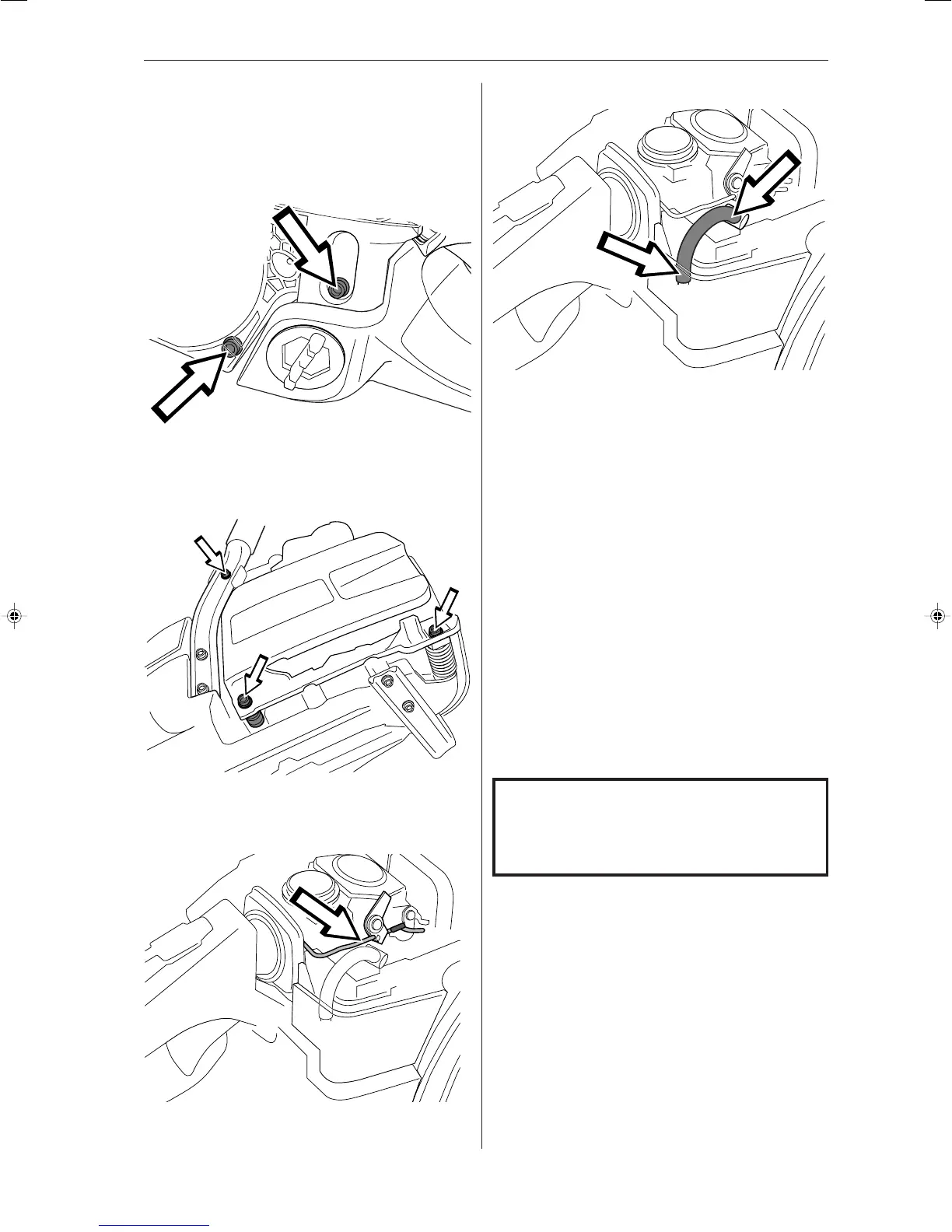

Fuel tank – refitting
1
Insert the fuel hose into the carburettor chamber.
Refit the fuel tank.
2
Bolt on the stop plate and spring assembly,
making sure that the side support is on the bolt
when the stop plate is tightened.
Tighten the bolts to a torque of 2–3 Nm.
3
1
Before replacing the fuel hose, measure the length
of hose outside the tank unit. Lubricate the mitred
end of the fuel hose and insert it in the oiled section
of the fuel tank. Rotate the hose so that it is angled
towards the carburettor and make sure the same
length of hose is exposed as before.
2
Remove the fuel hose from the fuel tank using tool
502 50 83-01, trim off the mitred end, fit the fuel
filter and reinsert the hose in the tank.
Replacing the fuel hose
NOTE!
Do not use knurled pliers to disconnect or
reconnect the fuel hose. This could dam-
age the hose.
V-bok 340-351 Eng 99-04-15, 18.4639
