3. INSTALLATION

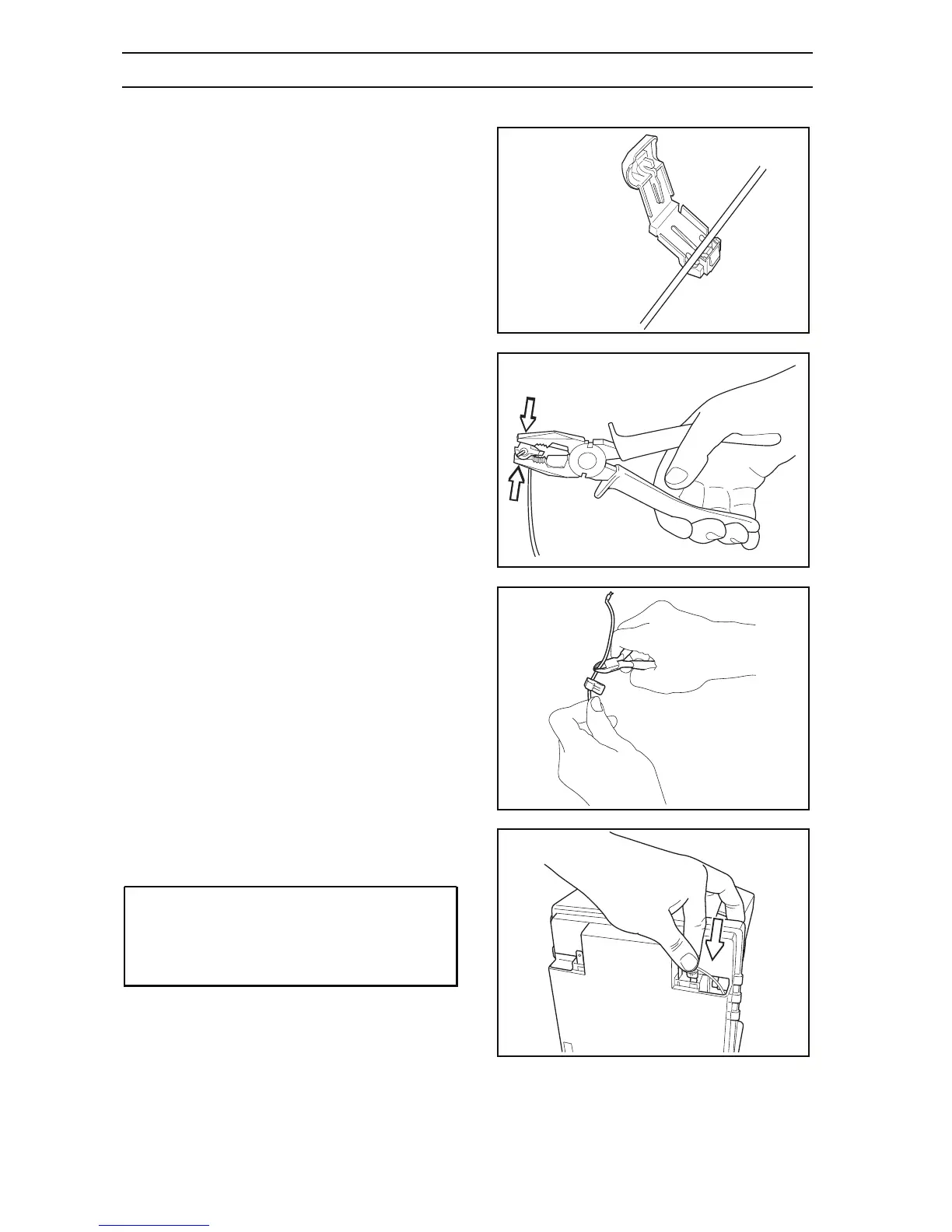

3. Place the cable ends in the connector:
• Open the connector.
• Place the wire in the connector grip.
4. Press the connector together using a pair of
pliers. Press until you hear a click.
5. Cut off any surplus boundary wire. Cut 0.4" - 0.8"
above respective connectors.
6. Press the connector onto the contact pin, marked
A, on the charging station.
IMPORTANT INFORMATION
The right hand connector should be
connected on the right hand contact pin on
the charging station and vice versa.
3012-284
3012-264
3012-265
3012-507
