34 - English
3. INSTALLATION
The longer the guide wire, the closer the mower
follows the guide wire. If the guide wire is longer
than 1000 ft, the mower may find it difficult to
follow the wire. This varies depending on the
design of the garden and installation.

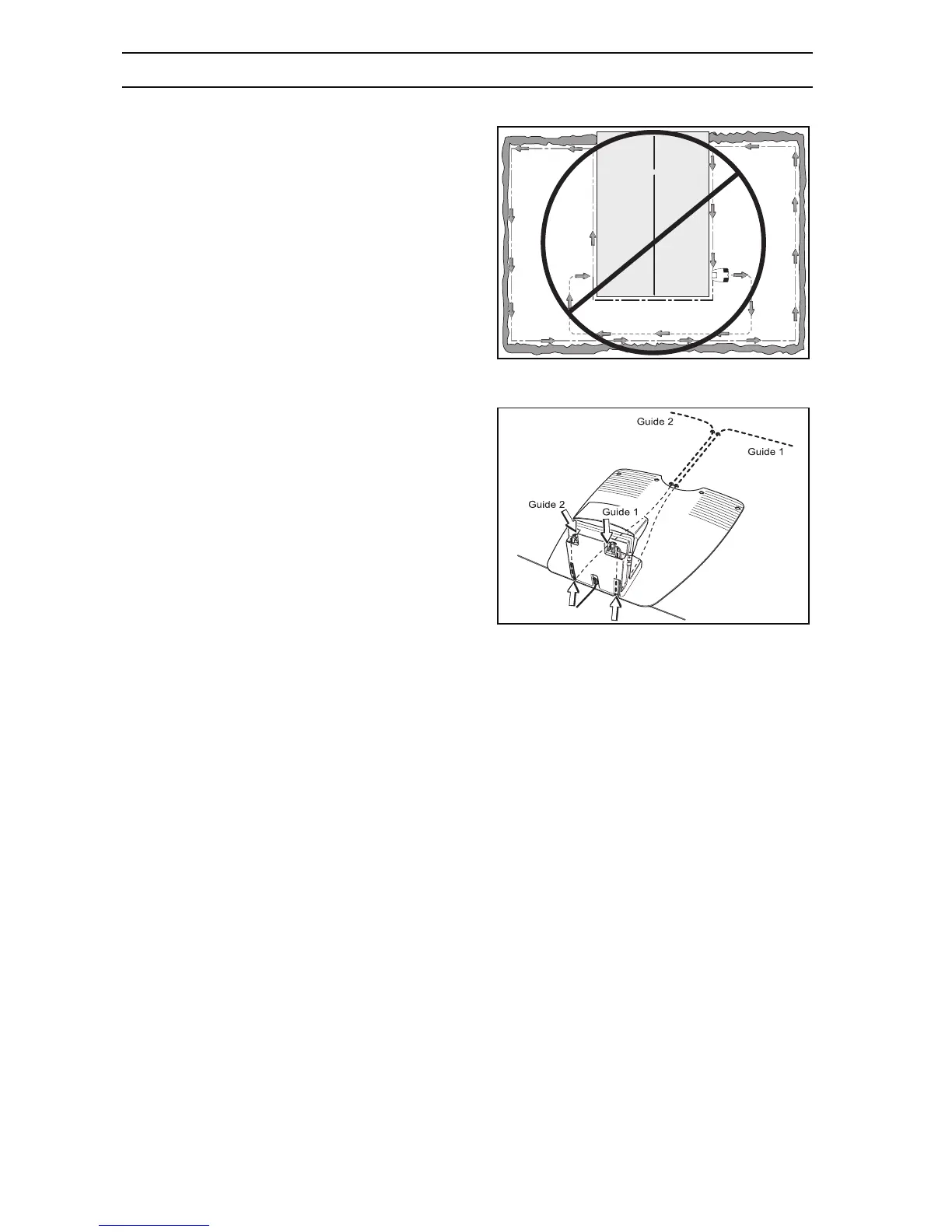

2. Lift up the cover on the charging station.
3. If you intend to install guide 1:
• Insert the end of guide 1 into the lower
right-hand hole on the charging station and
catch it in the upper hole.
• Secure a connector on the guide wire.
• Connect guide 1 to the contact pin on the
charging station marked guide 1.
If you intend to install guide 2:
• Insert the end of guide 2 into the lower
left-hand hole on the charging station and
catch it in the upper hole.
• Secure a connector on the guide wire.
• Connect guide 2 to the contact pin on the
charging station marked guide 2.
4. Route the cable straight under the charging
station plate.
3012-650
3012-538
