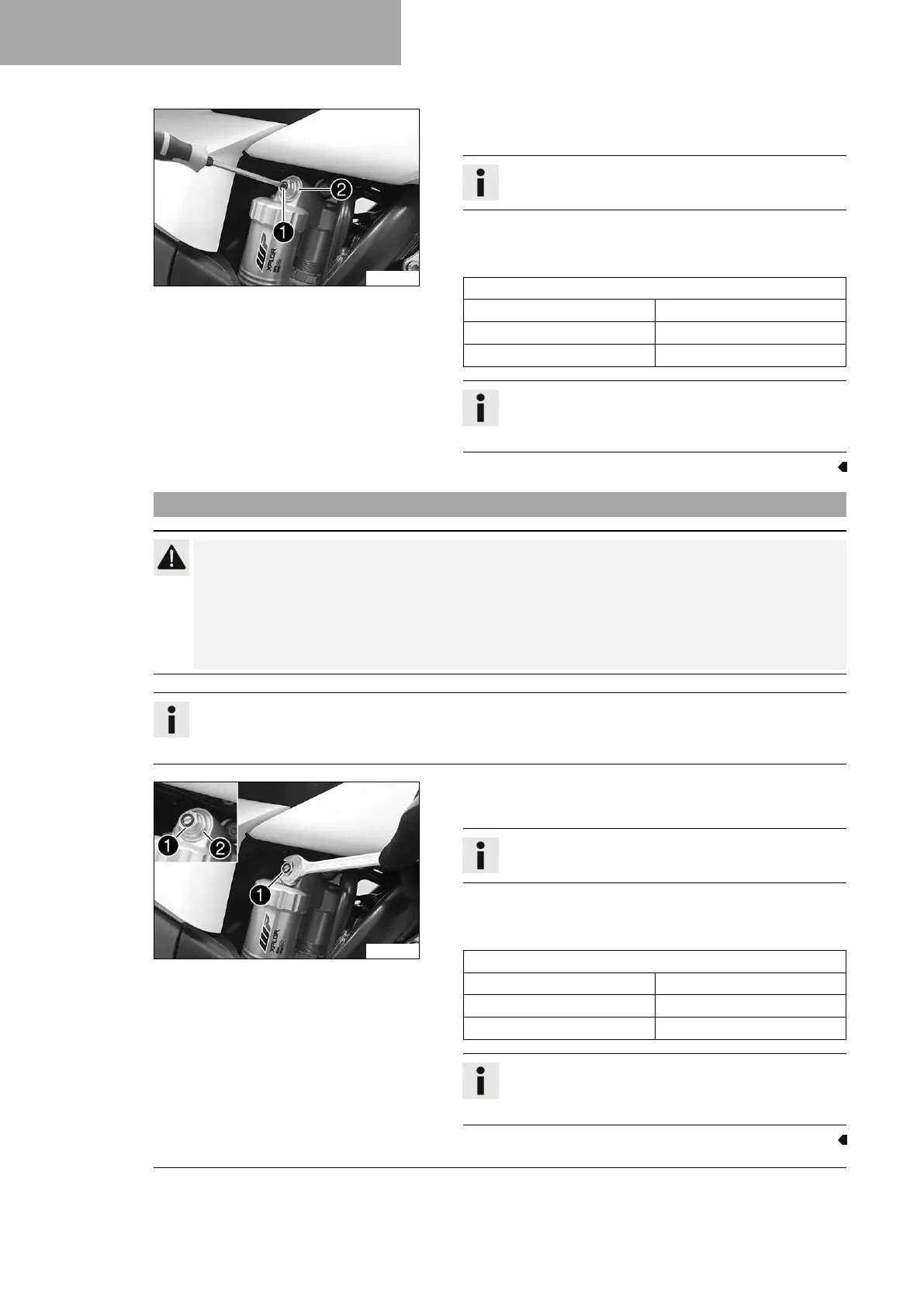

11 TUNING THE CHASSIS
44
S03550-10
–
Turn adjusting screw
1
clockwise with a screwdriver as far
as the last perceptible click.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of clicks correspond-
ing to the shock absorber type.
Guideline
Lowspeed compression damping
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce the damping.
11.4 Adjusting the high-speed compression damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incor-
rectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized Husqvarna Motorcycles workshop will be
glad to help.)
Info
The effect of the high-speed compression adjuster can be seen in fast compression of the shock
absorber.
S03551-10
–
Using an open end wrench, turn adjusting screw
1
clock-
wise all the way.
Info
Do not loosen fitting
2
!
–
Turn counterclockwise by the number of turns corresponding
to the shock absorber type.
Guideline
Highspeed compression damping
Comfort 2.5 turns
Standard 2 turns
Sport 1.5 turns
Info
Turn clockwise to increase the damping; turn counter-
clockwise to reduce the damping.
