Husqvarna FE 250 User Manual

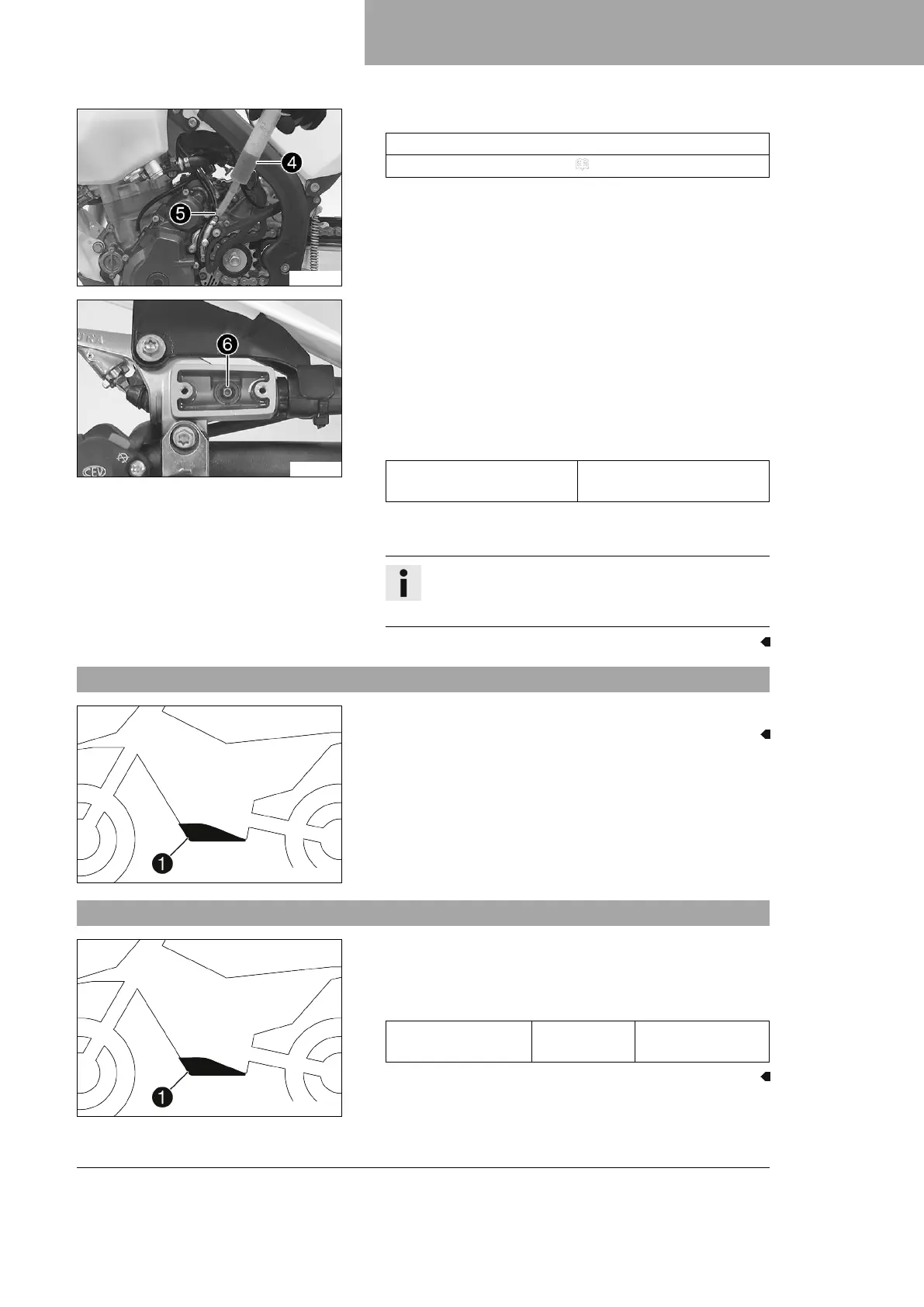

SERVICE WORK ON THE CHASSIS 12
85
S02086-10
–
Fill bleeding syringe
4
with the appropriate hydraulic fluid.
Syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 145)
–
On the clutch slave cylinder, remove bleeder screw
5
and
mount bleeding syringe
4
.
F00324-10
– Now press the fluid into the system until it emerges from the
hole
6
of the master cylinder without bubbles.
– Now and then, extract fluid from the master cylinder reservoir
to prevent overflow.
– Remove the bleeding syringe. Mount and tighten screws
bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container
rim
4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
12.44 Removing the engine guard
H01655-01
–
Remove screws
1
and engine guard.
12.45 Installing the engine guard
H01655-01
– Attach the engine guard on the frame at the rear and swing
up at the front.
–
Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

Husqvarna FE 250 Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	78 mm x 52.3 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Ground Clearance	370 mm
Seat Height	950 mm
Displacement	249.9 cc
Fuel System	Keihin EFI
Frame	chrome molybdenum steel
Fuel Tank Capacity	8.5 L
