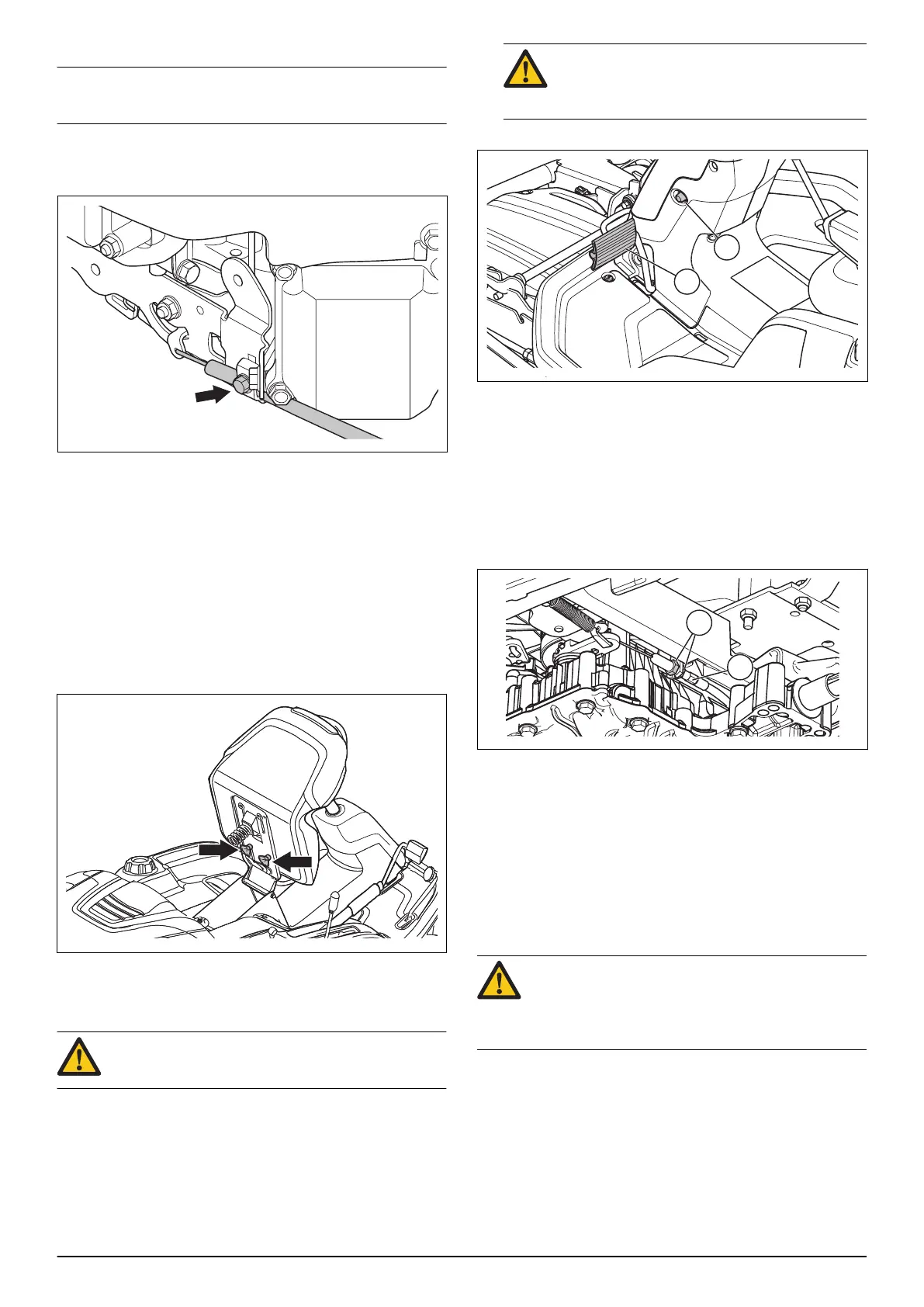

9.1.2.2 To adjust the throttle cable
Note: The throttle cable looks different on different
engine models.
1. Loosen the clamp screw for the cable casing on the
throttle cable and move the throttle control to the full
throttle position.
2. Make sure that the throttle cable is attached to the
correct hole.
3. Pull the cable casing on the throttle cable away from
the hole and tighten the clamp screw.
9.1.3 Seat
9.1.3.1 To adjust the seat
The seat can be tilted forward. It can also be adjusted
forward and rearward. Loosen the handles below the
seat to adjust it forward or rearward.
9.1.4 Parking brake
9.1.4.1 To examine the parking brake
WARNING: The brake effect can decrease if the
parking brake is not correctly adjusted.
1. Park the product on a slope with a hard surface.
WARNING: Do not park the product on a
grass slope when you do a check of the
parking brake.
2. Push the parking brake pedal (A) down.
3. Push and hold the lock button (B).
4. Release the parking brake pedal while you push the
lock button (B).
5. If the product moves, adjust the parking brake.
9.1.4.2 To adjust the parking brake
1. Loosen the parking brake locknuts (A) on the
adjustment screw (B).
2. Hold the adjustment screw (B) and turn the locknuts
(A) until the cable is tight.
3. Tighten the parking brake locknuts (A).
4. Examine the parking brake after the adjustment.
Refer to
To examine the parking brake on page 20
.
9.1.5 Wheel hub
9.1.5.1 To remove and install the wheels
CAUTION: The dimension of the spacers and
the number of washers can change between
different wheels. Do not mix parts from different
wheels.
1. Put supports below the product. Refer to
To put
supports below the product on page 6
.
2. Remove the protective cap.
20 - Repair instructions 1676 - 001 - 26.11.2021
