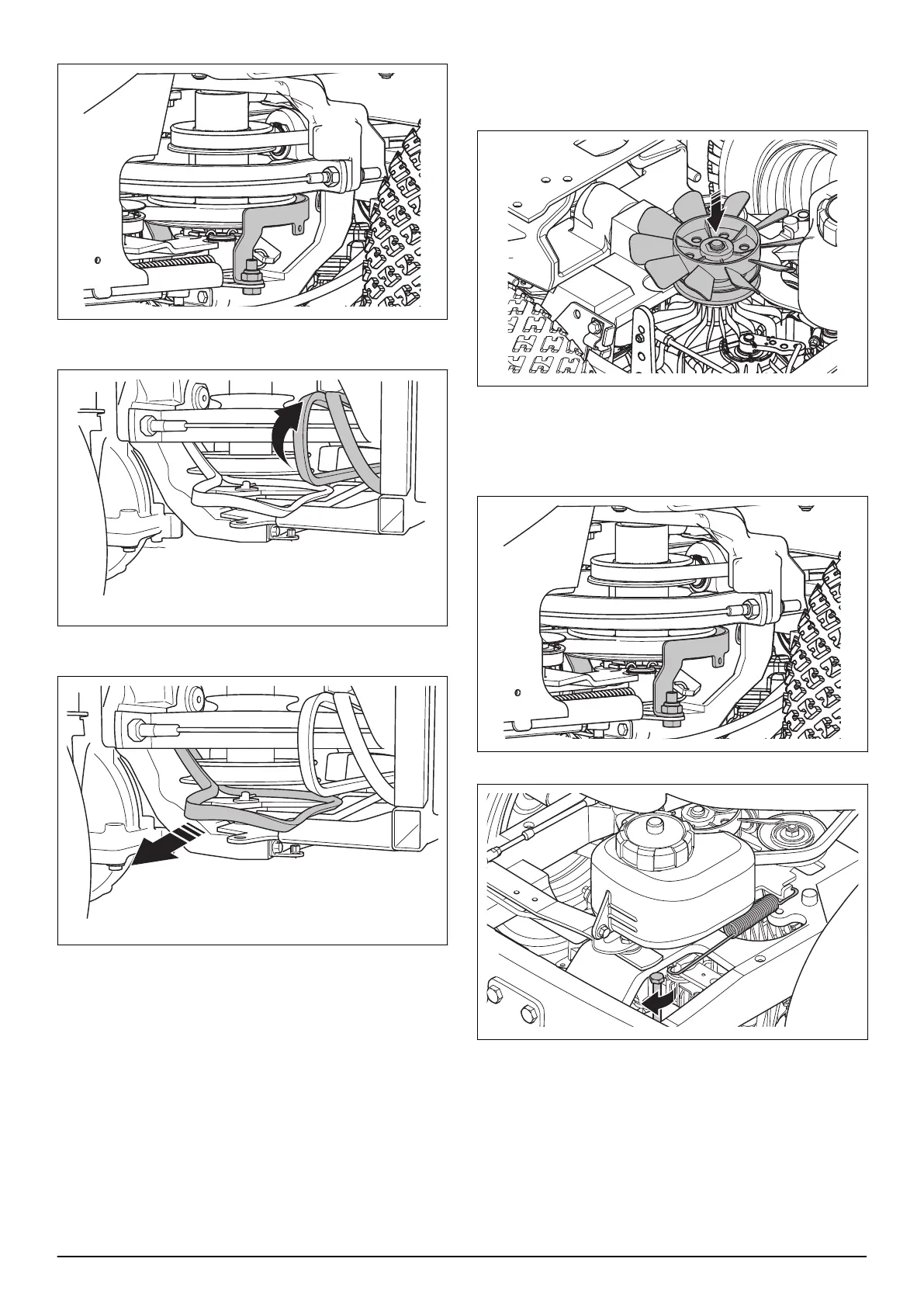

7. Remove the belt guide for the main belt.
8. Pull the main belt from the engine pulley and put it to
the side.
9. Pull the transmission belt off the engine pulley and
move it below the engine belt pulley.
10. Pull out the transmission belt through the opening
below the pivot bearing and in the direction of the
hydrostatic transmission pulley.
9.9.4 To install the transmission belt
1. Pull the transmission belt through the opening below
the pivot bearing and in the direction of the
hydrostatic transmission pulley.
2. Pull the transmission belt below the engine belt
pulley and put it on the engine belt pulley.
3. Put the transmission belt on the hydrostatic
transmission pulley and on the belt tensioner.
4. Attach the cooling fan and the snap ring for the
cooling fan.
5. Do a check that the main belt is installed correctly on
the front pulley.
6. Attach the main belt on the engine pulley.
7. Attach the belt guide for the main belt.
8. Attach the spring.
46 - Repair instructions 1676 - 001 - 26.11.2021
