Husqvarna TE 250i User Manual

15 ELECTRICAL SYSTEM
118

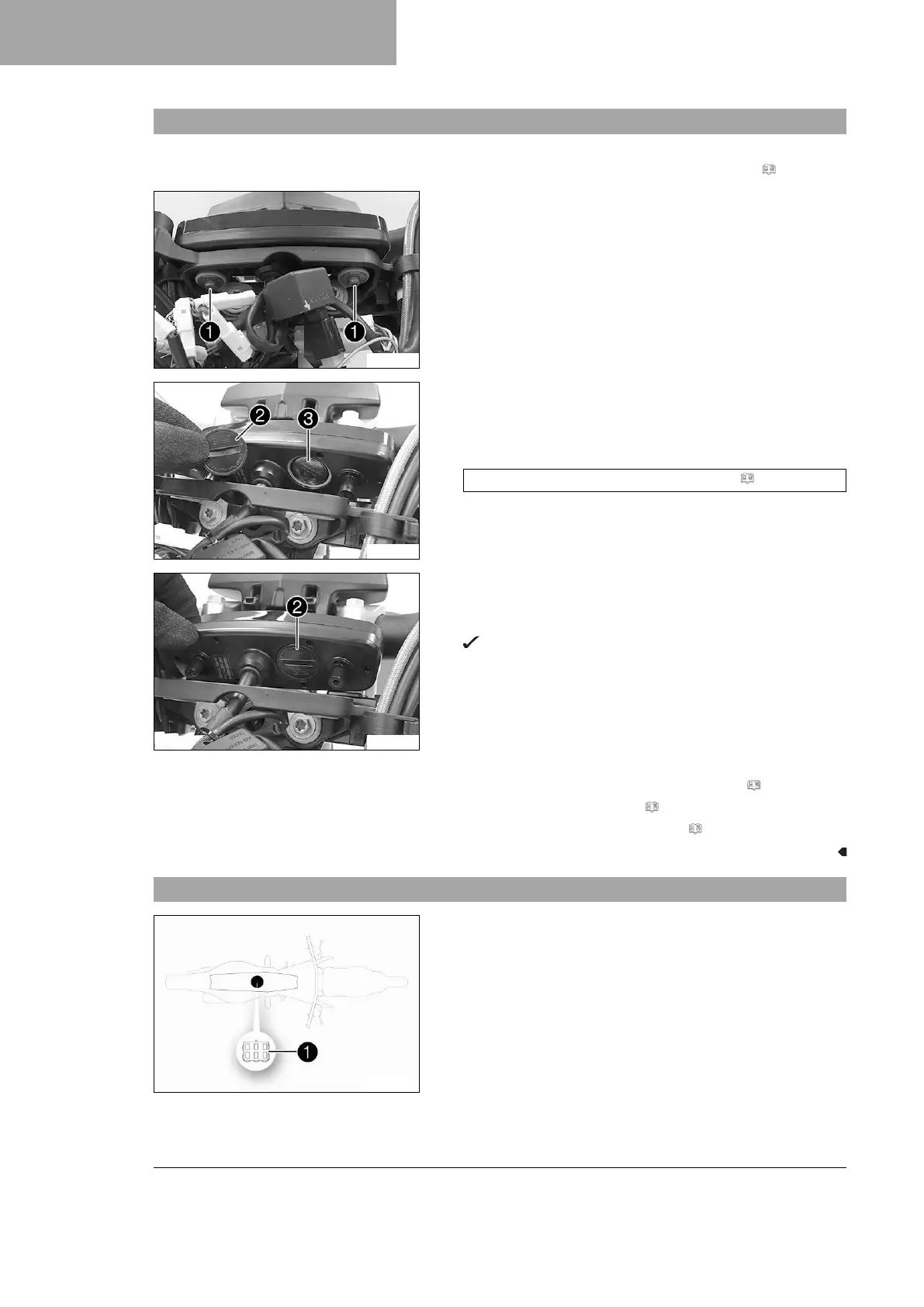

15.12 Changing the combination instrument
Preparatory work
– Remove the headlight mask with the headlight. ( p. 113)
V00961-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
V00962-10
–
Using a coin, turn protection cap
2
all the way counter-
clockwise and remove it.
–
Remove combination instrument
3
.
– Insert the new battery with the label facing outward.
Combination instrument battery (CR 2032) ( p. 148)
– Check the O-ring of the protection cap for correct seating.
V00963-10
–
Position protection cap
2
and turn all the way clockwise
using a coin.
– Press any button on the combination instrument.
The combination instrument is activated.
– Position the combination instrument in the holder.
– Mount and tighten the screws with washers.
Finishing work
– Install the headlight mask with the headlight. ( p. 114)
– Check the headlight setting. ( p. 117)
– Adjust the combination instrument. ( p. 25)
15.13 Diagnostics connector
H00933-12
Diagnostics connector
1
is located under the seat.

Husqvarna TE 250i Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Front Wheel	21"
Rear Wheel	18"
Fuel System	Electronic Fuel Injection
Clutch	Wet, Multi-Disc DDS Clutch, Magura Hydraulics
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR USD Forks, 48 mm Diameter
Fuel Tank Capacity	8.5 liters
