Husqvarna TE 250i User Manual

13 BRAKE SYSTEM
94
K00935-11
–

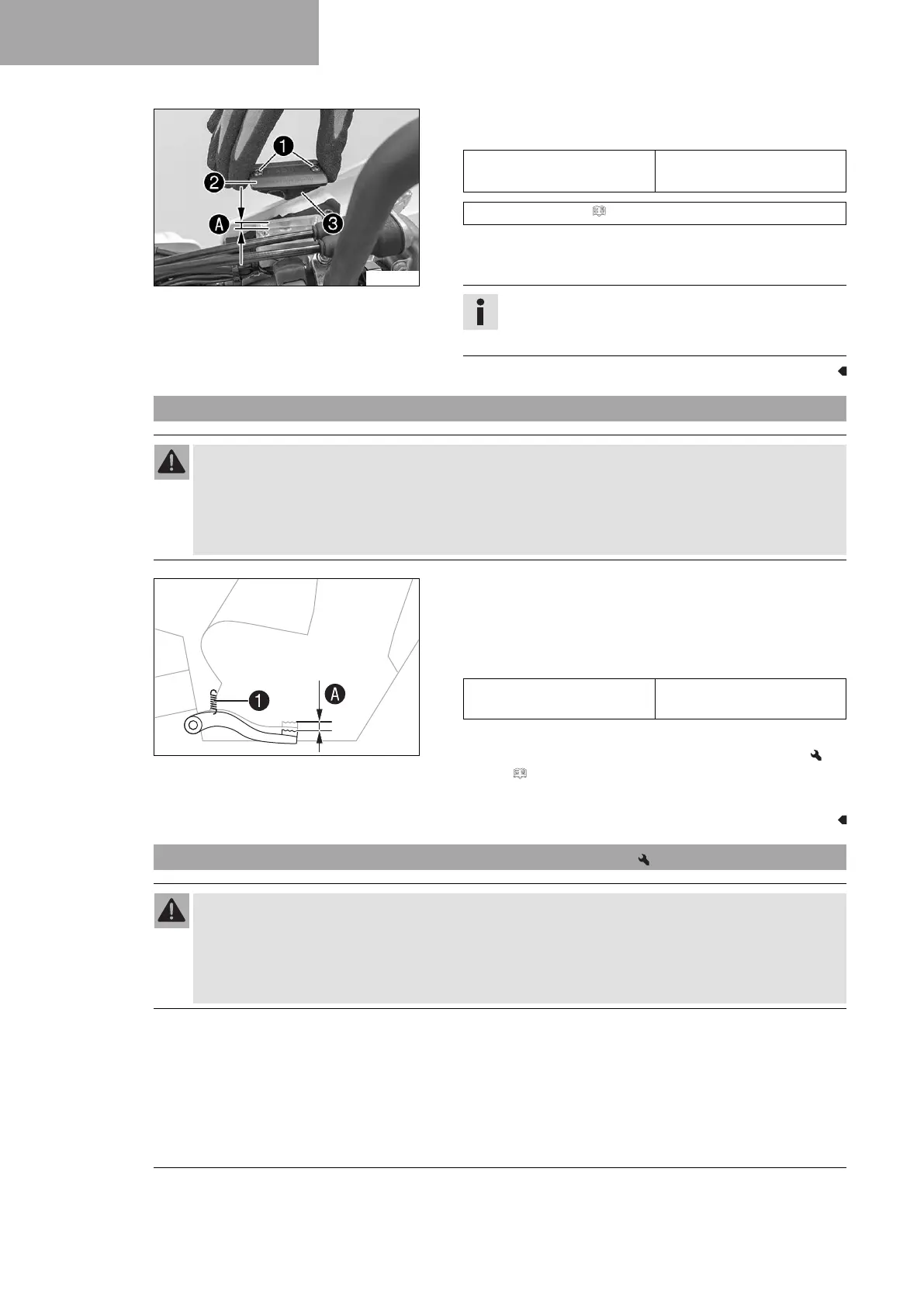

Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 ( p. 152)
–
Position cover
2
with membrane
3
.
–
Mount and tighten screws
1
.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
13.7 Checking the free travel of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
402026-10
–
Disconnect spring
1
.
– Move the foot brake lever backwards and forwards between
the end stop and the foot brake cylinder piston bracket and
check free travel
A
.
Guideline
Free travel of foot brake
lever
3 … 5 mm (0.12 … 0.2 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the foot brake lever.
( p. 94)
–
Reconnect spring
1
.
13.8 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.

Husqvarna TE 250i Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Front Wheel	21"
Rear Wheel	18"
Fuel System	Electronic Fuel Injection
Clutch	Wet, Multi-Disc DDS Clutch, Magura Hydraulics
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR USD Forks, 48 mm Diameter
Fuel Tank Capacity	8.5 liters
