Husqvarna TE 250i User Manual

17 TUNING THE ENGINE
129

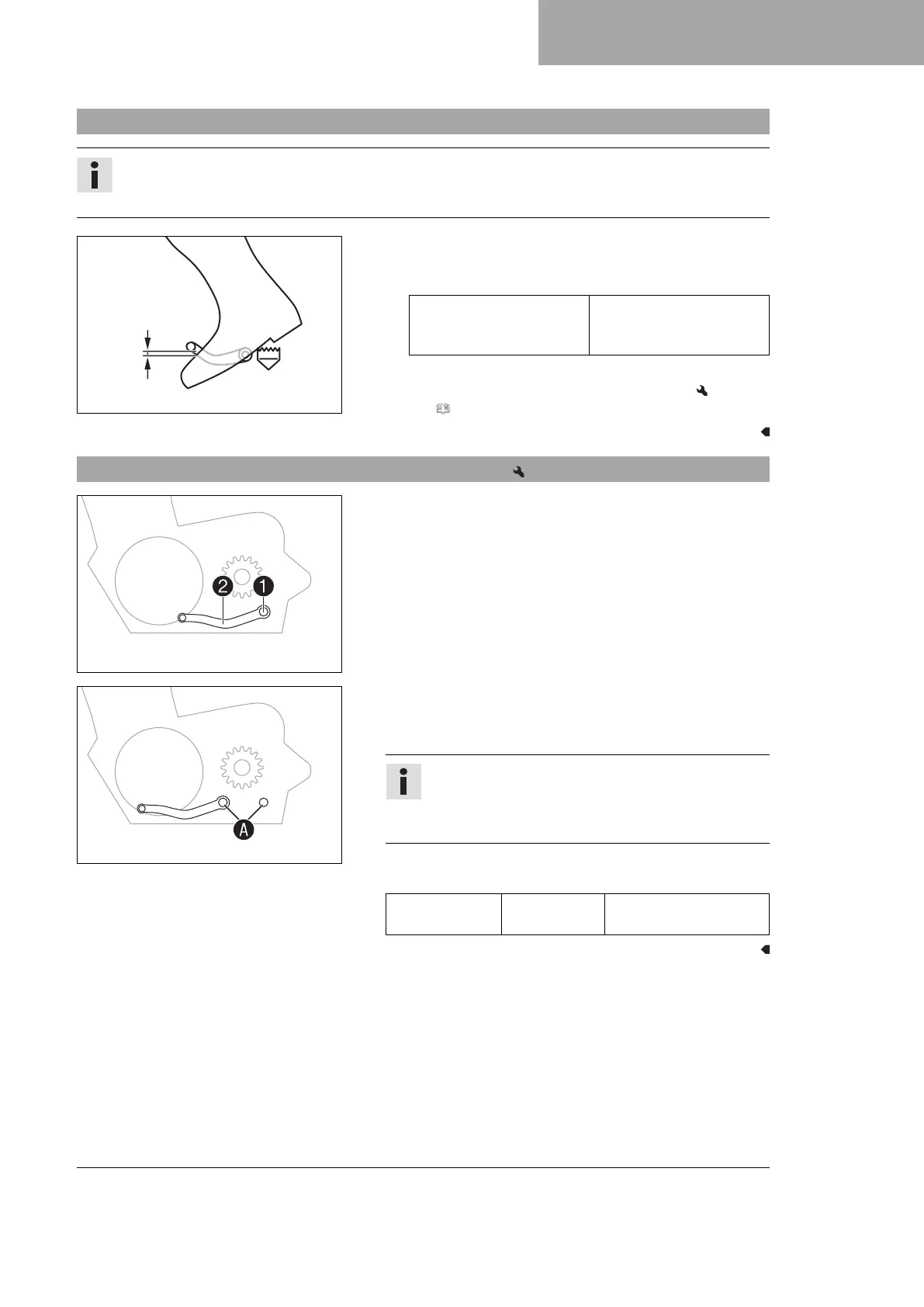

17.8 Checking the basic position of the shift lever
Info
When driving, the shift lever must not touch the rider's boot when in the basic position.
When the shift lever keeps touching the boot, the transmission will be subject to an excessive load.
00
0
AA
400692-10
– Sit on the vehicle in the riding position and determine
distance
A
between the upper edge of your boot and the
shift lever.
Distance between shift
lever and upper edge of
boot
10 … 20 mm (0.39 …
0.79 in)
» If the distance does not meet specifications:
– Adjust the basic position of the shift lever.
( p. 129)
17.9 Adjusting the basic position of the shift lever
401950-12
–
Remove screw
1
with the washers and take off shift
lever
2
.
401951-10
–
Clean gear teeth
A
of the shift lever and shift shaft.
– Mount the shift lever on the shift shaft in the required position
and engage the gearing.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any
other vehicle components during the shift procedure.
–
Mount and tighten screw
1
with washers.
Guideline
Screw, shift
lever
M6 14 Nm (10.3 lbf ft)
Loctite
®
243™

Husqvarna TE 250i Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Front Wheel	21"
Rear Wheel	18"
Fuel System	Electronic Fuel Injection
Clutch	Wet, Multi-Disc DDS Clutch, Magura Hydraulics
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR USD Forks, 48 mm Diameter
Fuel Tank Capacity	8.5 liters
