Husqvarna TE 250i User Manual

12 SERVICE WORK ON THE CHASSIS
63
– Adjust the play of the steering head bearing.
( p. 63)
– Check the steering head bearing and change if neces-
sary.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 56)

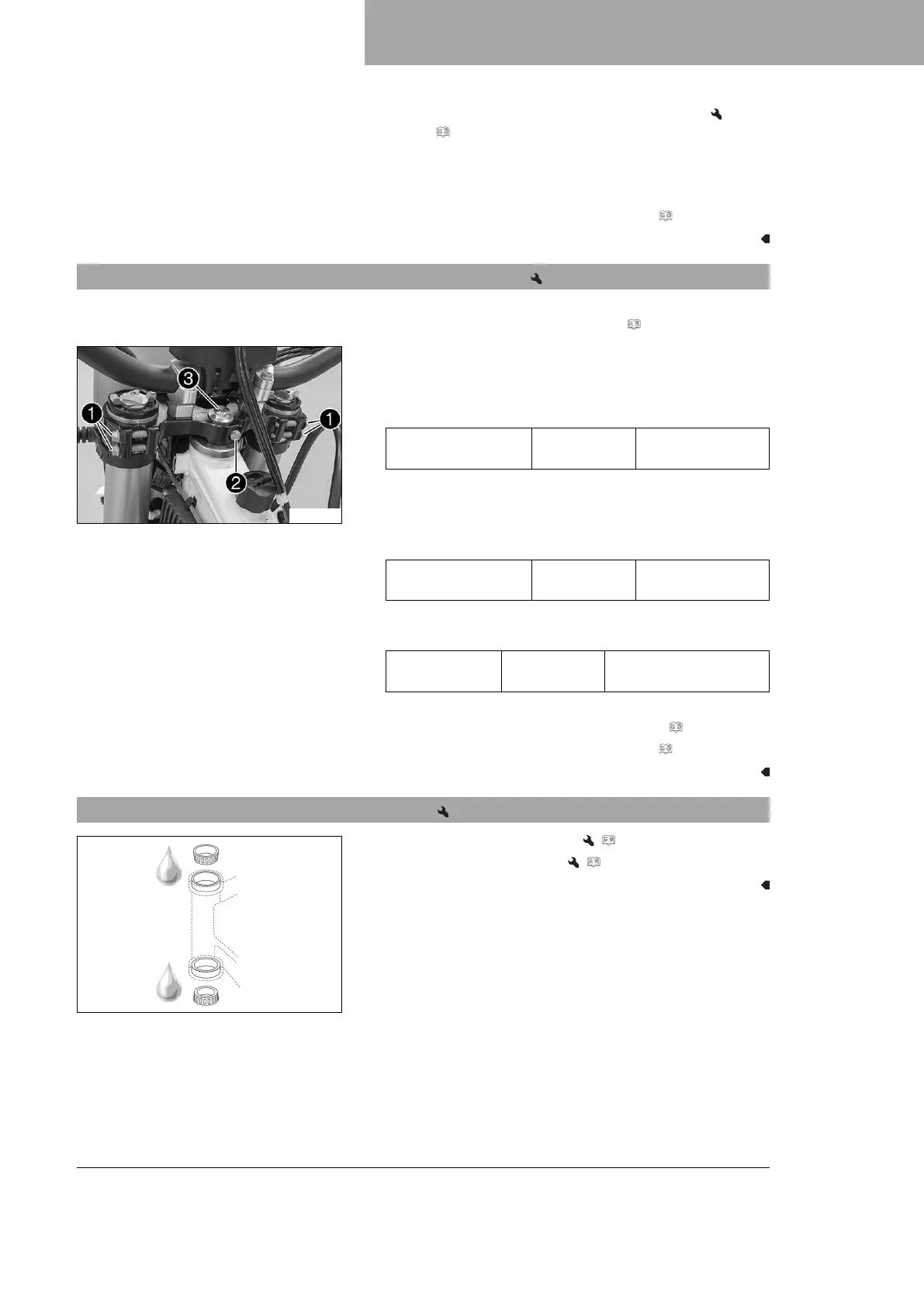

12.12 Adjusting the play of the steering head bearing
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 56)
K00932-10
Main work
–
Loosen screws
1
. Remove screw
2
.
–
Loosen and retighten screw
3
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid strains.
–
Tighten screws
1
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
–
Mount and tighten screw
2
.
Guideline
Screw, top
steering stem
M8 17 Nm (12.5 lbf ft)
Loctite
®
243™
Finishing work
– Check the play of the steering head bearing. ( p. 62)
– Remove the motorcycle from the lift stand. ( p. 56)
12.13 Greasing the steering head bearing
H02387-01
– Remove the lower triple clamp. ( p. 59)
– Install the lower triple clamp. ( p. 60)

Husqvarna TE 250i Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Front Wheel	21"
Rear Wheel	18"
Fuel System	Electronic Fuel Injection
Clutch	Wet, Multi-Disc DDS Clutch, Magura Hydraulics
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR USD Forks, 48 mm Diameter
Fuel Tank Capacity	8.5 liters
