Husqvarna TE 250i User Manual

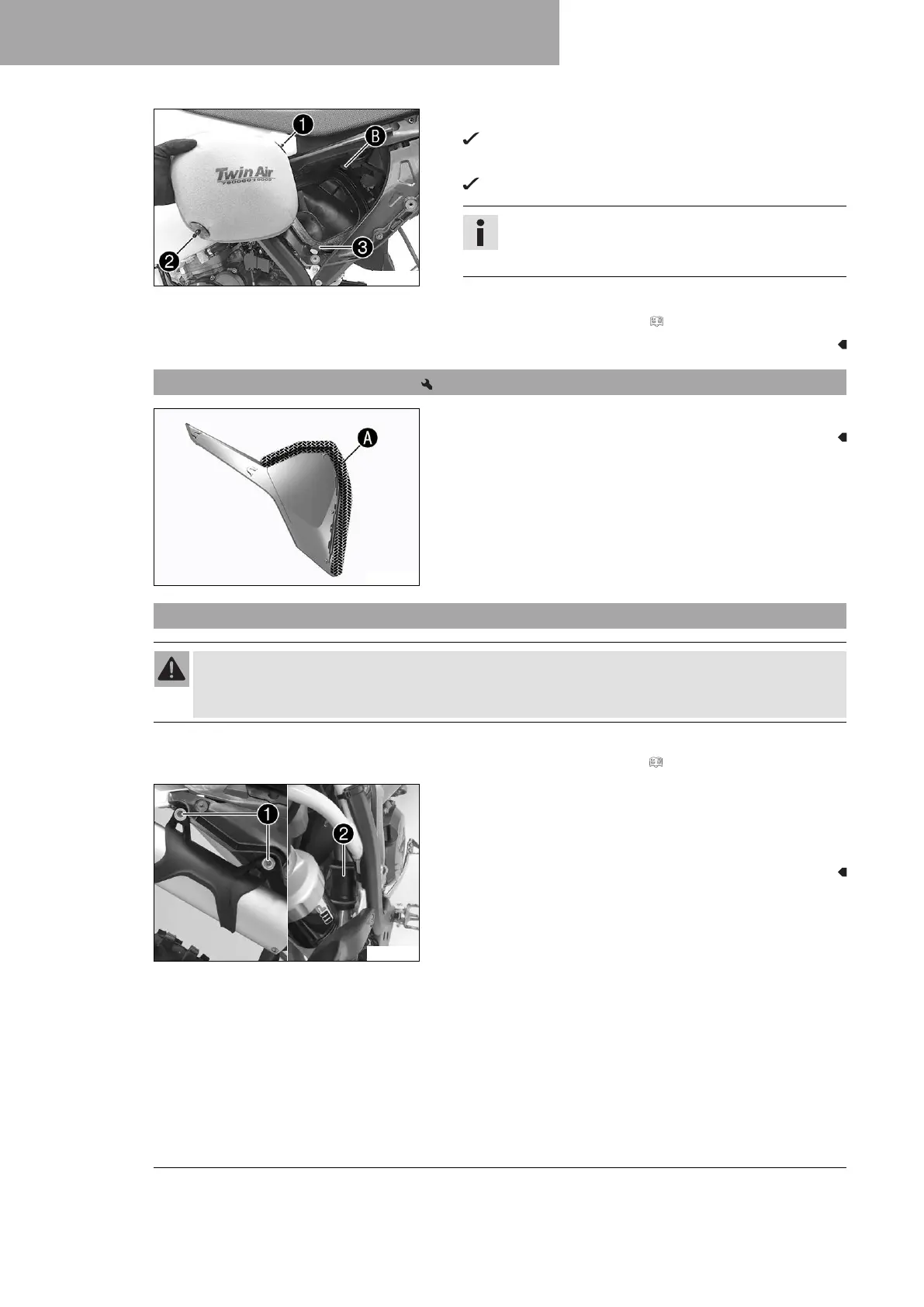

12 SERVICE WORK ON THE CHASSIS
72
V00907-10
–
Insert air filter and position retaining pin
1
in bushing
B
.
The air filter is correctly positioned.
–
Insert retaining tab
3
.
Retaining pin
2
is secured with retaining tab
3
.
Info
If the air filter is not mounted correctly, dust and dirt
may enter the engine and result in damage.
Finishing work
– Install the air filter box cover. ( p. 70)
12.25 Sealing the air filter box
F00248-01
–
Seal the air filter box in the marked area
A
.
12.26 Removing the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down before performing any work on the vehicle.
Preparatory work
– Remove the right side cover. ( p. 74)
V00908-10
Main work
–
Remove screws
1
with the washers.
–
Pull off the main silencer at the rubber sleeve
2
and the
spring ring from the manifold.

Husqvarna TE 250i Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Front Wheel	21"
Rear Wheel	18"
Fuel System	Electronic Fuel Injection
Clutch	Wet, Multi-Disc DDS Clutch, Magura Hydraulics
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR USD Forks, 48 mm Diameter
Fuel Tank Capacity	8.5 liters
