Husqvarna TE 250i User Manual

11 TUNING THE CHASSIS
48

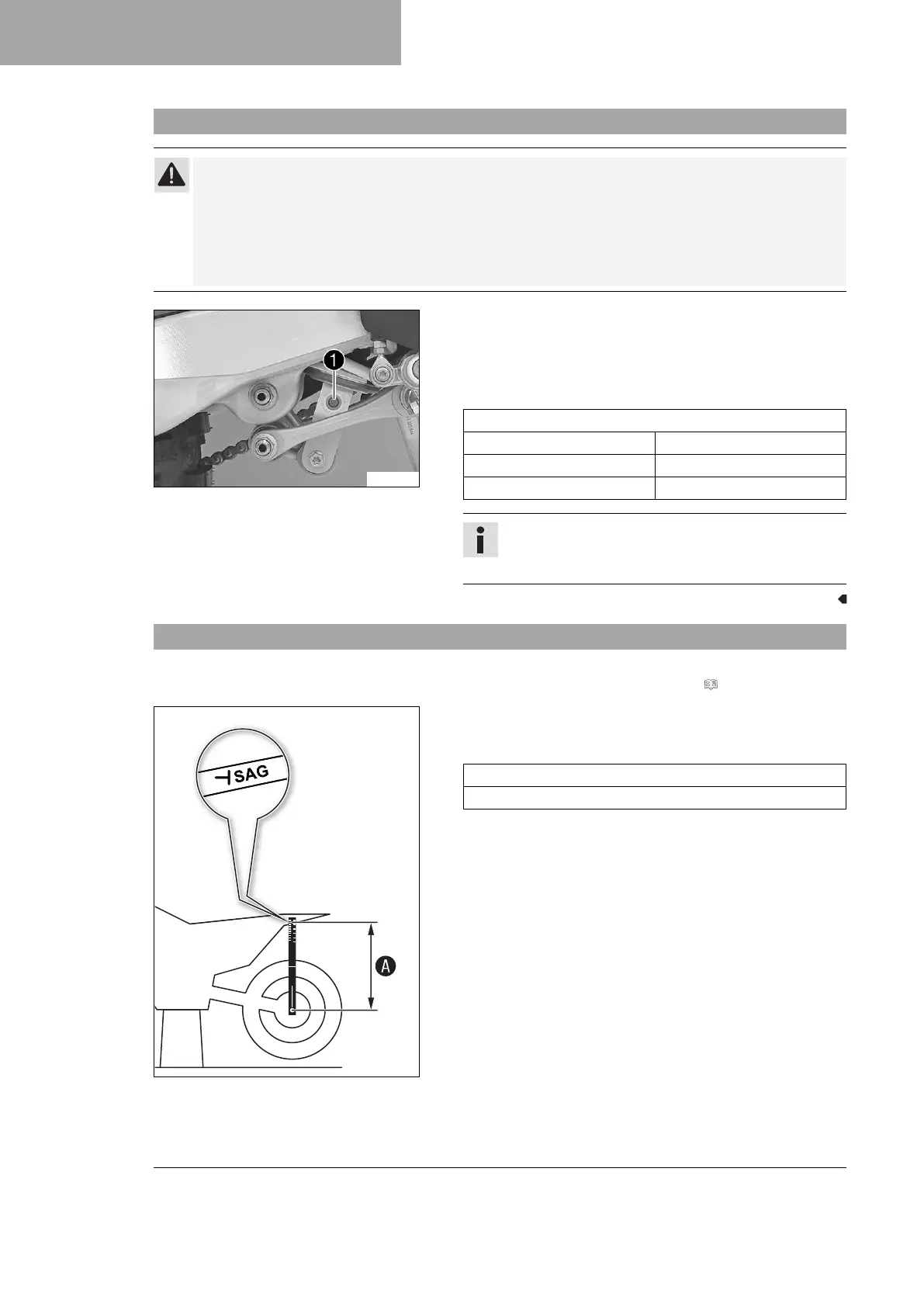

11.5 Adjusting the rebound damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will fly off if the shock absorber is disassembled incor-
rectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized Husqvarna Motorcycles workshop will be
glad to help.)
F00271-10
–
Turn adjusting screw
1
clockwise up to the last perceptible
click.
– Turn counterclockwise by the number of clicks correspond-
ing to the shock absorber type.
Guideline
Rebound damping
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping.
11.6 Measuring the rear wheel dimension unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 56)
402415-10
Main work
– Position the sag gauge in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090500)
Pin for sag gauge (00029990010)
–
Note down the value as dimension
A
.

Husqvarna TE 250i Specifications

General

Engine Type	Single cylinder, 2-stroke
Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Front Wheel	21"
Rear Wheel	18"
Fuel System	Electronic Fuel Injection
Clutch	Wet, Multi-Disc DDS Clutch, Magura Hydraulics
Frame	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XPLOR USD Forks, 48 mm Diameter
Fuel Tank Capacity	8.5 liters
