P/N 3110586_A 2-1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
ISMGG2DAA Merchandisers
MERCHANDISER ELECTRICAL DATA
Refer to Appendix A of this manual or the
merchandiser’s serial plate for electrical
information.
FIELD WIRING
Field wiring must be sized for component
amperes stamped on the serial plate. Actual
ampere draw may be less than specified.
ELECTRICAL CONNECTIONS
All wiring must be in compliance with NEC
and local codes. All electrical connections (for
remote models) are to be made in the electrical
Handy Box located behind the removable base
panel at the left end of the merchandiser when
facing the discharge air louver.
ELECTRICAL OUTLET
Before the merchandiser is connected to any
wall circuit, use a voltmeter to check that the
outlet is at 100% of the rated voltage. The wall
circuit must be dedicated for the merchandiser.
Failure to do so voids the warranty. Do not
use an extension cord. Never plug in more
than one merchandiser per electrical circuit.
• Always use a dedicated circuit with the
amperage stated on the unit.
• Plug into an outlet designed for the plug.
• Do not overload the circuit
• Do not use long or thin extension cords.
Never use adapters.
• If in doubt, call an electrician.
Self-contained models have factory-installed
power cords attached at the electrical box.
REFRIGERATION
Each self contained model is equipped with
its own condensing unit and control panel
located beneath the display area. The
merchandiser refrigeration piping is leak
tested. The unit is charged with refrigerant
and shipped from the factory with all service
valves open. All models have a hermetic com-
pressor. The systems employ capillary tubes
for refrigerant flow control.
ELECTRICAL / REFRIGERATION
ALWAYS CHECK THE SERIAL PLATE FOR
COMPONENT AMPERES
Risk of Electric Shock. If cord or plug
becomes damaged, replace only with
a cord and plug of the same type.
Merchandiser must be grounded.
Do not remove the power supply cord ground.

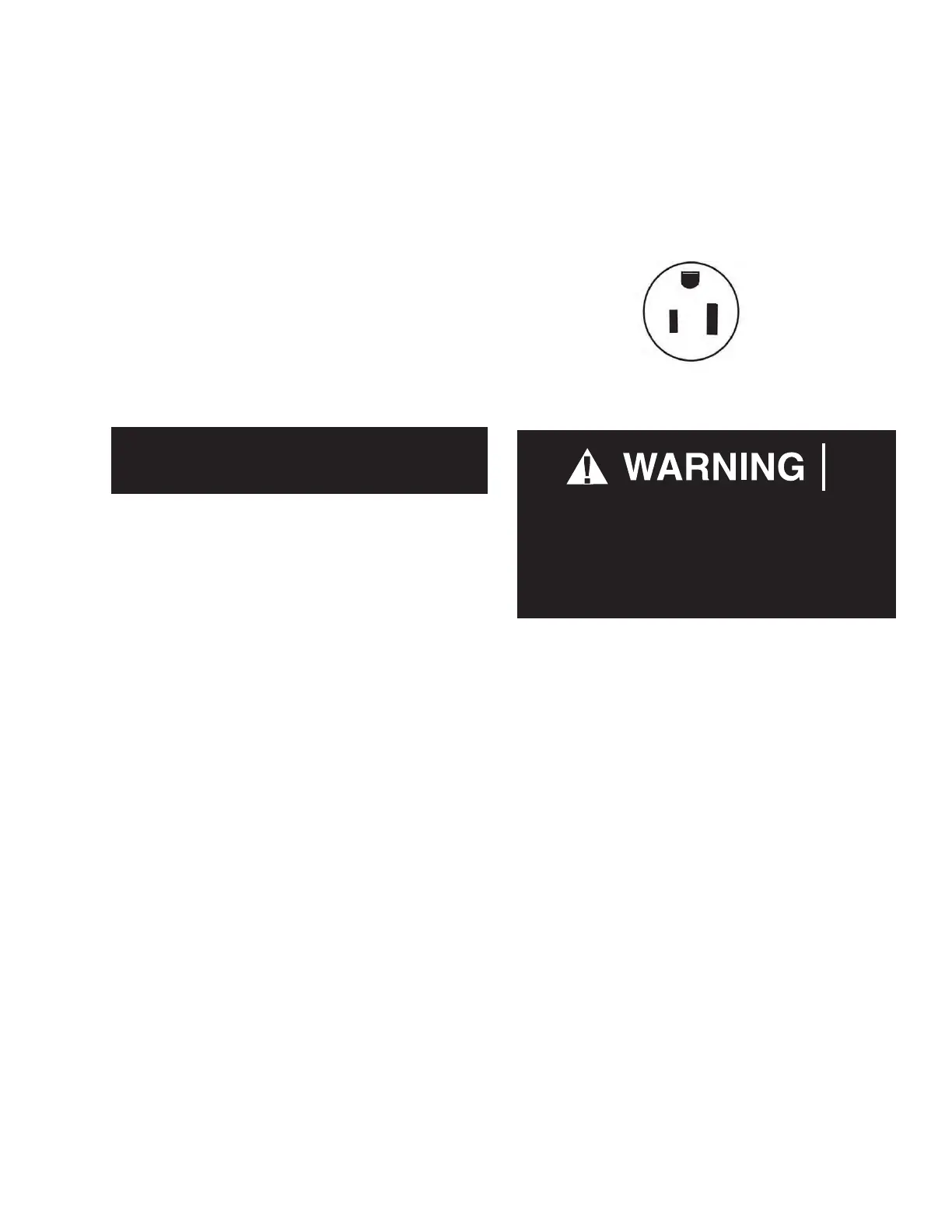

NEMA 5-15P
Electrical Plug
