P/N 3110586_A 1-7
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
ISMGG2DAA Merchandisers

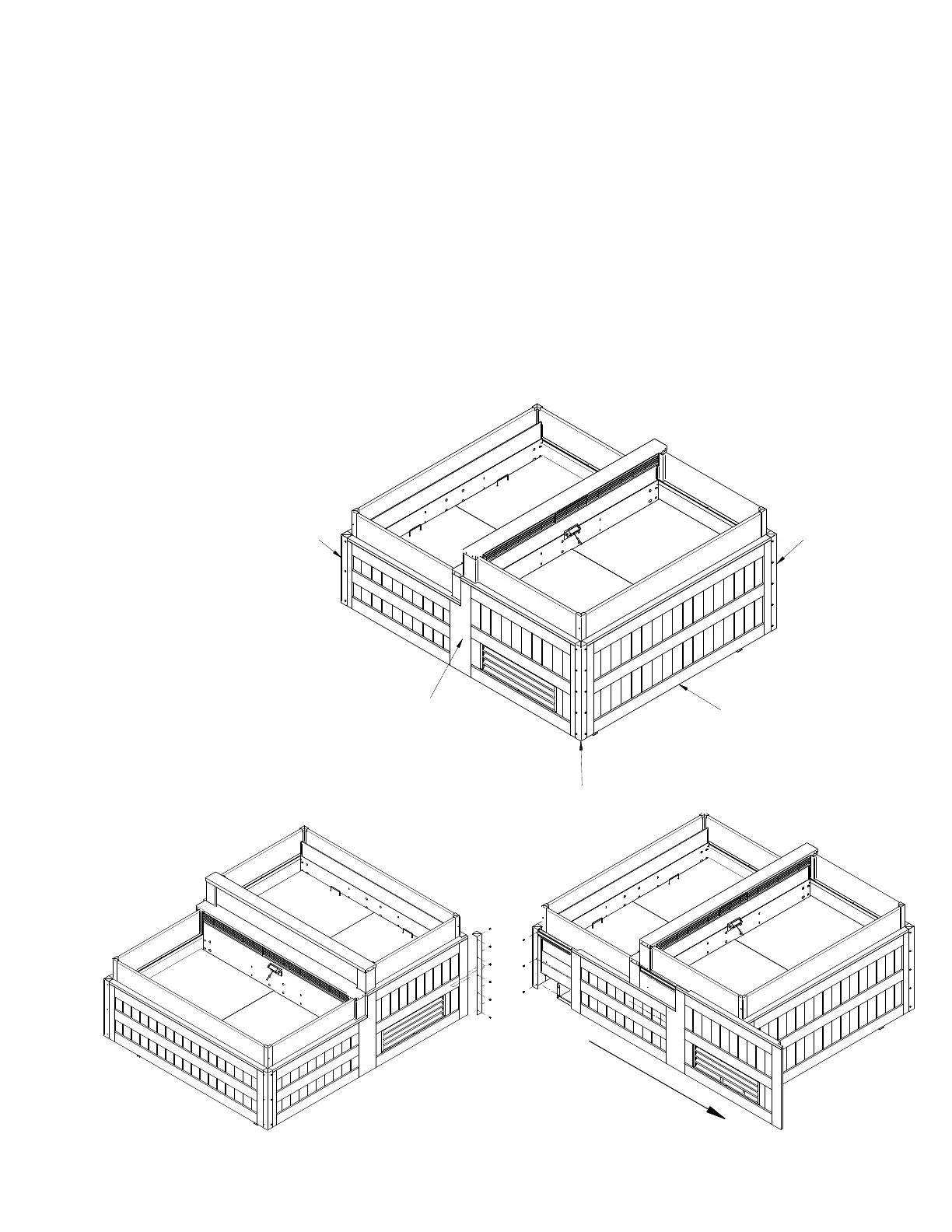

CONDENSING UNIT ACCESS
WOOD PANEL FRONT
CORNER HIGH SIDE RH
CORNER LOW SIDE LH
WOOD PANEL END LH
CORNER HIGH SIDE LH
To access the condensing unit and electrical box, it is necessary remove the wood panel front and wood
panel end (LH).
To do this:
1. Using a screwdriver or cordless drill, remove all the screws from Corner High Side LH.
2. Remove screws from corner low side (LH), only the ones attached to wood panel end (LH).
3. Carefully pull the Wood Panel End LH to the right.
GDF 3.0 SHEET SIZE D
NOTES:
1. APPLICABLE STANDARDS / SPECIFICATIONS
ASME Y14.5M-1994, DIMENSIONS AND TOLERANCES
2. KEY PRODUCT CHARACTERISTICS PER EPR-0006 & IDENTIFIED WITH SYMBOL
3. MATERIAL-
4. REF -
K
SHEET 3 OF 6
P/N
REV
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
R
PULL WOOD PANEL
END TO THE RIGHT
Pull Wood Front Panel
to the Right
CORNER LOWER SIDE LH
WOOD PANEL END LH
CORNER HIGH SIDE RH
WOOD PANEL FRONT
CORNER HIGH SIDE LH
To Next Page
