1-2 INSTALLATION
P/N 3110586_A U.S. & Canada 1-800-922-1919 • Mexico 01 800-890-2900 • www.hussmann.com
SELF CONTAINED LOCATION
Product should always be maintained at proper
temperature. This means that from the time
the product is received, through storage, prepa-
ration and display, the temperature of the
product must be controlled to maximize the
life of the product.
Self Contained models have vented base panels
to allow air circulation through the condensing
unit.

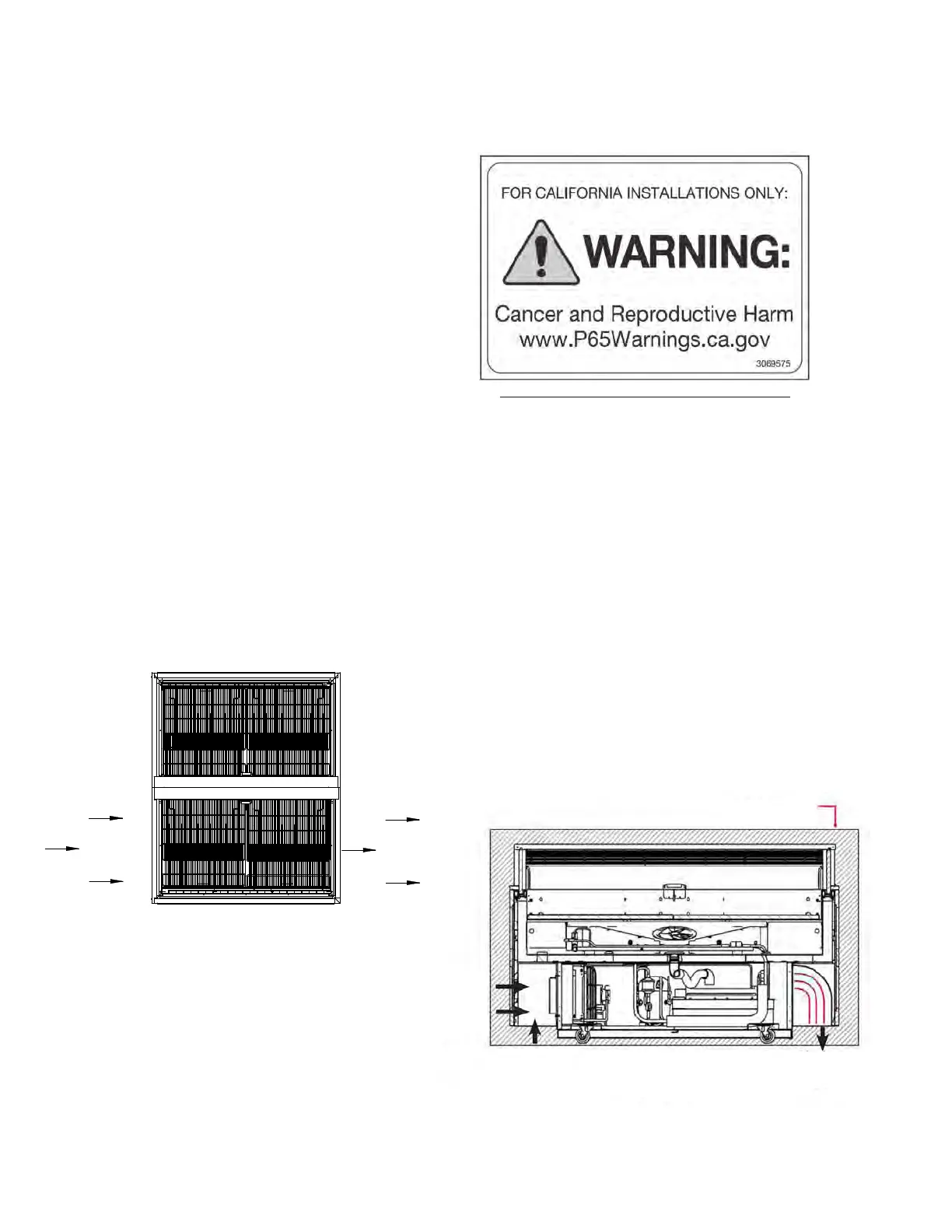

See illustrations for clearances distances from
walls, merchandisers, and any other large
objects near the merchandiser’s vented base
panels. Blocking or restricting air flow will
adversely affect performance and may damage
the refrigeration system.
These models need clearance a minimum of 1
inch on each side and at the back of the unit.
UPPER ISLAND
LOWER ISLAND
AIR INTAKE
AIR EXHAUST
This warning does not mean that Hussmann products
will cause cancer or reproductive harm, or is in
violation of any product-safety standards or
requirements. As clarified by the California State
government, Proposition 65 can be considered more of
a ‘right to know’ law than a pure product safety law.
When used as designed, Hussmann believes that our
products are not harmful. We provide the Proposition
65 warning to stay in compliance with California State
law. It is your responsibility to provide accurate
Proposition 65 warning labels to your customers when
necessary. For more information on Proposition 65,
please visit the California State government website.
August 31, 2018
Top View
Side View
Air intake
through
bottom grille
Air intake
through
side grille
FRONT VIEW
Keep discharge and intake areas free
from air currents.
Air exhaust near
bottom grille
4-inch Clearance
Air
intake
Air
exhaust
Lower Island
Upper Island
