Hussmann SMG8B - Replacing Single Pane Front Glass

P/N 3018126_E 5-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
SMG8B & SSG8B
REPLACING SINGLE PANE FRONT
GLASS (Requires more than one person.)
1. Raise the front glass to open completely.
2. Loosen all set screws along the inside
bottom of the glass clamp.
Note: All cylinders do not have to be removed
to remove the glass.
IMPORTANT
When reinstalling glass, be certain that:
1. Gasket is on glass evenly.
2. Glass bottom is fully in retainer.
3. When set screws are tightened, glass is
firmly held in place by the glass clamps.

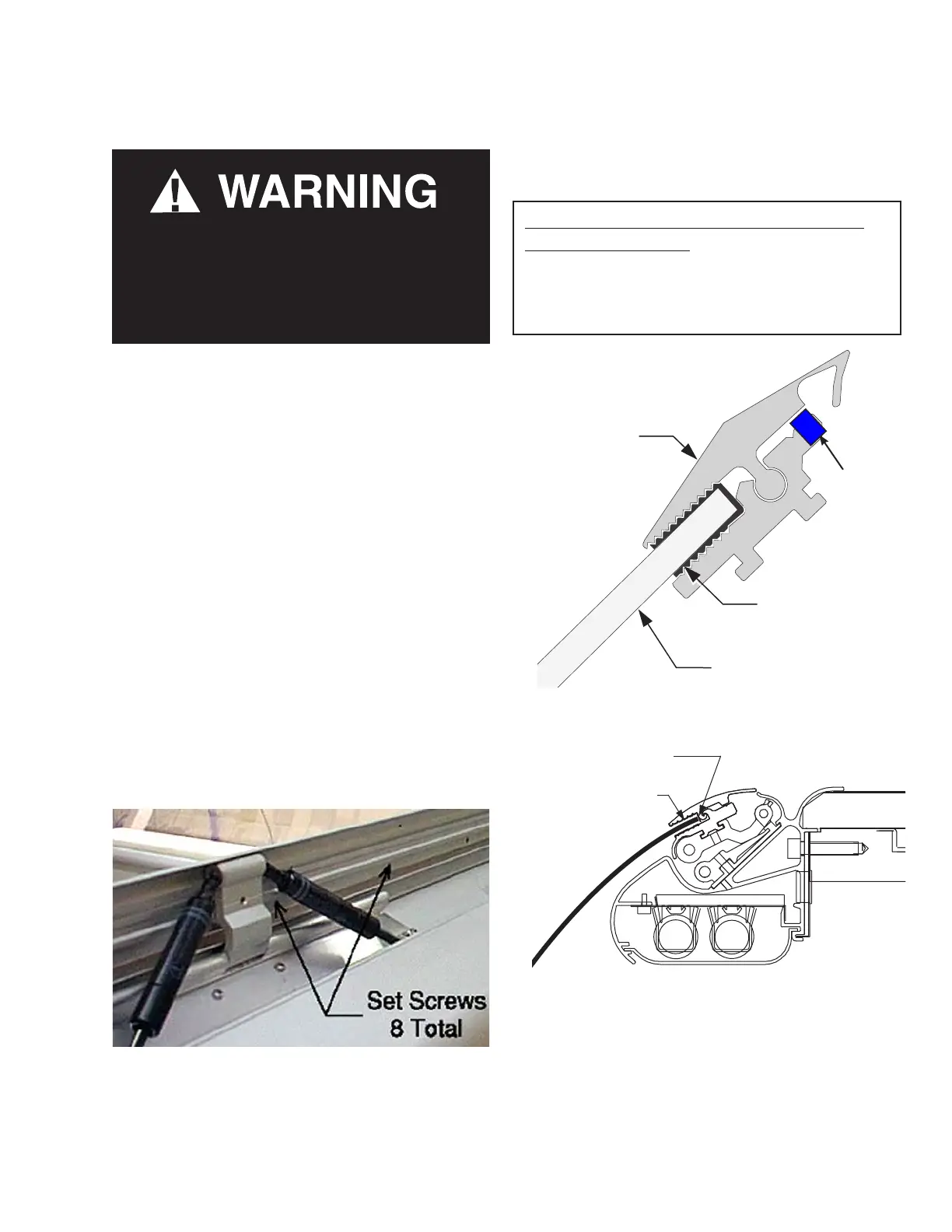

Set Screw Locations
Apply a drop of Loctite 242 or equivalent
threading locking fluid onto each set screw of
the glass clamp assembly. Tighten all screws
with a TORX T15 bit.
IMPORTANT: Tighten all glass clamp set
screws to 26 inch lbs. Verify bit is in good
condition and not worn out. When set screws
are tightened, glass is rmly held in place by
glass clamps.
Once set screws are loose, the glass
and glass clamp have NO support or
retainers. Support the front glass at all
times until the top glass clamp and set
screws are secured, or glass is removed.
Fully Engage Glass
in Clamp
Gasket
Glass
Gasket
Clamp
Clamp
Gasket
Glass
Set Screw
Location
