Hussmann SMG8B - Hinge Hardware Service

5-4 sErvIcE
P/N 3018126_E U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com

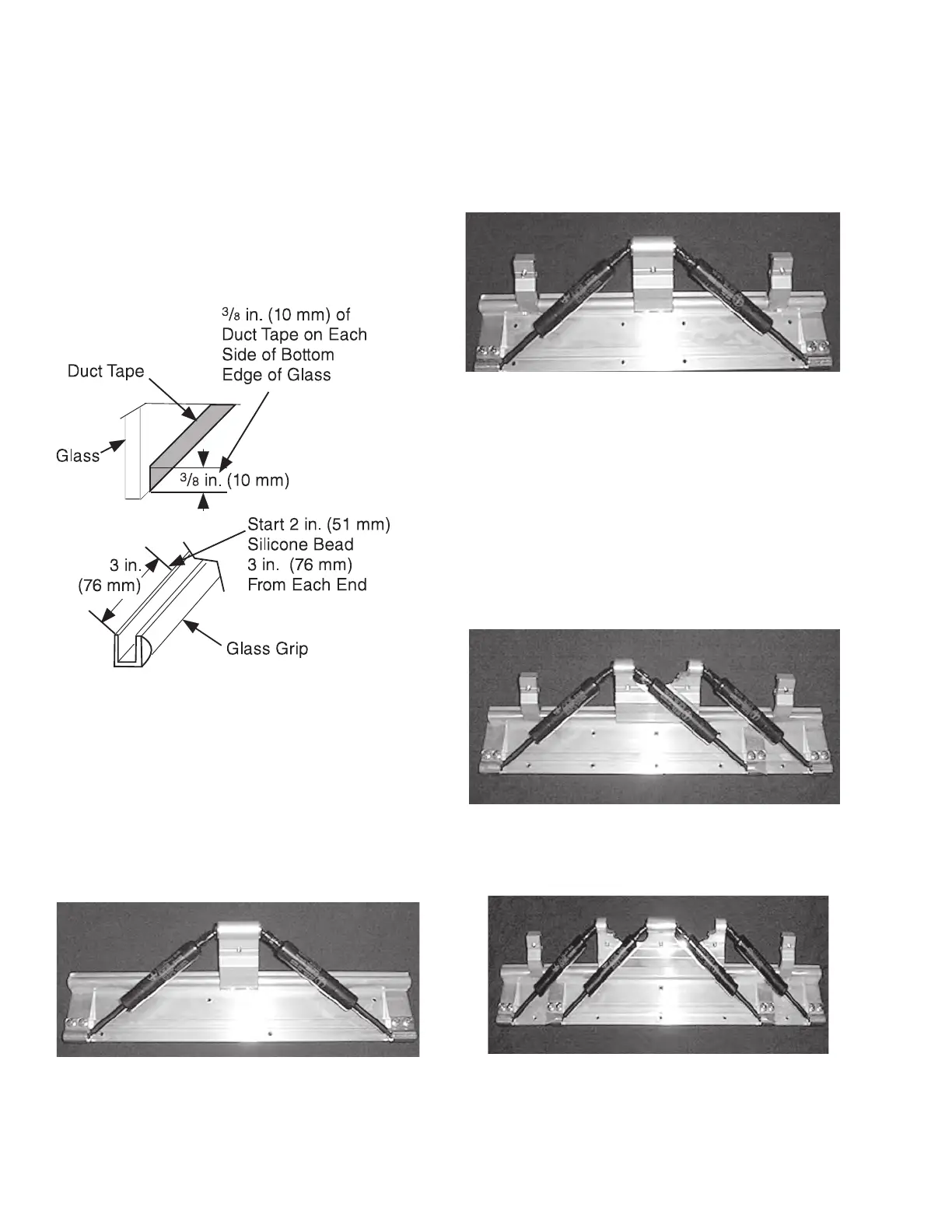

REPLACING GLASS HAND GRIP
The hand grip is fastened to the curved glass
as shown below. A 2inch (51mm) bead of
silicone needs to be placed 3inches (76mm)
from each end and in the center of the hand
grip. The duct tape is placed on the glass to
provide a tight fit.
HINGE HARDWARE
Type: Two cylinders and one fastening point.
P/N 0401884
Used on: 8 ft and 12 ft (2438 mm and 3658
mm) parent cases and as a joining bracket.
Type: Two cylinders and three fastening
points.
P/N 0407352
Used on: 30° outside wedge.
Type: Three cylinders and four fastening
points.
P/N 0412538
Used on 90° inside wedge, 45° outside and
inside wedge, 30° inside wedge.
Note: This hinge assembly, when used on
the 90° and 45° inside wedge, uses only two
cylinders.
Type: Four cylinders and five fastening
points.
P/N 0413170
Used On: 90° outside wedge.
