1-4 InstallatIon
P/N 3018126_E U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com
SERIAL PLATE LOCATION
The serial plate is located on the back of the
case on the left-hand side. The serial plate con-
tains information specific to the case as well
as a QR code that allows you to view replace-
ment parts and data sheets on a smart phone.
REFRIGERATION UNIT ACCESS
Panels on the front and rear of the case may be
removed by lifting the panel straight upward
to clear lower brackets, and then down to
remove. The panel is installed by reversing the
above procedure. Ensure all panels are installed
to prevent air circulation problems.
The case is shipped with the the front left
panel removed, and the two lower back panels
removed. These panels must be installed during
installation.

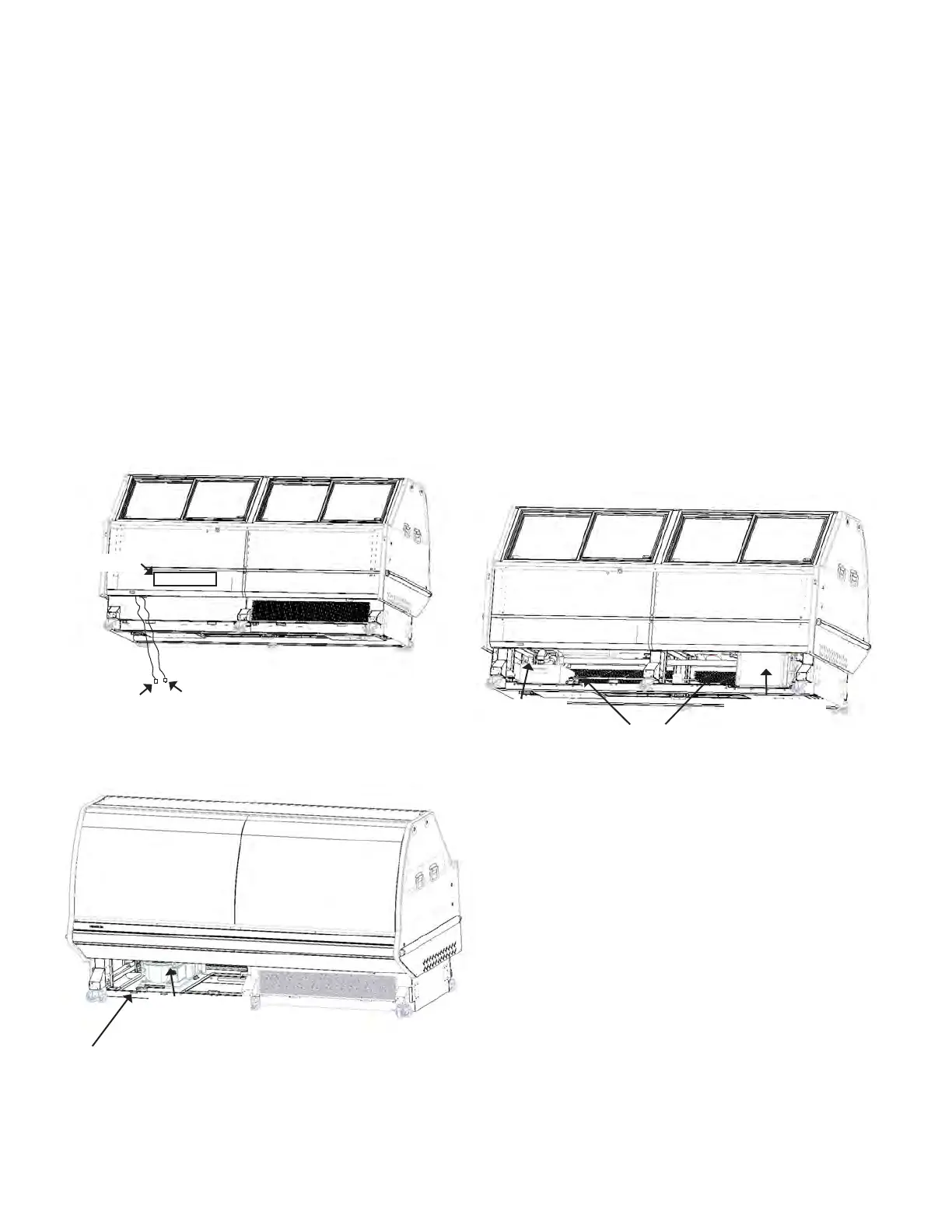

Serial Plate
Back View of Case
Optional
Drain Pan
Refrigeration
Unit Location
Back View of Case
Front View of Case
Refrigeration
Unit Location
Front panel shipped
removed and must be
installed in the eld.
Case Power
Cord
Convenience Outlet
Power Cord
Rear panels are shipped
removed and must be
installed in the eld.
