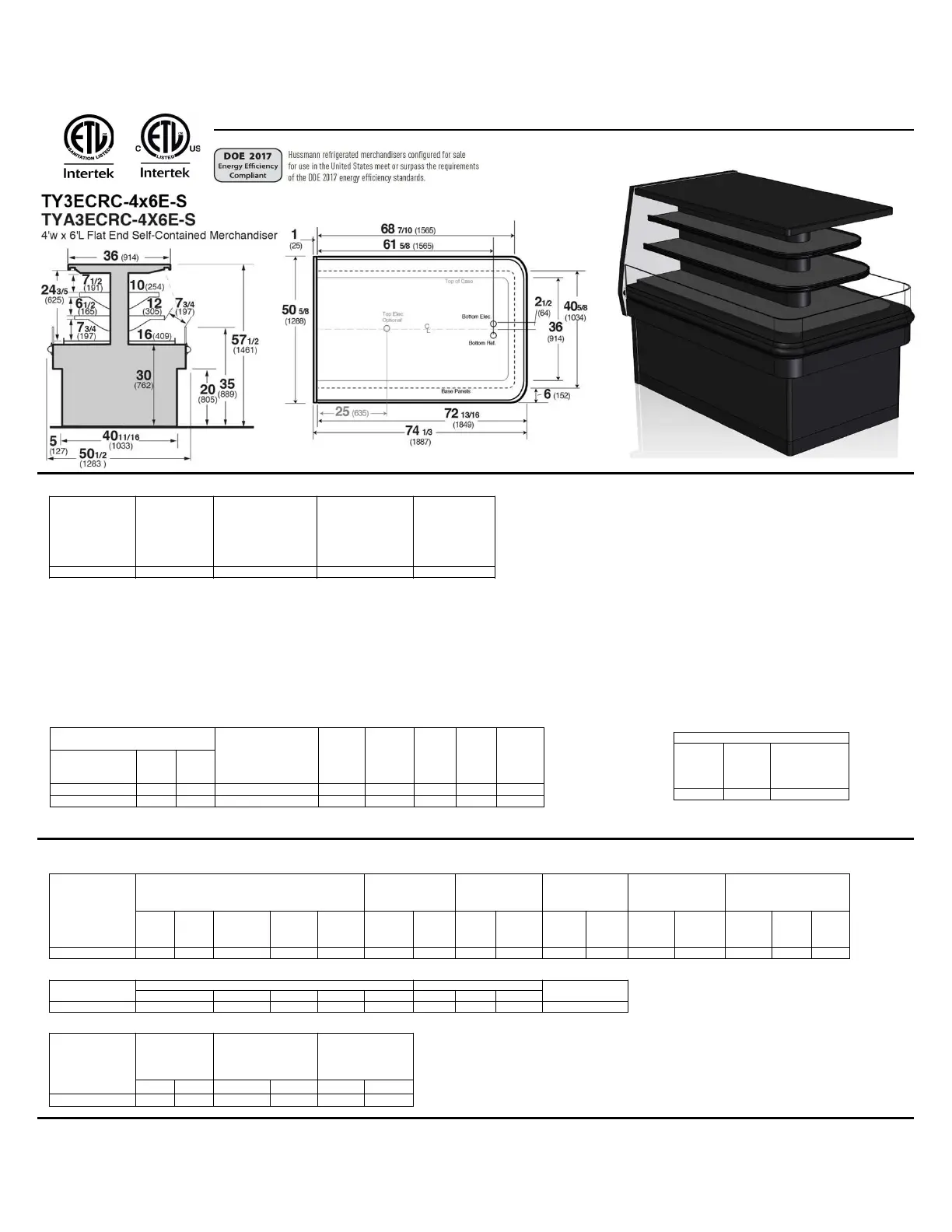

SELF-SERVICE DELI REVISION DATE 04/07/2021
HUSSMANN – TY(A)3ECRC-4X6E-S
REFRIGERATION DATA:
*FRONT DISCHARGE AIR MEASURED INSIDE AIR CURTAIN HONEYCOMB
**REFRIGERATION NOTES:
1) CAPACITY FOR REFERENCE ONLY.
2) USE DEW POINT FOR HIGH GLIDE REFRIGERANTS. CARE SHOULD BE TAKEN TO USE THE DEW POINT IN P/T TABLES
FOR MEASURING AND ADJUSTING SUPERHEAT. ADJUST EVAPORATOR PRESSURE AS NEEDED TO MAINTAIN THE
DISCHARGE AIR TEMPERATURE SHOWN.
3) RATING CONDITION IS NSF TYPE II, 80°F/55% RH
REFRIGERATION DATA CONTINUED:
4) DEFROST IS BASED ON TERMINATION TEMP, WHICH UNDER NORMAL CIRCUMSTANCES,
IS SHORTER THAN FAILSAFE TIME.
ELECTRICAL DATA:
STANDARD FANS, HEATERS, LED LIGHTS (115 VOLT)
CASE LENGTHS CASE USAGE
CONVENTIONAL
CAPACITY **
(BTU/HR/FT)
AVERAGE
DISCHARGE AIR*
(°F)
(SEE SETPOINT
S
BELOW)
VELOCITY
(FT/MIN)
6E SS DELI 2100 32~36 125~175
END PANEL WIDTH KEY
# OF END
PNLS
END PN
L
WIDTH
(IN.)
TOTAL ADDED
LENGTH (IN.)
1 1.125 1.125
CASE LENGTH
CANOPY
LIGHTS
H.O. LED
OPTIONAL SHELF
MAX. H.O. LED
LOAD
AMPS WATTS AMPS WATTS AMPS WATTS
6E N/A N/A N/A N/A N/A N/A
CONDENSING UNIT AND EVAPORATIVE PANS
CONDENSING UNIT
OPTIONAL HIGH OUTPUT LED LIGHTS (115 VOLT)
CONTROLLER / AIR SENSOR
DEF
ROST
FRE-
QUENCY
(#/DAY)
DEF
ROST
WATER
(LBS/DAY
/FT)
SETTINGS
FAILSAFE TERM. DRIP
USAGE
SET DIFFER- DEFROST TYPE TIME TEMP TIME
POINT ENTIAL (MIN) (°F) AIR (MIN)
(°F) (°F)
TYPE 1 24 8 OFF TIME 50 6 52 NA NA
TYPE 2 23 8 OFF TIME 50 6 52 NA NA
CASE LENGTH
EVAPORATOR FANS
CANOPY LIGHT
S
LED
OPTIONAL LED
SHELF LIGHTS
MAX. LED LOAD
(W/ ALL OPTIONS)
ANTI-SWEAT
HEATERS
CONVENIENCE
OUTLETS (OPTIONAL)
# OF
EVAP
FANS
BLADE
DIA.
(IN.)
BLADE
PITCH (°)
AMPS WATTS AMPS WATTS AMPS WATTS AMPS WATTS AMPS WATTS
#
OUTLETS
VOLTS AMPS
6E 6 8 15 1.8 48 0.8 87 0.4 50 1.2 137 0.70 80 1 115 15
CASE LENGTH
EVAPORATIVE PAN EST. REFG.
CHRG. (LBS)
NOM. HP REFRIG. Hz/Ph Volts RLA VOLTS AMPS WATTS
6E 2 R-448A 60 / 1 240 19.0 208 7.2 1500 5.2
