HV Diagnostics HVA 34 - Page 14

User Manual
HV Diagnostics Page 14 Rev 9.0

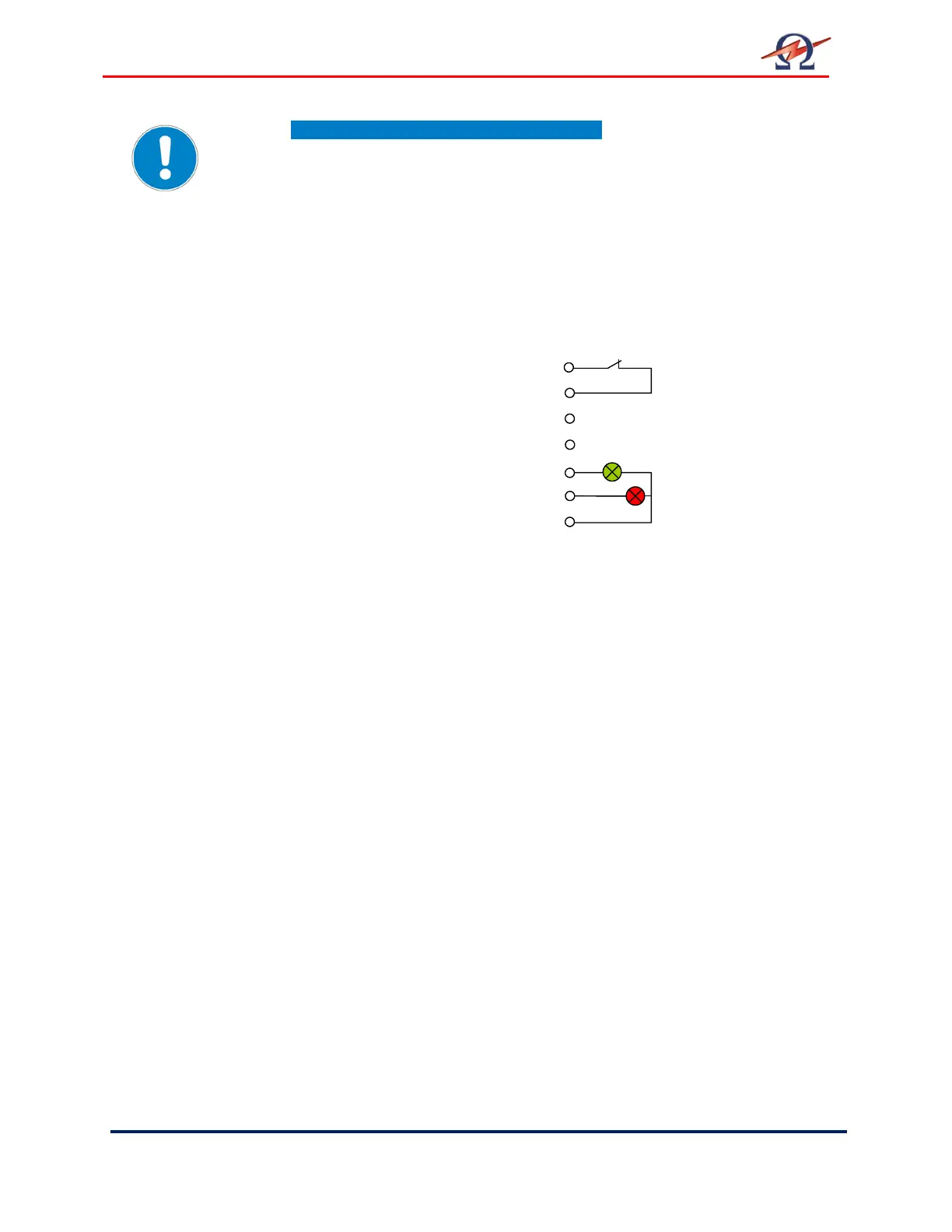

PINOUT Connection
NOTICE
Equipment Not included
Cables for remote control and external lamps are not included with the
standard issue of the HVA by HV Diagnostics! See options.
External Lamp requirements:
• Rating: Max 1.2 W
• Recommended colors: Red, Green
PIN 1: Interlock
PIN 2: Interlock
PIN 3: Not in use
PIN 4: Not in use
PIN 5: Lamp HV ON
PIN 6: Lamp HV OFF
PIN 7: Ground (GND)
1
2
3
4
5
6
7
