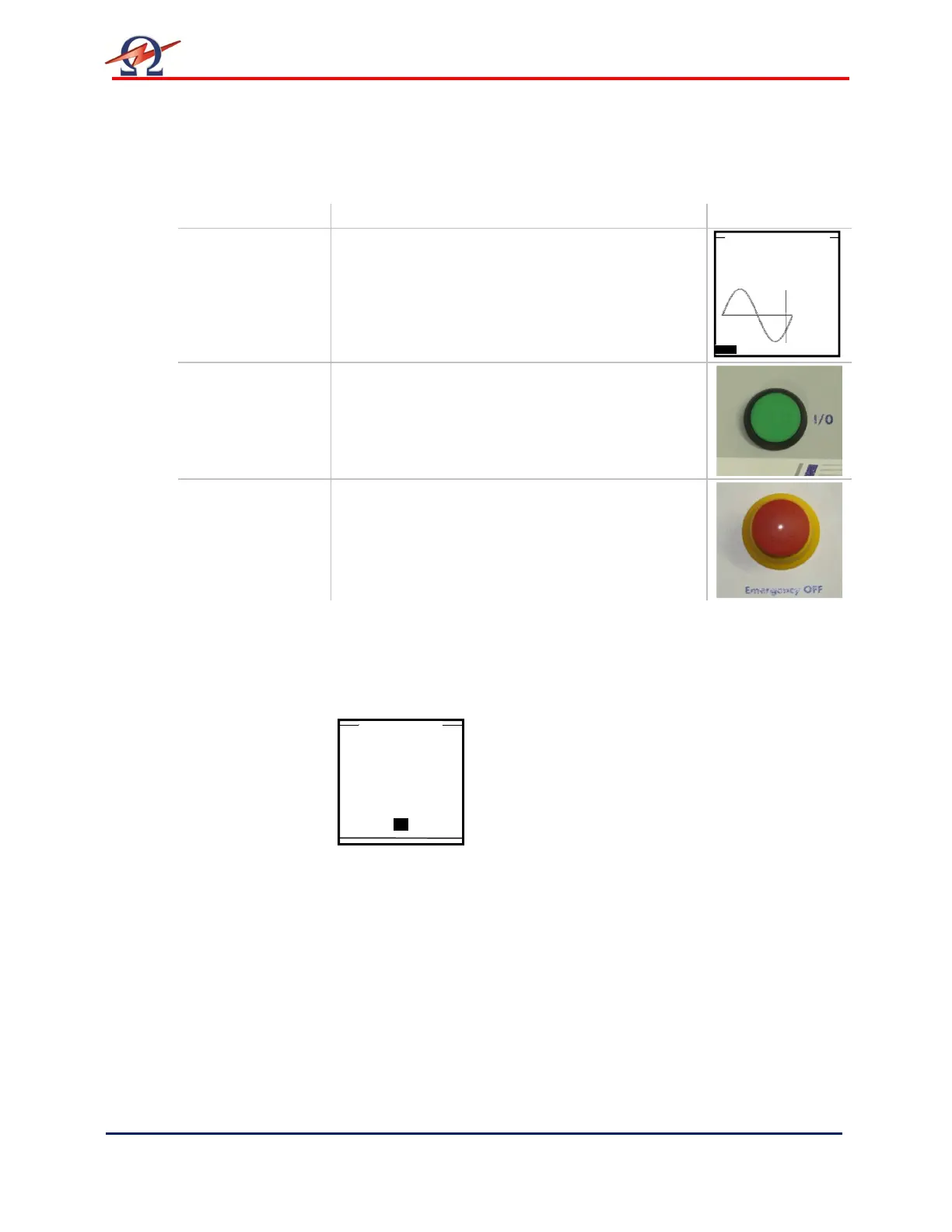

6.4 Interrupting a Test
Once a test has started, it can be interrupted at any time. It is
recommended to select the appropriate method corresponding to the
situation
Situation Procedure Example
Routine STOP
(No emergency)
When a test is in progress, “STOP” on the display
screen is highlighted.
To interrupt the test, push in / click the navigation
knob (5)
• HVA software deactivates HV
• Test stops
Alternative
When a test is in progress, press the HV switch
(6) to deactivate high voltage.
• HVA hardware deactivates HV
• Test stops
Emergency Stop In an emergency situation, press the Emergency
Off (1) to shutdown the system.
• HVA hardware deactivates HV
• Test stops
After test interruption, a message is displayed indicating that the test has
been terminated by the user:
Manual Mode Sine 0.1Hz
STOP
T: 00:58 / 1min
1
.0
kV
rms
0.1kV
0.9µA
0.4nF
13GΩ
Manual Mode Finished
Manual Mode Test Seq.
interrupted by the user at
step 1 after 58s
Sine 0.1 Hz
Test Voltage: 1.0 kVrms
OK
