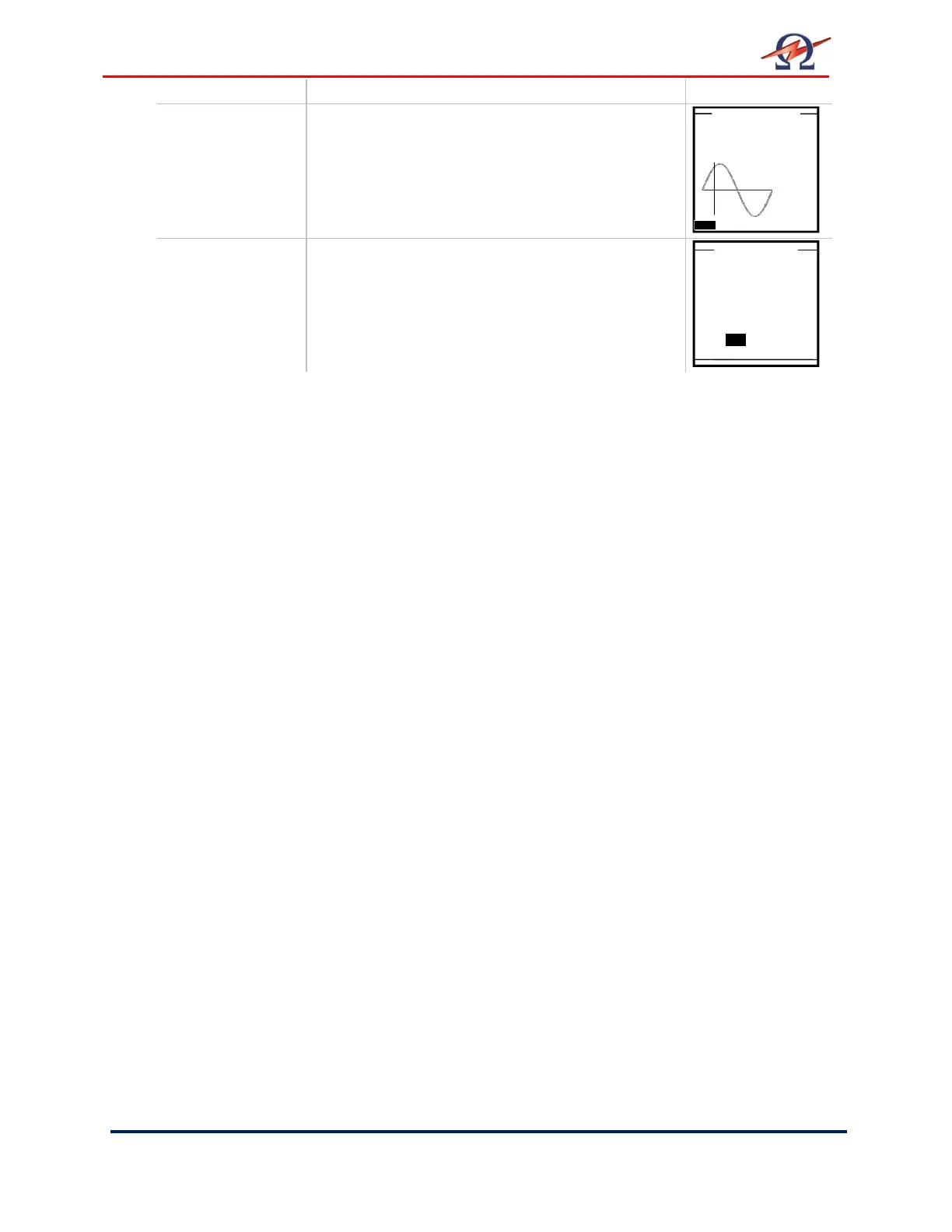

Step Procedure (Run Automatic Test ) Example
AR 8:
Test
Test begins automatically
The bottom of the screen indicates the lapsed time
• T: lapsed time / total test duration
AR 9:
Test End
Display indicates end of Auto Test
If reporting is active, the user can immediately
view the report.
Auto Test Sine 0.1Hz
STOP
T: 00:03 / 15min
1
.0
kV
rms
1.2kV
250µA
57.1nF
13GΩ
Auto Test Finished
Auto Test.
finished successfully
Sine 0.1 Hz
Test Voltage: 1.0 kVrms
Test Duration:15 min
View the report?
YES NO
