User Manual
Rev 9.0 Page 29 HV Diagnostics

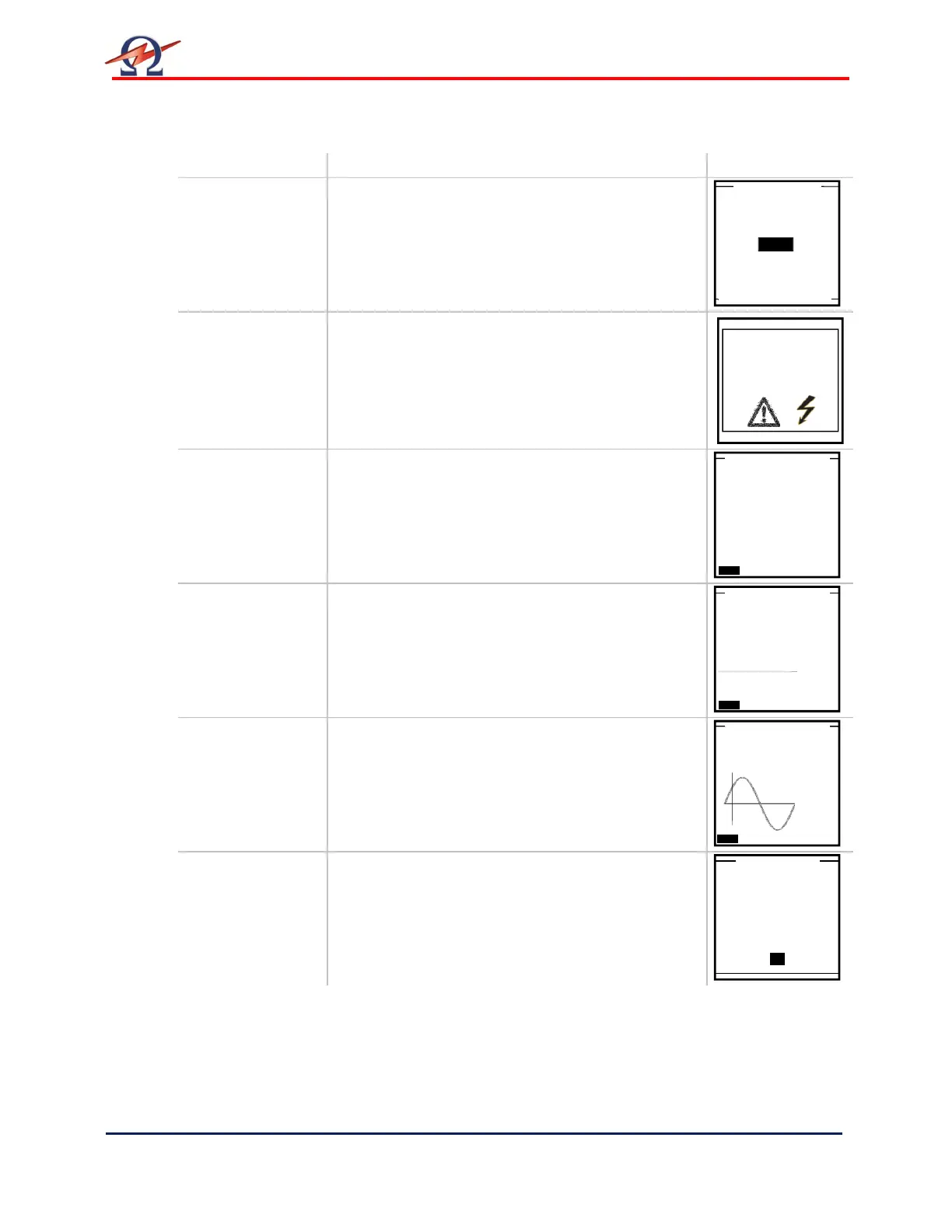

Running a Manual Test
Steps MR 1-MR 6 describe how to run a test in the manual mode.
Step Procedure (Run Manual Test) Example
MR 1:
START
Start the test when test parameters displayed on
the “Manual Test” screen are correct.
Rotate navigation knob (5) until the “START” field
is highlighted.
• To run the test, push in knob (5)
MR 2:
HV Activation
Once the activation screen appears,
• Press the HV switch (6) within 10 seconds.
If the HV switch is not activated within the 10
second window, the “Manual Mode” screen will
reappear.
MR 3:
Test Start up
“Startup” appears on the screen to indicate that the
HVA is initializing the test
MR 4:
Set Test Voltage
(if not preset in
step MS 8)
Rotate navigation knob (5) to modify the voltage
value.
• Min. test voltage = 0.0 kV
• Max. voltage = 24.0 kVrms (VLF),
34.0 kV (DC)
MR 5:
Test
Test begins automatically
The bottom of the screen indicates the lapsed time
• T: lapsed time / total test duration
MR 6:
Test End
Display indicates end of Manual Test
Manual Test Sine 0.1Hz
Timer: 15 min.
MAIN SETUP Trip out on Arc
START
0
.0
kV
rms
ATTENTION
High Voltage!
Press I/O Button to
switch ON High Voltage
Manual Mode Sine 0.1Hz
STOP
T: 00:00 / 15min
0
.0
kV
rms
0.0kV
0.0µA
Startup
Manual Mode Sine 0.1Hz
STOP
T
: 00:00 / 15min
2
4
.0
kV
rms
0.0kV
0.0µA
Manual Mode Sine 0.1Hz
STOP
T: 00:03 / 15min
2
4
.0
kV
rms
32.5kV
250µA
57.1nF
13GΩ
Manual Mode Finished
Manual Mode Test Seq.
finished successfully
Sine 0.1 Hz
Test Voltage: 23.0 kVrms
Test Duration: 15 min
OK
