Installation and Operation
HYDAC Filtertechnik GmbH
en
Page 19
BeWa CS1000 3247149k en.doc 2006-04-06
6 Installation
For operation the CS must be hydraulically (see section 6.3) and electrically (see section 6.4)
installed.
6.1 Unpacking
The CS comes packed in a cardboard box.
Unpack the unit and check it for damage in transit. Report any damage to the forwarding
agent immediately. Check for scope of delivery, see section 4.
6.2 Mechanical Mounting
The CS 1000 can be installed in any position. When selecting the installation site, check
compatibility with the specified ambient data of the CS like the temperature, dust, water or
moisture. The CS features a protection rating of IP 67 according to DIN 40050 / EN60529 /
IEC 529 / VDE 0470.

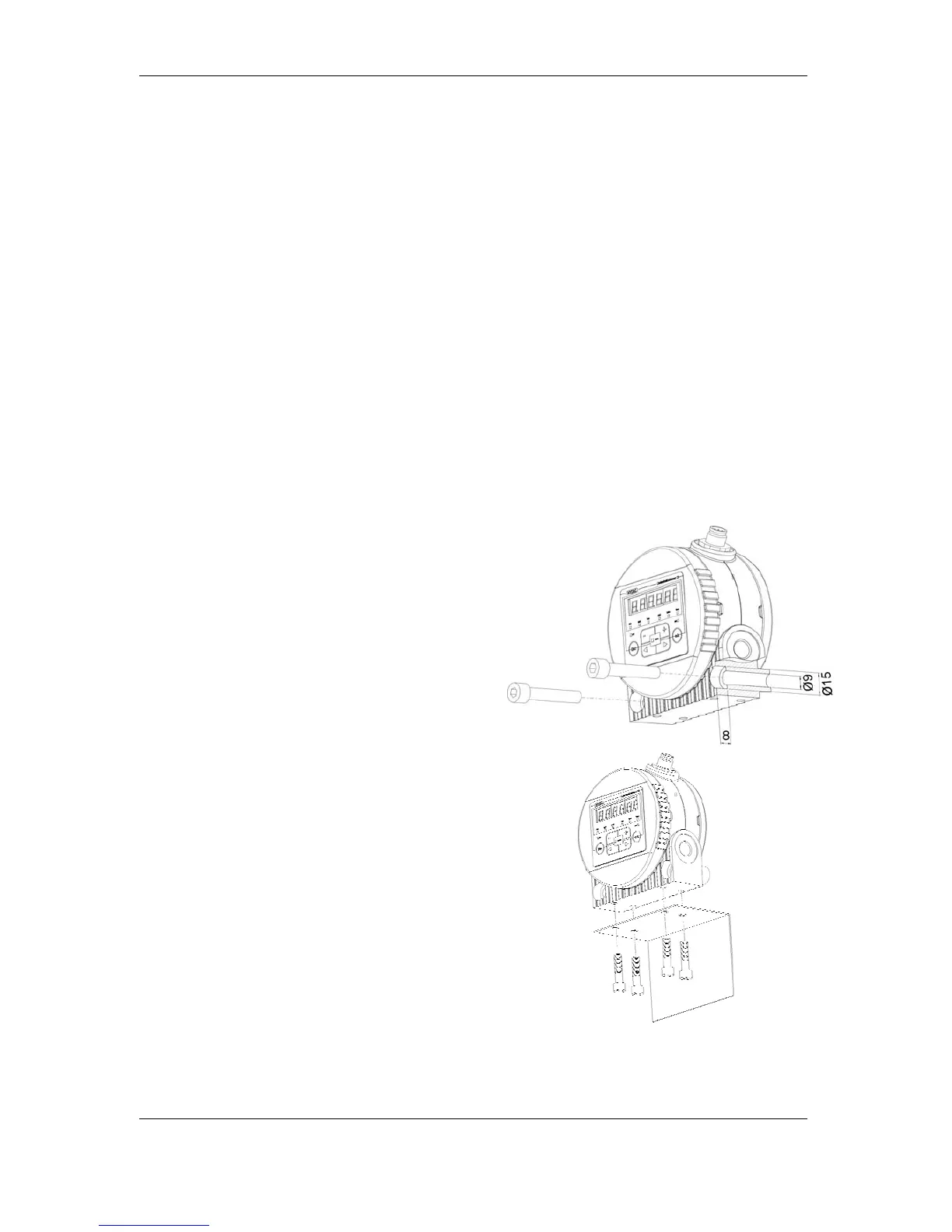

Depending on the respective model, the CS 1000 can be mounted as follows:
1.
Wall mounting: using 2 cylindrical screws
featuring an M8 hexagonal socket, minimum
length: 40 mm, according to ISO4762.
2.
Console mounting: using 4 cylindrical screws
featuring an M6 hexagonal socket according
to ISO4762.
