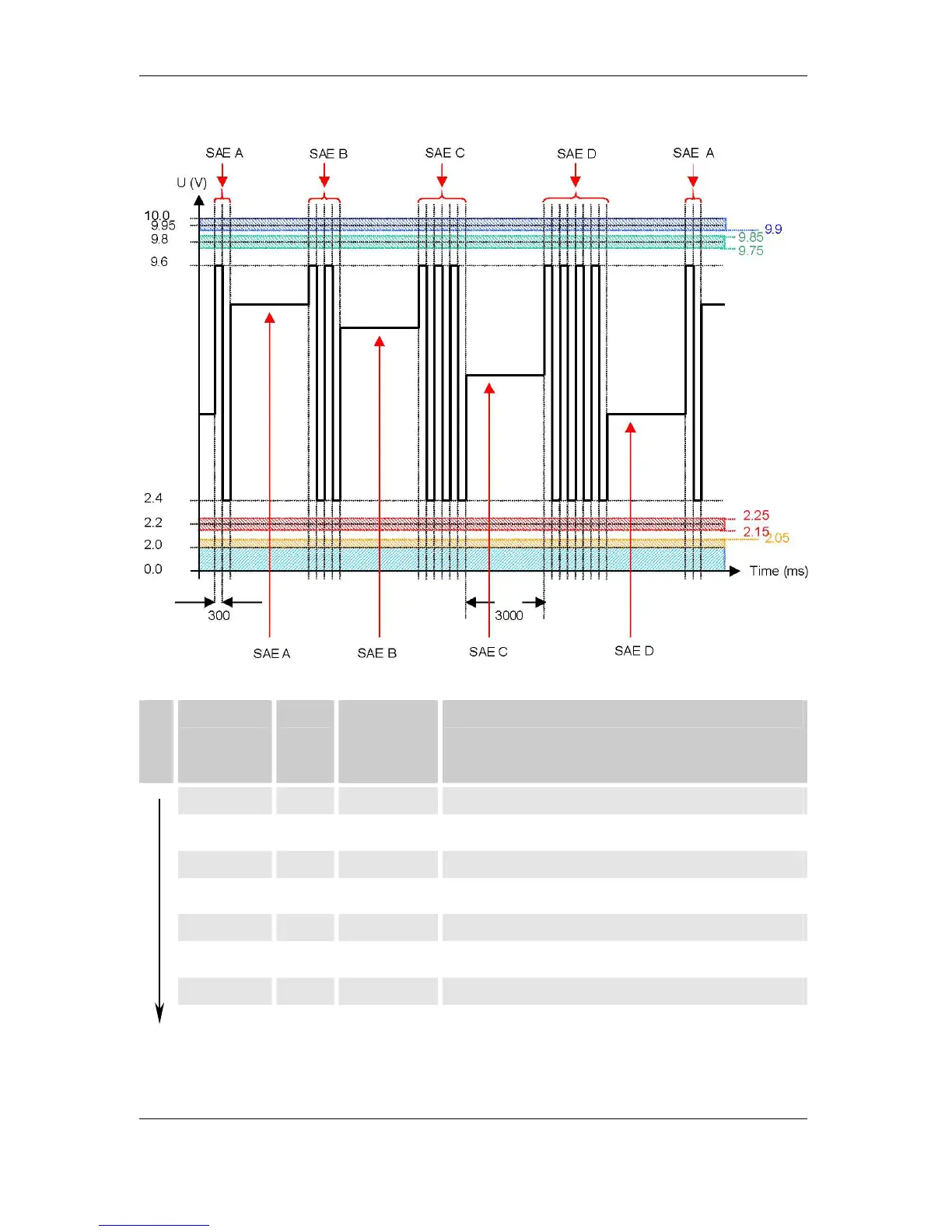

9.1.3.1.2 0 – 10 V Signal
Identifier Identifier Identifier Identifier Identifer
Measured Measured Measured Measured
value value value value
Time
Size Signal
duration per
pulse
in ms
Voltage in V
Identifier A 300 9.6 / 2.4
Measured value
A 3000 Voltage for measured value (see Table 9.1.1)
Identifier B 300 9.6 / 2.4 / 9.6 / 2.4
Measured value
B 3000 Voltage for measured value (see Table 9.1.1)
Identifier C 300 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4
Measured value
C 3000 Voltage for measured value (see Table 9.1.1)
Identifier D 300 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4 / 9.6 / 2.4
Measured value
D 3000 Voltage for measured value (see Table 9.1.1)
