Installation and Operation
HYDAC Filtertechnik GmbH
en
Page 21
BeWa CS1000 3247149k en.doc 2006-04-06
6.3 Hydraulic Installation
The direction of flow through the CS1000 is arbitrary. Use one connection port as the INLET
port and the other as the OUTLET port.
Depending on how the CS is ordered, it features the following hydraulic connection options:
- Pipe/hose connection: The CS is connected to the hydraulic system via ports A and B
using a pipe or hose. (see section 5.2)
- Flange connection: The CS is screwed to a flange, mounting plate, manifold mount or
control block, with flow being effected through the unit via port C and D on the underside.
Determine the system pressure of the hydraulic system and see whether it is within the
permissible range for the INLET port.
The pressure in the measurement cell may not exceed 100 bar.

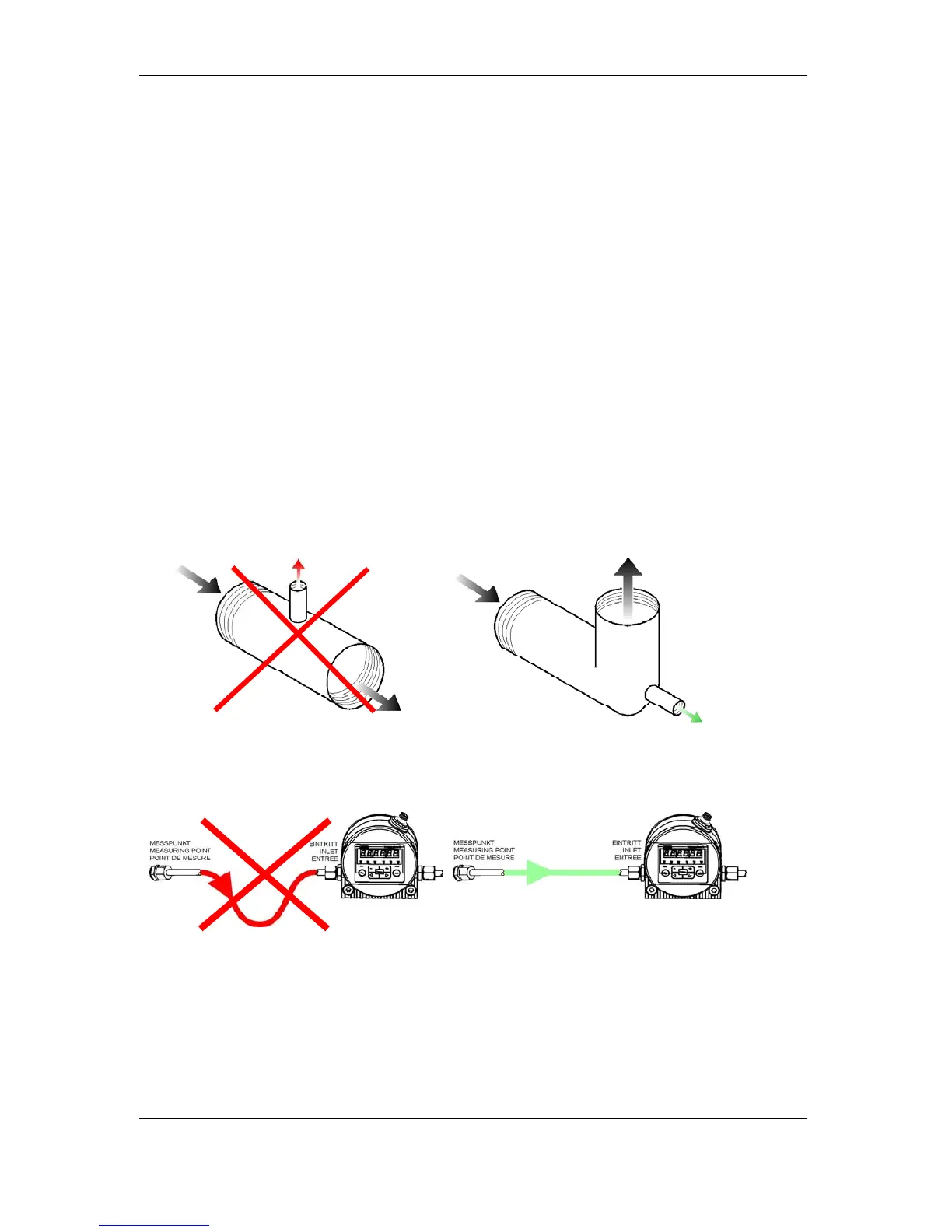

6.3.1 Selection Guidelines for a Measurement Point
The measurement point has to be selected so that the measured volume is taken from a
turbulent flow area, i.e. a pipe bend.
The CS has to be installed in the vicinity of the measurement point in order to prevent
sedimentation (formation of particle deposits) in the inlet line and achieve immediate, i.e. not
time-delayed, results.
Mainflow
Mainflow
to CS
Mainflow
Mainflow
to CS
WRONG OK
While installing the measurement line, make sure that no "siphon trap" is created.
WRONG OK
