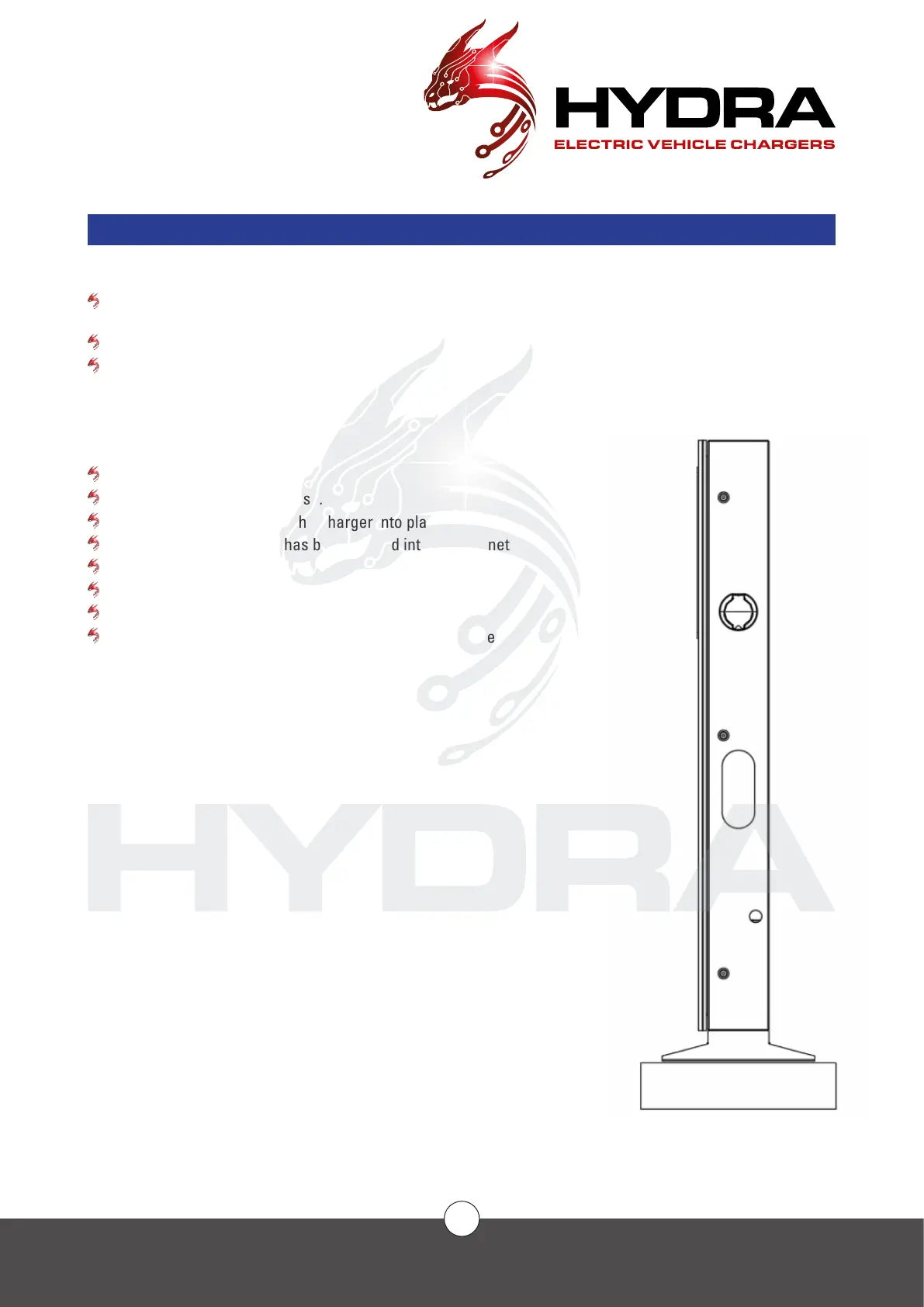

INSTALLATION
CABINET INSTALLATION INSTRUCTIONS
TRANSFER LOADING AND UNLOADING
Lifting and moving the charger must be carried out by trade professionals using a dedicated load-bearing
forklift/crane or other professional load-bearing transfer device.
Do not drop or hit the device.
Move the equipment to a pre-made concrete base and lift the charger into place with a lifting device.
INSTALLATION
Place the cabinet on the base
Secure the cabinet to the base.
Carefully and slowly lower the charger into place.
Make sure that the cable has been passed into the cabinet along the seal sleeve.
Ensure that the cabinet holes and bolts are aligned.
Insert at washers, gaskets and nuts at the four corners and front and rear sides.
Lock these nuts to 95.5 Nm.
Keep the device upright – do not tilt more than ±15 degrees.
